Specifications
Brand Name :
WENYAO
Model Number :
WYB1
Certification :
CE & ISO9001
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Month
Delivery Time :
7-10 work days
Packaging Details :
Plywood case package
Name :
Minerals/Ore/Sand/Powder color sorter machine
chutes :
1
Channels :
64
Sorting accuracy(%) :
≥99.9
Remote :
Wifi remote control
CCD :
Toshiba
Camera :
RGB camera
Certificate :
CE & ISO9001
Lamp source :
LED variable light
Application :
Mineral sorting
Hopper :
Stainless 304 food grade
Warranty :
2 years
Type :
New
Throughput :
1-2t/h
Description

Mini Small Minerals/Ore/Sand/Powder color sorter machine

When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.

Technical Parameters:

MODEL WYB1
Chutes/Channels 1/64
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.9%
Power 1.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 450kg
Diamension(L*W*H) 2450*1010*1539mm

Throughtput:Different impurity with different throughput.

color sorter working principle:

Mini Minerals Sand Powder Ore Color Sorter Automatic Computing

Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

​

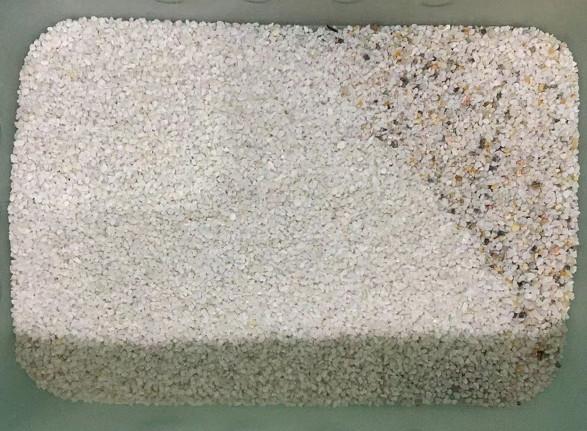

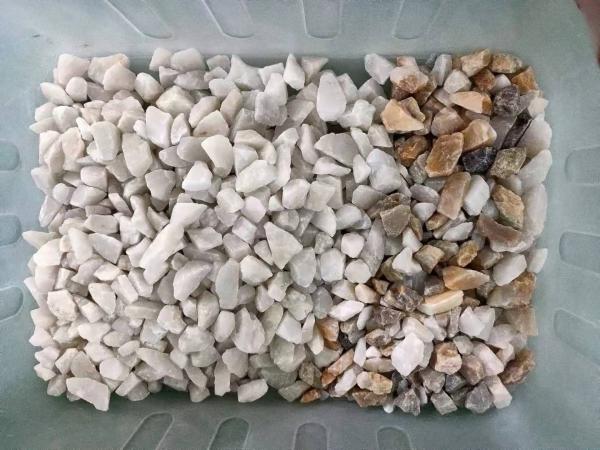

Examples of mineral color sorting:

Mini Minerals Sand Powder Ore Color Sorter Automatic Computing

Mini Minerals Sand Powder Ore Color Sorter Automatic Computing
