Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Super dielectric performance epoxy resin compound for making durable insulators
Specifications
Brand Name :
wenyou
Model Number :
9202
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
insulators, dry-type transformers, and other insulation products.
Application :
Indoor electrical insulators for medium and high voltage applications
Epoxy vlue :
4.5 - 5.0Eq/kg
Viscosity at 25°C :
7000 - 10000mPa.s
Density at 25°C :
1.16 - 1.20g/cm3
Vapor Pressure at 25°C :
< 0.01Pa
Flash point :
around 130°C
Discription :
Super dielectric performance epoxy resin compound for making durable insulators
Description

Brief Introduction

LE-9205 is a liquid solvent-free saturated cyclic epoxy resin.

LH-9205 is a liquid modified carboxylic anhydride hardener with an added accelerator.

LF-660 is a low-viscosity solvent-free modified polyol.

LZ-630 is a modified tert-butylamine.

Super dielectric performance epoxy resin compound for making durable insulators

Applications

Indoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Excellent resistance to thermal shock, superior mechanical and dielectric properties.

Formulation

Epoxy resin LE-9202 100 pbw
Hardener LH-9202 100 pbw
Flexibilizer LF-660 0-20 pbw
Accelerator LZ-630 0.2-1.0 pbw
Filler Silica powder 350-480 pbw
Color paste LC series* 3 pbw

Advantage

Super dielectric performance epoxy resin compound for making durable insulators

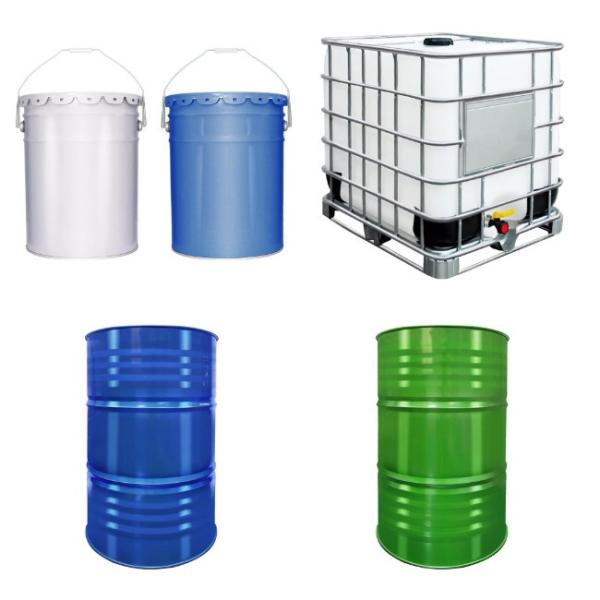

Package Image

Super dielectric performance epoxy resin compound for making durable insulators

Shipment image

Super dielectric performance epoxy resin compound for making durable insulators

Example application image

Super dielectric performance epoxy resin compound for making durable insulators
