Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Specifications
Brand Name :
wenyou
Model Number :
LW-9228A/B
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
12-40.5kV insulation components, transformers, current transformers, dry-type transformers, and other insulation products.
Application :
Indoor electrical insulators for medium and high voltage applications
Appearance of epoxy resin :
White viscous liquid
Viscosity at 25°C :
16000 - 350000mPa.s
Density at 25°C :
1.60 - 1.70g/cm3
Vapor Pressure at 25°C :
≤ 0.01Pa
Flash point :
> 150°C
Discription :
Hot sales APG injection epoxy resin liquid for Indoor application current transformers
Description

Brief Introduction

LW-9228A/LW-9228B is a two-component indoor epoxy resin system with pre-mixed fillers.

LW-9228A is a bisphenol A type epoxy resin component, and LW-9228B is an anhydride-type curing agent.

Hot sales APG injection epoxy resin liquid for Indoor application current transformers

Applications

Indoor electrical insulators for medium and high voltage applications, such as 12-40.5kV insulation components, transformers, current transformers, dry-type transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Excellent UV resistance, excellent resistance to thermal shock, and superior mechanical and dielectric properties.

Formulation

Epoxy resin LW-9228A 100 pbw
Hardener LW-9228B 100 pbw
Color paste LC series * 3 pbw

Advantage

Hot sales APG injection epoxy resin liquid for Indoor application current transformers

Package Image

Hot sales APG injection epoxy resin liquid for Indoor application current transformers

Shipment image

Hot sales APG injection epoxy resin liquid for Indoor application current transformers

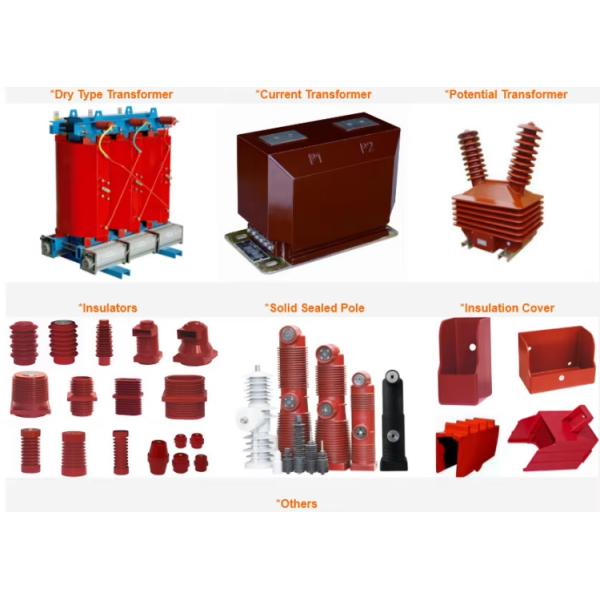

Example application image

Hot sales APG injection epoxy resin liquid for Indoor application current transformers
