Specifications
Brand Name :
wenyou
Model Number :
9205D
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
insulators, dry-type transformers, and other insulation products.
Application :
Electrical insulators for medium and high voltage applications

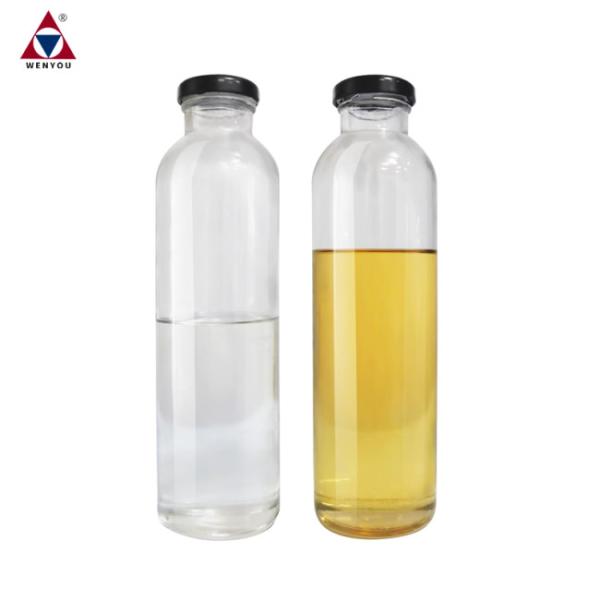

Appearance of epoxy resin :
Transparent viscous liquid
Viscosity at 25°C :
2000 - 4000mPa.s
Density at 25°C :
1.16 - 1.20g/cm3
Vapor Pressure at 25°C :
＜ 0.01Pa
Flash point :
around 135°C
Epoxy Value :
4.3 - 4.8Eq/kg
Discription :
epoxy resin and curing agent for vacuum casting Indoor composite transformer
Description

Brief Introduction

LE-9205D is a modified BPA (bisphenol A) type epoxy resin.

LH-9205D is a modified carboxylic anhydride hardener with an added accelerator.

LF-660 is a low-viscosity solvent-free modified polyol.

epoxy resin and curing agent for vacuum casting Indoor composite transformer

Applications

Indoor electrical insulators for medium and high voltage applications, such as insulators, dry-type transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Excellent resistance to thermal shock, superior mechanical and dielectric properties.

Formulation

Epoxy resin LE-9205D 100 pbw
Hardener LH-9205D 85 pbw
Flexbilizer LF-660 0-10 pbw
Filler Silica powder 340-400 pbw
Color paste LC series * 3 pbw

Advantage

epoxy resin and curing agent for vacuum casting Indoor composite transformer

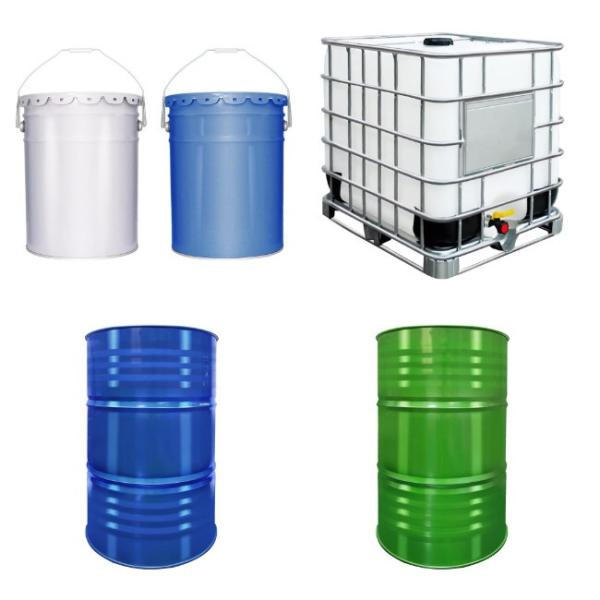

Package Image

epoxy resin and curing agent for vacuum casting Indoor composite transformer

Shipment image

epoxy resin and curing agent for vacuum casting Indoor composite transformer

Example application image

epoxy resin and curing agent for vacuum casting Indoor composite transformer
