Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
Specifications
Brand Name :
wenyou
Model Number :
9214G
Certification :
ISO9001, ISO14001, SGS, and UL
Place of Origin :
China
MOQ :
20kg/pail as sample
Price :
Negotiable
Payment Terms :
Normally T/T, L/C
Supply Ability :
Plenty of raw material in stock
Delivery Time :
7 -10 work days
Packaging Details :
20kg/pail, 220kg/barrel, 1200kg/tank
Classification :
Double Components Adhesives
Usage :
insulators, transformers, and other insulation products
Application :
Indoor electrical insulators for medium and high voltage applications
Appearance of epoxy resin :
Transparent viscous liquid
Viscosity at 25°C :
9000 - 14500mPa.s
Density at 25°C :
1.16 - 1.20g/cm3
Vapor Pressure at 25°C :
＜ 0.01Pa
Flash point :
around 135°C
Epoxy Value :
4.0 - 4.5Eq/kg
Discription :
Indoor electrical insulators casting resina epoxica liquid epoxy resin
Description

Brief Introduction

Indoor electrical insulators casting resina epoxica liquid epoxy resin

LE-9214G is a modified BPA (bisphenol A) type epoxy resin.
LH-9214G is a liquid modified carboxylic anhydride hardener.

Applications

Indoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.
Automatic pressure gelation process (APG).
Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.
Excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.

Formulation

Epoxy resin LE-9214G 100 pbw
Hardener LH-9214G 100 pbw
Filler Silica powder 270-300 pbw
Color paste LC series * 3 pbw

Advantage

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density

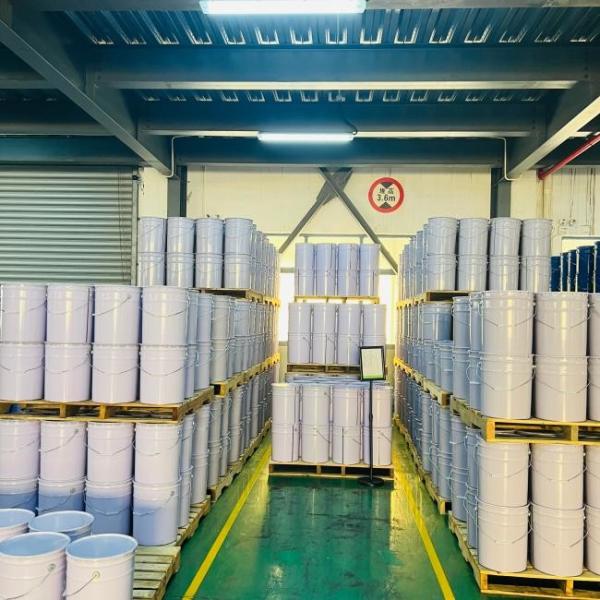

Package Image

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density

Shipment image

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density

Example application image

Indoor Electrical Insulators Casting Liquid Epoxy Resin 1.20g/cm3 Density
