MAIN FUNCTIONS

The machine is designed and made to high quality and safety standard, stable and consistency high printing quality maximize the production efficiency.

The main motor, suction blower is adopted frequency control, which is variable by speed.

Folder Gluer Inline Control, the main function can be adjusted by data input or order management system.

High speed inline top flexo print case maker with down folding provides a complete carton boxes producing solutions.

Can easy match with Pre-feeder or Automatic Strapping Machine.

Max. Speed: 350sheets/min.

All computerized control with memory of 1000 orders.

Ink shortage alarm device with auto feeding.

All unit adopt oil balance control system by separation device. Fine fault alarm prompts. Electrical box air conditioning constant temperature system.

Units are auto Zero reset.

Breakdown and alarm malfunction system, Main Motor With Start Delay Protection Function. If Not All the Units Locked Well, the Main Motor Will Not Work.

Model

Unit

0920

0924

1224

1228

1628

Max.Speed

sheets/min

350

350

250

250

200

Max.Size(FxA)

mm

900x2100

900x2500

1200x2500

1200x2900

1600x2900

Min.Size of Folder Gluer(FxA)

mm

280x760

280x760

310x760

310x760

400x780

Max.Size (B+C)

mm

1030

1200

1200

1400

1400

Min.Size (B+C)

mm

360

360

360

360

360

Max.Size (B+D)

mm

1050

1050

1050

1050

1050

MAIN PARAMETERS

Model Parameters (MM)

0920

1224

Max.Sheet Size (FxA)

890x2000

1190x2400

Skip Feed Size (FxA)

1200x2000

1400x2400

Min.Sheet Size (FxA)

280x780

380x780

Max.Printing Area (FxA)

890x2360

1190x2360

Top Speed (Sheet/min)

300

250

Economic Speed (sheet/min)

120-250

120-200

Max. Slot Depth Size

300

300

Min. Box Height Size (E)

110

110

Max. Die-Cutting Area (FxA)

850x2350

1150x2350

(Max. size) (B+C)

≤980 mm

≤1180 mm

(Min. size) (B+C)

≥370mm

≥380mm

(Max. size) (B)

880mm

1030mm

(Min. size) (B)

270mm

280mm

(Max. size) (C)

710mm

900mm

(Min. size) (C)

100mm

100mm

(Glue Flap Width) (D)

≤40mm

≤40mm

Sheet Thickness

1.5-11

1.5-11

Printing Plate Thickness (Sponge + Film + Plate)

7.2

7.2

Main Working Power (KW)

Flexo Printer + Inline

70+40

70+40

Total Power(KW)

Flexo Printer + Inline

100+51

100+51

Dimension (mm)

Flexo Printer

10500x5000x2530

10500x5200x2630

Inline Folder Gluer

14300x2500x2650

14300x2600x2650

Frame Thickness

Flexo Printer

60mm

60mm

Folder Gluer

40mm

40mm

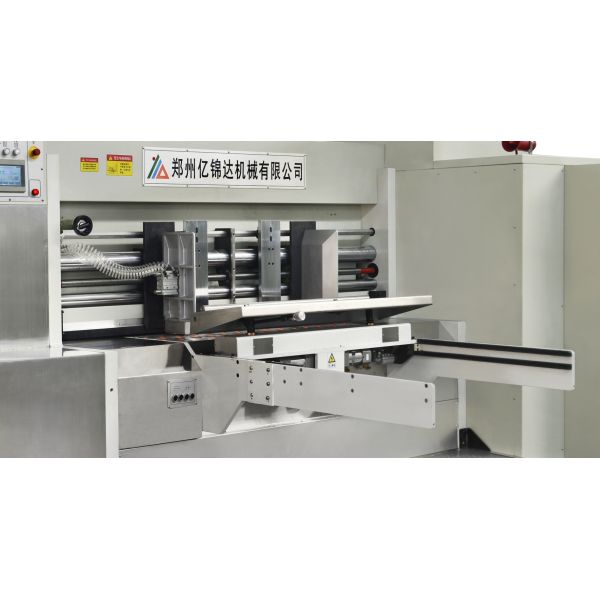

FEEDING UNIT

The Central Console is adopted to Windows system for easily operating.Feeding gaps adjustment are computerized control with screen display

Auto zero-set for feeding position to reduce adjusting time.

Servo Control Non-crush Feeding System as optional.

Feeding volume is frequency control and can be adjusted according to cardboard size.

Main motor,suction blower and dust suction are frequency control.

The speed can be adjust freely with synchronous belt drive.

For example as 1224 model Lead Edge Feeder equipped with 4 axis for transmission.

The extension dust removing system with 4 blower fans, 2 brushes, and anti-static system optional.

The permanent magnet fan frequency conversion controls the vacuum air flow and pressure, which can adapt to different cardboard specifications, save energy and reduce noise

PRINTING UNIT

Vacuum Transfer System can adjust Air-Volume automatically according to cardboard size.

The clearance of each pressure wheel is adjusted by computer setting.

Reel hanging plate, ratchet locking device to make sure hanging plate alignment is more accurate.

The anilox roller can be automatically lifted and lowered sequentially with the paper feeding system (the doctor blade system can be configured as optional).

Ink shortage will automatically alarm and stop feeding paper to avoid damage to the rubber roller and anilox roller.


Printing Register is by servo control,Ratchet can be adjusted quickly.

Cardboard transmission situation can be checked by the Central computer

Auto zero- set for printing position.

SLOTTING UNIT

8 Shaft Transmissions, Pre-creasing, Big and Small Creasing, Single Shaft Slotting or Pre-creasing, Creasing, Dual Slotting is Optional.

Linear Guiding structure combined with Ball Screw for Transverse adjustment to make sure accurate knife fitting, stable movement.

Transverse, Box Height, Gaps adopts computerized or motorized adjusted. Slotting Register is Servo Control, more precision.

Elastic Corner Cutter Structure to suitable for different thickness cardboard.

Frequency adjust the slotting knife which is more accuracy and stable.

The lower corner cutter can be rotated to protect the upper corner cutter, and ensure the stitching flap can be cut off.

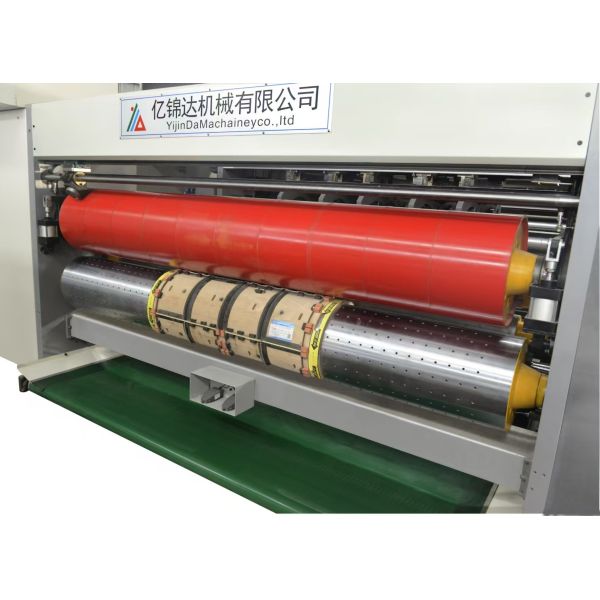

DIE CUTTING UNIT

Independent Frequency Motor for Line Speed Compensation

Servo independent drive is optional

Die-cutting Register servo control.

Line speed compensation frequency control.

With automatic grinding device

Auto zero- set for die cutting position.
