Basic Info.
Type
Fixed Fire Extinguishing Device
Portable Extinguisher
Fixed
Effective Range
Total Flooding
Dry Powder Type
Nano Particles
Power Source
Chemical Reaction Fire Extinguisher
Effective Protected Enclosure
1.5m³
Thermal Clearance
≤75ºC at The Point 400mm From Nozzle
Relative Humidity
≤95%(40±2ºC)
Product Description
Ferosol Series of Westpeace Fire Investment Holdings Ltd is a unique fire extinguishing device that would work both independently with JR11 Thermal Activation Generator and in a fire system. This product offers a wide range of application including total flooding and direct to source suppression. The fire is suppressed simultaneously and effectively by the approved Ferosol generator activated by built-in JR09 controller. By means of combination the Ferosol Series is more effectively and efficiently. Low weight and low required space as well as easy installation enable the customer high flexibility and perfect integration by using different application fields to suppress the fire.

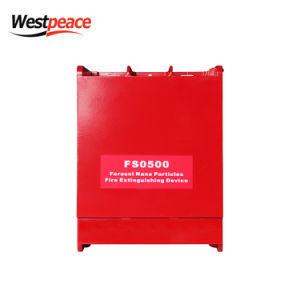

FS0500 ferosol fire extinguishing device is the first of its kind in China, represents a state-of-the-art efficient green fire extinguishing product in the world. Featuring small size, simple operation and none pressurized container, FS0500 fixed fire extinguishing device requires no pipe network installation and maintenance. It consists of new extinguishing compound which is more efficient, non-toxic, safe, reliable, environment friendly and pollution free. It's an ideal substitute for Halon fire extinguishers.
SPECIFICATIONS |
Dimensions: | 194mm (L) x 186mm (W) x 282mm (H) |
Total Weight: | 6.5kg |
Discharge Duration: | ≤14s |
Protected Volume: | 10 m3 |
Agent Mass | 540g |
SYSTEM SPECIFIC DATA |
Standard activate temperature (by leaner heat cable): | 70ºC, 85ºC, 105ºC (further temperature range on request) |
Ignition time: | Within 1s after triggering of the thermistor |
Storage: | Cool and dry condition |
Operating ambient temperature: | -30ºC ~ +70ºC |
Fire class: | A(limited), B and C |
Product Standard Manufacture Warranty: | 1 year |
Service Life Years (Normal Environment): | 6 years |
Service Lige Years (Aggressive Environment): | 3 years |
Features:Superior extinguishing performance
Compact design, easy installation and maintenance.
Multiply application
Wide Range of set temperatures variant with external linear heat cable, 70ºC/85ºC/105ºC
No pressure storage, no pipe working
Automatic and Manual Operation with necessary accessories.
Application:FS0500 ferosol fire extinguishing device is suitable for extinguishing fires in following large and medium volumetric enclosures:computer rooms, substations/distribution rooms, generator rooms, cable pits, cable trenches and etc.
About USWestpeace is a new and high-tech company dedicated to R&D,production and marketing of fire protection products which specializes in providing fire protection system solutions.Westpeace has a large number of experts and professionals in fire protection industry, and has a dedicated research team of 56 persons including 5 PHDs, 13 Masters, and 38 Bachelors Westpeace has self-developed "NANO particles fire extinguishing technology" . This technology is not an improvement of current fire extinguishing technology, but rather a brand new fire extinguishing theory, under which 8 products have been launched with hundreds of patents.
Westpeace's Nano particles fire extinguishing products have been distributed to about a dozen of countries around the world including UK, France, Denmark, Netherlands, Greece, Sweden, Turkey, Mexico, Argentina, Brazil, Ukraine, Iraq, UAE, Nigeria, Bangladesh, Malaysia, Burma, Vietnam, USA, Indonesia, Thailand, Iran, Bahrain and India etc... and have been applied in thousands of projects.
