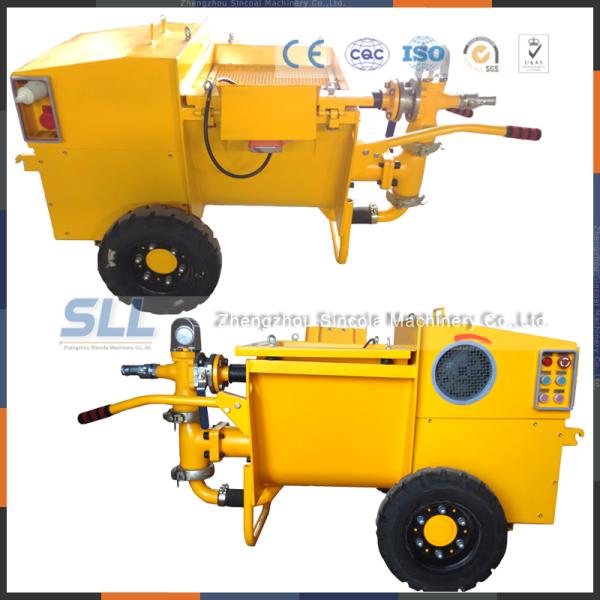

Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge
Specifications
Brand Name :
Sincola
Model Number :
SG5040
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set per month
Delivery Time :
7-10 work days
Packaging Details :
Wooden case packing
Name :
Cement mortar pump
Output :
50L/min
Cylinder :
1
Power :
5.5kw
Max.Aggregate.size :
6mm
Pressure :
4Mpa
Description

Electric Mini Piston Cement Mortar Transfer Pump 50L/min Mortar Pumping Machine

Description

SG5040 mortar pump used for aggregate size less than 6mm pre-mixing mortar and site mixing mortar conveying and spraying. It can spray evenly, continuously and efficiently. It has high cost performance, strong reliability, low wear of piston and long service life. It is equipped with continuous mixer, can achieve continual operation. It can be used in the building, the external wall spray plaster, used in road and bridge, tunnel, water conservancy, underground engineering pore pressure grouting.

It is also ideal equipment applied in spraying. It is widely used for grouting in mine gallery, rail and road tunnel, hydropower construction, slope consolidation, underground engineering, subway and civil engineering etc.

Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge

Technology Parameter

Item SG50-40
Cylinder Dia φ90 mm
Output 50 L/min
Pressure 4 Mpa(40bar, 580psi)
Piston stroke 85 mm
Piston Speed 95 /min
Inlet diameter 75 mm
Outlet diameter 50 mm
Max.Aggregate.size 5 mm
Cement : Sand ≥1:3
Dimensions 1610×1024×900 mm
Weight 300 kg
Power unit 5.5 kW(Electric)/10hp(Diesel)
Note: Single or Double Passageway.Skid or Tyre

Electric Mini Piston Cement Mortar Pump Machine 4Mpa Pressure For Road And Bridge

About us

Zhengzhou Sincola Machinery Co.,Ltd is a stated- designated manufacturer and exporter of road and building construction machineries. We are the one of the big manufacturer and supplierin China .
Our products are Shotcrete machinery and Concrete Pump,Plaster Machine,Mortar Pump,Spraying Machine,Industrial Hose Pume,Grouting Pump,Automatic rendering machine. Also we are the manufactur,supplier and exporter of semi-automatic and full-automatic dry motar mixing plants.large and medium size of concrete mixing plants.
