High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
Specifications
Brand Name :
Sincola
Model Number :
SSJ-A1
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set per month
Delivery Time :
7-10 work days
Packaging Details :
wooden case paxking
Use :
Wire Saw Cutting Machine
Type :
granite wire saw cutting machine
Keyword :
wire saw machine
Product name :
Diamond wire saw machine
Function :
cutting stones
Service :
OEM & ODM on Diamond wire saw/diamond wire/ diamond wire saw rope
Description

High Precision Stone Marble Granite Diamond Wire Saw Cutting Machine

Wire Saw Cutting Machine For Quarry Features
Double frequency converters ensure automaticlly adjustment of moving speed, in order to keep the wire be in the best working condition.
No need to distinguish or change the power phase, the machine has over-load protection, lacking phas protection and terminal limit protection.
The lateral moving and the rotation of head are controlled by electric motor, Photoelectric proximity switch installed on the head for limitation protection.
Control platform display the key parameters such as the main motor set current, rotation speed of main motor, etc.
Two operating mode, manul and automatic, can be shifted . One person can take care of several machines.

(1) Advanced technology design and manufacturing, mining for granite, marble, sandstone.
(2) Adjustment of the head and rotation electric control high degree of automation.
(3) High-performance inverter output torque constant. The constant tension control theory, according to the cutting force changes automatically adjust the feed speed of the adjustment process is stable and reliable, to ensure the best cutting state.
(4) Console using the intelligent instrument control, real-time sworn the main motor current, travel speed and cutting time and other parameters, easy to control.

Technical Parameters

Model SLL-55-3 SLL-75-3
Main motor power 55KW 75KW
Main pulley dia. 800mm 900mm
Wire saw speed 0-40m/s 0-40m/s
Walking motor power 1.5KW 1.5KW
Leteral moving distance 400mm 400mm
Max.cutting distance 1750mm 1750mm
Rotation angle 270 270
Walking Speed of machine 0-40m/s 0-40m/s
Allowed working temperature -15℃---40℃ -15℃---40℃
Dimention: L*W*H 2156*1468*1620 2156*1468*1620
Net weight kg 3300kg 3500kg

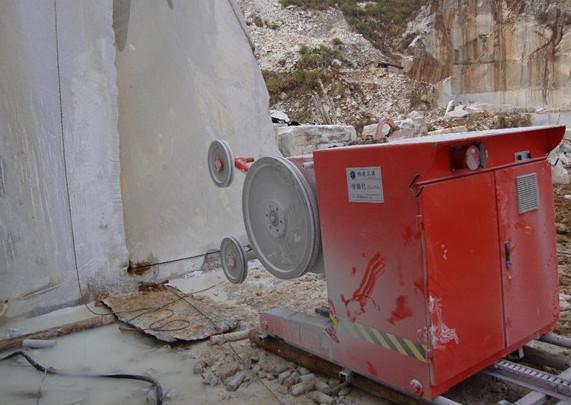

The wire saw can apply horizontal,bertical and acclivitous and other direction cutting in the quarry.Diamond wire saw can exploit large specification and regular blocks,the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition,and increase the safety factor.

High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine

High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine

High Precision Wire Saw Machine , Stones Cutting Diamond Wire Cutting Machine
