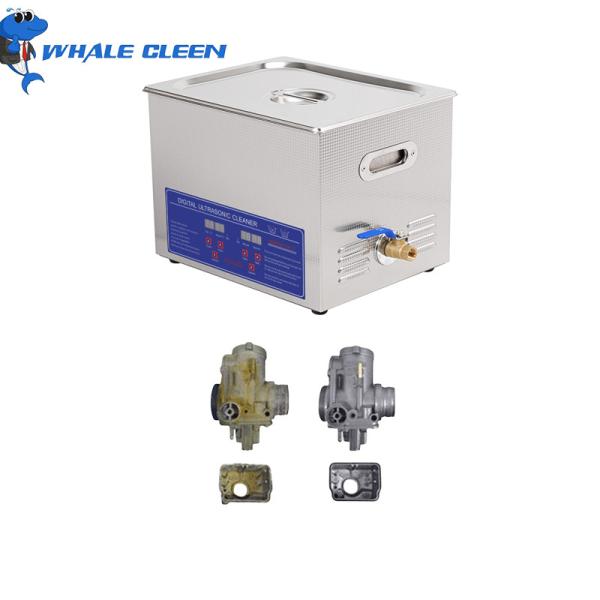

10L 240W Ultrasonic Carburetor Cleaner For Motorbike With Digital Control
How Whale Cleen Ultrasonic Carburetor Cleaner Works?
What actually happens is a phenomenon knows as “cavitation.” Cavitation is the rapid formation and collapse of microscopic vacuum bubbles in a liquid caused by the previously mentioned sound waves.
When the sound waves shove these vacuum bubbles against the surface of the object being cleaned, they collapse. This collapse produces a lot of energy as the surrounding cleaning fluid rushes to fill the space the vacuum bubble once occupied. This results in a very powerful scrubbing action.
The scrubbing power is not only strong, but also very precise. Keep in mind these vacuum bubbles are microscopic! That means that your parts will be cleaned at a microscopic level, leaving them as pristine as they could possibly be. This is why ultrasonic cleaning is so popular in the medical and manufacturing industry, where even minute amounts of soil could have a huge impact.
Specification Of Z-S04:
Model | Z-S04 |
Ultrasonic Frequency | 40,000 Hz |
Tank Material | SUS304 |
Tank Capacity | 10 L |
Timer | 1-30minutes ,Digital timer |
Power Supply | AC 100 ~ 120V, 50 / 60Hz AC 220 ~ 240V, 50 / 60 Hz |
Ultrasonic Power | 240W |
Heating Power | 300 W , Digital Heating |
Unit Size | 325x265x280 mm ( L x W x H ) |
Tank Size | 300x240x150 mm ( L x W x H ) |
Package Size | 435x360x350 mm ( L x W x H ) |
N.W. | 7.4 kg |
G.W. | 8.5 kg |
Specification Of Related Model:
If this model is not suitable for you, please check other in below chart.
Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
Z-S08 | 150x85x65 | 175x110x125 | 0.8 | 30 | 30 | 40 | no | 1-30 | no |
z-s01 | 150x135×100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
Z-S02 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 | |||
Z-S03 | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
Z-S031 | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
Z-S04 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
Z-S06 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
Z-S08 | 500x300x150 | 530x325×285 | 22 | 400 | 480 | 600 | |||
Z-S10 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |
Customer's Cleaning Feedback:
How to Choose best Ultrasonic Cleaner for Carburetor?
While you are considering to choose ultrasonic carb cleaner to replace your manual work, the cleaner’s tank size is always on the top list. To ask yourself, what dimension of carburetor you would like to clean? To measure the internal size of the tank rather than volume, you can make sure if the carb fits well in the tank for clean. Most of ultrasonic cleaners’ tank come with a steel basket, which will reduce 8mm all round. If you use a steel basket in a tank, don’t forget that 8mm reduce in size. Most of the sellers have already listed all dimension features in cleaner’s specification. Just don’t miss them.
Some other features you should also pay attention include heater capacity and digital display. The ultrasonic cleaner comes with a heater which is always convenient to gain effective clean. Digital display will show the water temperature, so users don’t have to plug their hand into the hot water.
The heart of ultrasonic cleaner is its transducer. The more transducer fitted to the ultrasonic bath, the better cleaning result will be. If you would like a more professional cleaning on a carburetor, the ultrasonic coming with more transducer can deliver you better result finally.
The following are some of the top rated ultrasonic carb cleaners. You can compare their feature and functions to choose the best one to suit your own carburetor cleaning needs.
