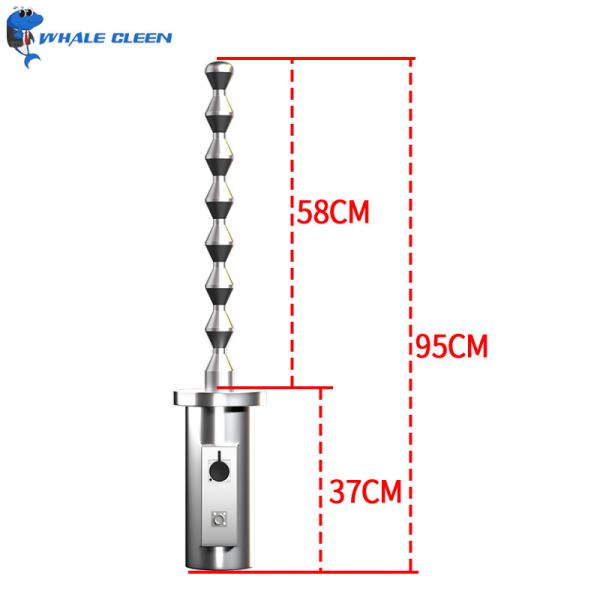

Anti-explosion Portable 3000W Ultrasonic Tubular Transducer Submersible Cleaner 95mm

Vibration Rods Homogenizing Emulsified Ultrasonic Reactor

1. What is an Ultrasonic Rod Transducer?

Ultrasonic Rod transducers are designed to let the piezo element create its ultrasonic vibrations across a cylindrical, tube type element. The design allows the system to generate an ultrasonic wave in an omnidirectional way the waves radiate in all directions from the source, not just in one direction like traditional surface plane mounted transducers.

2. Product Features:

1) Transducer: the use of imported materials, strong power output, stable frequency characteristics.
2) The amplitude changer: stable working performance, durable and long work service time.
3) Ultrasonic rod: acid corrosion resistance, vibration power transfer is fast.

4). Premium-grade material: The 360 degrees of portable ultrasonic cleaner is made from aluminum alloy as the surface of the cleaner is coated with insulation oxidizing sand blasting, thereby, greatly improving the service life of product.

5). Easy to use: After connecting the power supply, simply place the ultrasonic rod into a bowl / tank / sink / bucket (anything can hold water) with liquid. Then press the switch button and it will work automatically.

6). Anti-explosion Device: Equipped with explosion-proof device which can make sure it is safe to use flammable liquid.

7). Eco-friendly cleaning tool: The ultimate ultrasonic cleaing tool changes the traditional working way which consumes less engery and less liquid.

3. Application of immersible ultrasonic tubular transducer vibrating rod in cleaning

Due to the unique round tube design characteristics, the ultrasonic vibrating rod is especially suitable for the cleaning of all kinds of pipelines. The principle is to convert electric energy into ultrasonic energy and transfer it to scale, water and pipeline inner wall according to its own law, so as to obtain great energy. The shock wave generated in the transmission process of ultrasonic makes the scale, water and the inner wall of the pipeline resonate. Due to the different oscillation frequencies of scale, water and the inner wall of the pipeline, the water molecules in the pipeline collide violently, generate a strong impact force, impact the scale layer on the heat exchange surface, make it brittle, peel, fall off and crush, and discharge it together with the sewage discharge of the equipment, Thus, the ultrasonic vibrating rod can thoroughly clean the inner wall of the pipeline. In addition, the ultrasonic vibrating rod can also be used for cleaning the tank body. It can be freely placed at any position of the cleaning tank. It is very flexible and convenient to use, occupies a small volume space, and does not leave a dead corner for cleaning.

4. Application of ultrasonic vibrating rod in water treatment

The energy gathering ultrasonic probe of the ultrasonic vibrating rod can concentrate the energy and obtain a strong sound intensity on the ultrasonic radiation end face. Due to the energy gathering effect of the horn, the sound energy density is greatly improved; The reactor can be accurately designed according to the sound energy density; The transmitting end face of the probe is generally designed to be removable, so that the probe with appropriate end face size can be selected at any time according to the required sound intensity. At the same time, when the probe is seriously corroded by cavitation, it is only necessary to replace the end instead of the expensive whole vibrator. Ultrasonic vibrating rod can be used to treat various refractory organic wastewater. It has been used in the treatment of wastewater containing monocyclic aromatic compounds, polycyclic aromatic hydrocarbons, phenols, chlorinated hydrocarbons, chlorinated hydrocarbons, organic acids, dyes, alcohols, ketones and so on, and achieved good results. In the actual industrial wastewater, the equipment has been used to treat papermaking wastewater, printing and dyeing wastewater, tanning wastewater, coking wastewater, pharmaceutical wastewater and landfill leachate, and achieved good results.
