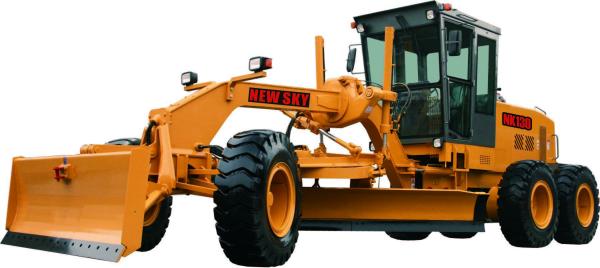

New Sky Mini Road Grader NK130 Professional Supplier For Sale

Power System

It's powered by Weichai China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.

The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.

Driving/Riding Environment

The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.

The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.

Working adaptability

With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.

The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.

The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.

Operating performance

It features the highest traction force among the domestic motor graders of like type and the highest operating efficiency among the domestic products of like type.

The external gear working device of proprietary technology features high drive torque and strong resistance against external force impact.

The blade of larger angular adjustment range (30°-65°) improves the material control capability and remarkably promotes the operating efficiency of motor grader, especially during the handling of dry material and clay.

With high resistance against external force impact, the link type swing frame is applicable for the working conditions with high operating volume and severe operating environment.

Easy maintenances

The hydraulic pin puller cylinder can complete the operations of swing frame by merely one operator to eliminate all potential safety hazards and ease user’s operations.

The structural parts inherit the excellent quality of Chinese famous brand products.

PRODUCT Features:

1. Wei Chai Deutz engine with low emission, high efficiency.

2. Hang Chi (Advance) YD13 transmission with electro- hydraulic control, power shift, 6 forward gears and 3 backward gears

3. Completely sealed, low-noise, ROPS/FOPS cabin with standard configuration of environment-friendly hot & cool A/ CMP3 player

4. Open-type hydraulic system (HUSCO control valve), adjusta ble blade control system.

5. The machine frame with completely sealed box-structure could be installed with various working devices.

6. Single-lever Joy stick could control the speed swiftly and sensitively

7. High-load NO-SPIN" (anti-slipping) differential with automatic locking / releasing function

7. 3658mm (12f) blade

Specification:

Product Show:
