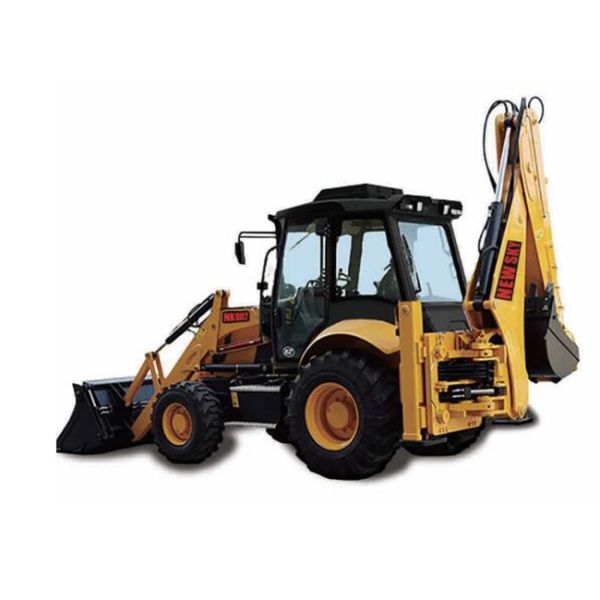

Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Specifications
Brand Name :
NEWSKY
Model Number :
NK862
Certification :
ISO9001
Place of Origin :
Shandong,China
MOQ :
1 unit
Price :
US$40000-US$45000/units
Payment Terms :
L/C, T/T
Supply Ability :
200units per year
Delivery Time :
7-40days
Packaging Details :
no pack
Dimension :
6230mm*3570mm*2300
Weight :
8200kg
Color :
Customized
Engine :
WEICHAI
Engine model :
WP4G95E221
Type :
Four-stroke,direct injection type,Turbo charge
Loader Bucket :
1m³
Rated power :
95hp/70kw
Rated Lifting Force :
25kn
Max.breatout Force :
40kn
Warranty :
1year
Description

95hp backhoe loader a high efficiency working equipment NEWSKY NK862 widely applicable to all kind of construction

Company introduction

Linyi New Sky Construction Machinery Co.,Ltd is located in Chengdu city,Sichuan province,China,which specializes in developing,manufacturing,selling and after servicing of road construction machinery.New Sky Sichuan company is establish in 2005 year start from exclusive representitive of CHENGGONG brand in China,and gradually began our own development and production.It's 15 years from now on.We mainly produce wheel loaders,motor graders,backhoe loader,road roller,bulldozer and excavator and sell to oversea market.We pay more attention to quality,service and customer satisfaction.From now on,we have branch office and service point in Central Asia,Middle East,Africa,Southest Asia and European market.


Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader

Main features:

  • Engine: Weichai as standard, Dongfeng Cummins as option.
  • Front Axle, Rear Axle, Transmission case: CARRARO
  • 4WD as standard
  • Hydraulic pump: Made in China. PERMCO pump as option.
  • Enclosed driving cab with Air Conditioner, heater as option.
  • Mechanic control as standard, pilot control as option.
  • Loading bucket: normal loading bucket with blade as standard, 4 in1
    multi-purpose loading bucket and bucket teeth as option.
  • Excavating bucket: 0.2 cbm
  • Telescopic excavating boom as option.
  • Hydraulic output pipe at excavating boom as standard


Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader

TRANSMISSION SYSTEM
Transmission

Four gear synchronization, electric-hydraulic control forward/backward. Switch,

shift and loading control handle have clutch splitting key
Front Axle Swing trun, oscillating angle is 22 degree
Rear Axle Braking axle with free-maintenance wet-type

Min. Ground

Clearance

335mm
Driving Break Electric-hydraulic control, built-in wet-type brake block

Transportation Dimension
Standard Dipper Extendible Dipper
Total Length (m) 6.23 6.23
Boom Height for Transportation(m) 3.57 3.58
Total Width (m) 2.30 2.30
Wheel Base (m) 2.15 2.15
Cabin Height (Including A/C) (m) 2.97 2.97
Operating Weight (kg) 8200 8720


Loading Operation Specification
4 in 1 Loading Bucket General Bucket
Rated bucket capacity (m3) 0.9 1.0
Max. dumping clearance (mm) 2534 2650
Max. dump reach (mm) 1178 1120
Dig depth (mm) 218 218
Drawback angle at ground pos. 39.5° 40°
Bucket upward angle at max. working height

44.5 o

 45 o
Max. breakout force (kn) ≥40 ≥40
Rated lifting force (kn) ≥25 ≥25
Rise time( s) 5.1 5.1
Fall time(s) 4.9 4.9
Tilting time( s) 0.9 0.9

ENGINE
Engine Model WEICHAI WP4G95E221
Type Four-stroke, Direct Injection type, Turbo Charge
Rated Speed ( rpm) 2200
Rated Power (hp/kw) 95/70
Peak Torque (N.m) 380
HYDRAULIC SYSTEM
Loading Pressure 20mpa
Excavating Pressure 20mpa
Steering Pressure 15mpa
Output Pressure 16mpa
Rated Flow 110L/min


Package & transportation

Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
Multifunction 95hp 70kw Hydraulic Pump Backhoe Wheel Loader
