High Reliability 17ton 220HP Engine Motor Grader
High Reliability 17ton 220HP Engine Motor Grader
High Reliability 17ton 220HP Engine Motor Grader
High Reliability 17ton 220HP Engine Motor Grader
High Reliability 17ton 220HP Engine Motor Grader
High Reliability 17ton 220HP Engine Motor Grader
Specifications
Brand Name :
NEW SKY
Model Number :
NK200
Certification :
ISO9001
Place of Origin :
Shandong,China
MOQ :
1 unit
Price :
US$66000-70000/unit
Payment Terms :
L/C, T/T
Supply Ability :
200units per year
Delivery Time :
30days
Packaging Details :
no pack
Condition :
New
Dimension(l*w*h) :
9250×2600×3330
Warranty :
Half a year or 1000 hours
Weight :
16500kg
Color :
Yellow
Product name :
Motor grader
Rated power :
162kw
Engine model :
Shangchai SC11CB220G2B1
Year :
2020
Make :
NEWSKY
Max. Traction :
110KN
Description

220HP engine motor grader NK200 model with 17ton operating weight

  • NEWSKY introduction

Linyi New Sky Construction Machinery Co.,Ltd is located in Chengdu city,Sichuan province,China,which specializes in developing,manufacturing,selling and after servicing of road construction machinery.New Sky Sichuan company is establish in 2005 year start from exclusive representitive of CHENGGONG brand in China,and gradually began our own development and production.It's 15 years from now on.We mainly produce wheel loaders,motor graders,backhoe loader,road roller,bulldozer and excavator and sell to oversea market.We pay more attention to quality,service and customer satisfaction.From now on,we have branch office and service point in Central Asia,Middle East,Africa,Southest Asia and European market.

  • Main specification

Overall Size(mm)

9250×2600×3330

Wheel Track(mm)

 2250

Max. Traction(kN)

 110

Blade Cutting Force(kg)

 7800

Total Weight(kg)

 16500kg

Front Axle(kg)

 4650kg

Rear Axle(kg)

 11850kg

Front Wheel Steering Angle(mm)

 6340

Middle Wheel to Rear Wheel(mm)

 1550

Max. Front Wheel Steering Angle(°)

 45

Max. Articulated Steering Angle(°)

 20

Min. Turning Radius(mm)

 8100

Blade:

Length (mm)

 3962

Arched Height(mm)

 610

Max. Tilt Angle(°)

 90

Rotating Angle (°)

 360

Cutting Angle Adjusting Range (°)

 30-65

Max. Lift Above Ground (mm)

 455

Max. Digging Depth Under Ground(mm)

 495

  • Product Description

1. Equipped with Shangchai SC11CB220G2B1 engine, strong power and reliable performance; new water tank radiator structure, large heat dissipation area, good effect and long life


2. Using electro-hydraulic control power shift gearbox, multiple gear selections, strong and powerful; with torsional shock absorber, weaken the impact of power transmission and improve transmission efficiency


3. Optimize the swing arm link, the working traction frame and the angle of the blade blade to increase the working range


4. High front-degree blade, high strength, long service life; blade angle change device adopts welding method, high strength


5. The lower articulated connection of the front and rear frame adopts tapered roller bearings, and the improved pin positioning makes the connection more reliable.

6.The cab is grand and nice,with wide eyeshot and good sealing

7.The front bulldozing plate, rear scarification device are optional kay part choice

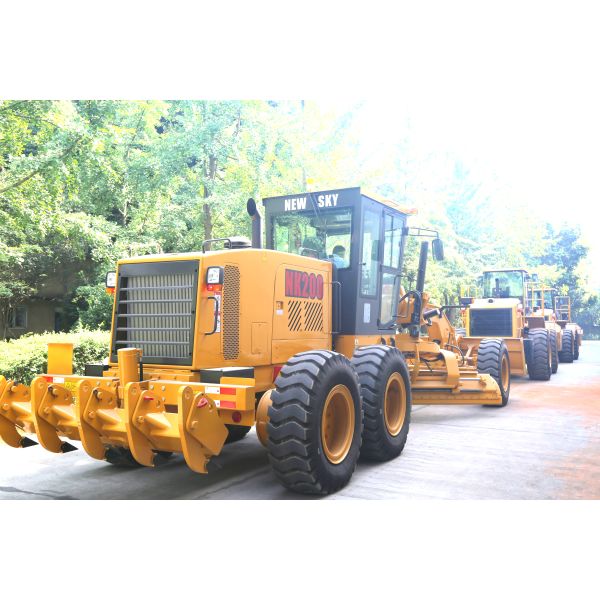

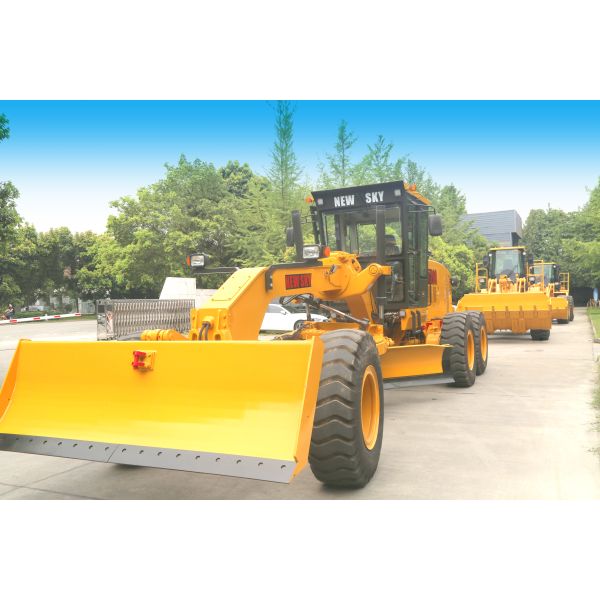

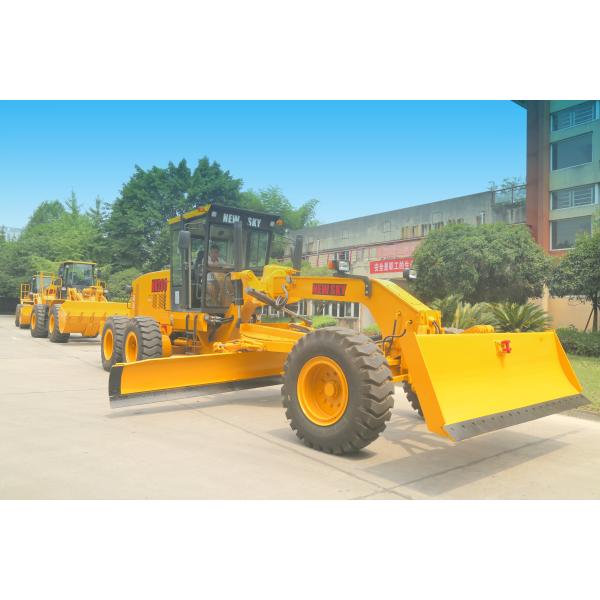

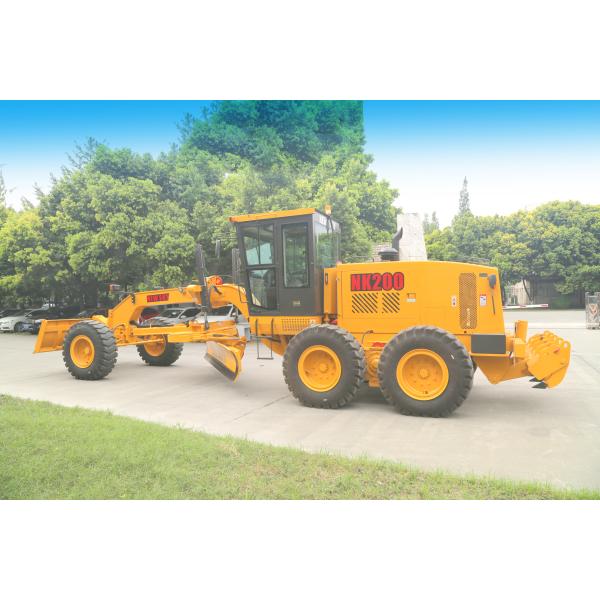

  • NK200 grader 360 degree show

High Reliability 17ton 220HP Engine Motor Grader

High Reliability 17ton 220HP Engine Motor Grader

High Reliability 17ton 220HP Engine Motor Grader

High Reliability 17ton 220HP Engine Motor Grader

High Reliability 17ton 220HP Engine Motor Grader

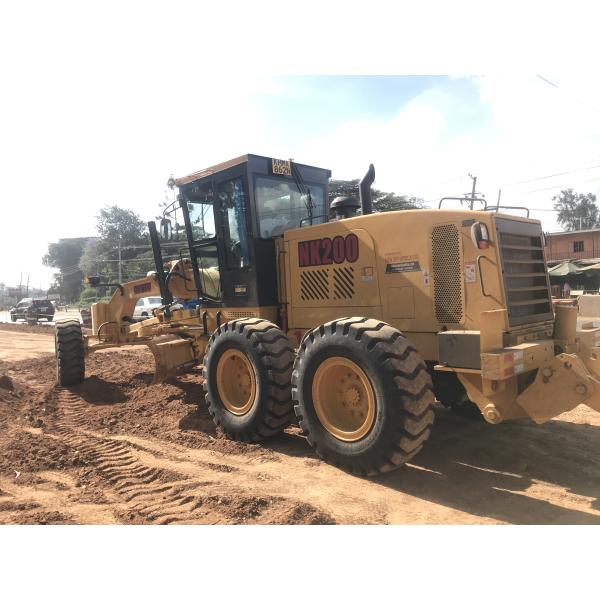

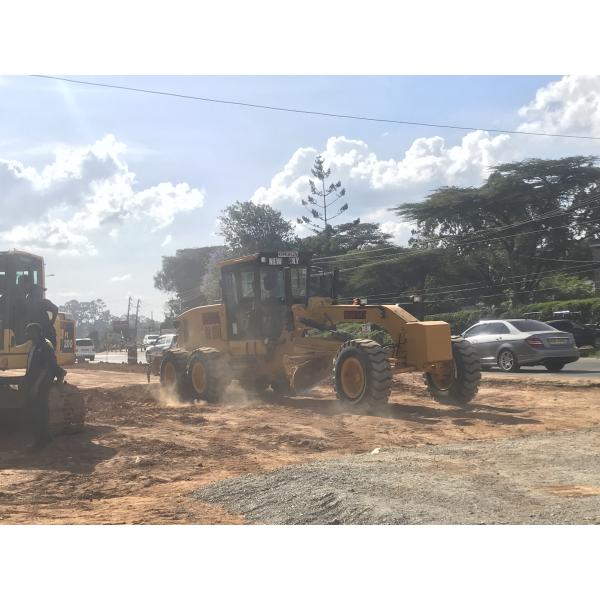

  • NK200 Grader in working

High Reliability 17ton 220HP Engine Motor Grader

High Reliability 17ton 220HP Engine Motor Grader

  • NEWSKY oversea serice point

High Reliability 17ton 220HP Engine Motor Grader

  • Contact information

Laura Wang
Skype:Laurawjf
Mobile/Whatsapp:+8618354287687
Wechat ID:junfang278697
E-mail:nk.machinery-02@newskychina.cn

  • FAQ

1.Are you manufacturer?

Yes,we are manufacturer located in Chengdu city,Sichuan province,China

2.Which country do you export to?

Mainly export to Myanmar,philipines,Kenya,tanzannia,Saudi Arabia,Iran,Australia,Kyrgyzstan,Ukraine,Belarus,Russia ...etc

3.What kind payment terms can you accept?

Mainly are LC and TT terms

4.How about the delivery time?

About 7-40 days after receiving the deposit

5.What about the warranty time of your machinery?

1 year or 2000 hours
