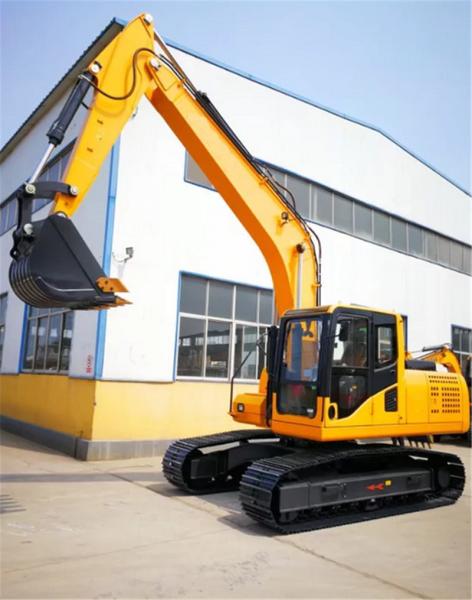

18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
18 Ton Crawler Digger Excavator With Cummins Engine WY180H 360° Rotation
Specifications
Brand Name :
Wenyang Machinery
Model Number :
WY180H
Certification :
ISO ,CE
Place of Origin :
China
MOQ :
1 set
Price :
15000 USD-25000 USD
Payment Terms :
T/T, Western Union,
Supply Ability :
800 sets/year
Delivery Time :
15 days
Packaging Details :
Rude cargo
Weight :
18TON
Type :
crawler excavator
Rotation :
360° rotation
Max digging depth :
5975mm
Engine :
Cummins
Bucket :
0.8m3
Description

China WY180H 18ton crawler digger cralwer excavator with Cummins engine

>> MAIN CONFIGURATIONS:

▲The crawler excavator is an economic type excavator ,which matched CUMMINS engine with strong power and low noise and low consumption and environment protection.

▲Fitted imported brand main pump and valves .

▲ Adopted imported driving motor and swing motor.

▲ Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .

▲The professional structural parts and working mechanism , ensure the machine has reliability and durability .

▲The breaking pipeline equipped improve the working performance .

▲Installed luxury full seal cabin with A/C and LCD display and LED lights etc.

▲ The humanized design , ensure the machine can comfortable operation and convenient maintenance

>> MAIN CONFIGURATIONS:

NO DESCRIPTION

1

1-CUMMINS QSF3.8 engine , 93kw/2200rpm.national III, turbocharged

2-KAWASAKI brand pump

3-DOOSAN brand valves

4-Korea SUNJIN brand slewing motor

5-Korea DOOSAN brand driving motor

6-Luxury full seal cabin with A/C and LCD display and LED lights etc.

7-Hydraulic pilot servo operation system

8-Steel track :600mm

9-With broken pipeline system

10- Bucket capacity: 0.8m³
2

OPTIONAL ACCESSORIES:

1-AUGER

2-BREAKER

3-LOG GRAPPLE

MAIN TECHNICAL PARAMETER

MAIN SEPCIFICATIONS
Bucket capacity 0.8m³
Swing speed 0~12 rpm
Max. Grade ability 30°
Max. Bucket digging force 98KN
Max. Arm digging force 68KN
Engine model QSF3.8
Power /Rotation speed 93kw/2200rpm
Hydraulic system pressure 32Mpa
Travel speed 3~4.2km/h
Operation weight 18000kg
MACHINE SIZE
Overall dimension (L*W*H) 8540mm*2720mm*2920mm
Height of cabin 2920mm
Axle base(Track length on ground) 3200mm
Track gauge 2120mm
Min.Ground clearance 480mm
Swing radius at tail 2430mm
Width of track 600mm
WORKING RANGE
Max. Digging height 9430mm
Max. Dumping height 6960mm
Max. Digging depth 5975mm
Max. Vertical digging depth 5630mm
Max. Digging radius 8985mm
Min .swing radius 2725mm
