8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
8 Ton Diesel Powered Forklift 4wd Forklift Pallet Truck 18 Months Warranty
Specifications
Brand Name :
Wenyang Machinery
Model Number :
FD80T
Certification :
CE ,ISO ,CQC,CNAS
Place of Origin :
China
MOQ :
1 unit
Supply Ability :
1000unit/month
Delivery Time :
15 working days
Packaging Details :
container
Type :
Powered pallet truck
Rated load :
8T
Lifting height :
3000mm
Condition :
New
Load center :
600mm
Fork Dimension :
1220*170*75mm
Engine Brand: :
Chaochai 6102 or Isuzu 6bg1
Warranty :
18 Months or 2000 Hours
Description

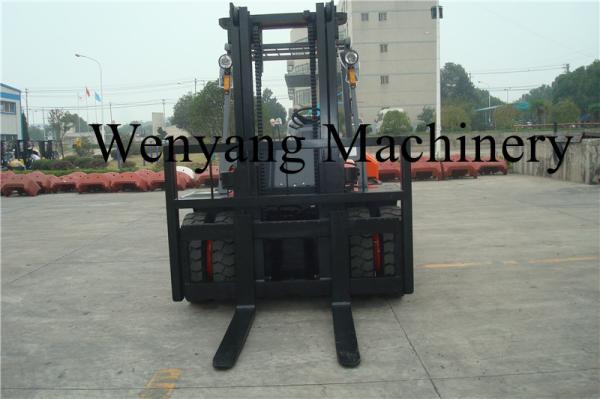

Wenyang Machinery brand forklift 8ton diesel forklift truck with ISUZU 6BG1 engine made in China

Model FD80T
Load capacity kg 8000
Load center mm 600
Power unit Diesel
Operator type Driver/seat
Tire type Front/rear Pnenumatic
Wheel Front/rear 4/2
Max. lifting height mm 3000
Free lift mm 205
Fork size L*W*T mm 1220*170*75
Tilt range Mast forward/backward deg 6/12
Overall length(without fork) mm 3740
Total width mm 1995
Mast height (fork lowering) mm 2625
Overall height fork raised With backrest mm 4545
Height to head guard mm 2450
Turning raduis(outside) mm 3550
Front face of fork to front axle mm 620
Min. right angle stacking aisle pallet size :1100×1100 add clearence mm 5770

Speed		 Max Travelling full/no load km/h 26/30
Lifting full/no load mm/s 450/550
Lowering full/no load mm/s 450/500
Max.drawbar pull full/no load kg 5300/2150
Gradeability at 1.6km/h full load % 24
Max. Gradeability full/no load % 26/22
Truck weight kg 10450
Weight distribution Full load front/rear kg 16370/2080
No load front/rear kg 4060/6390

Tires		 Number front/rear 4/2
Model front axle 8.25x15-14PR
rear axle 8.25x15-14PR
Wheelbase mm 2400
Tread Front/rear mm 1470/1700
Ground clearence At lowest point(mast) mm 190
Frame mm 230
Brake Service brake power bake
Parking brake Mechanical-hand lever
Battery Voltage/capacity V/AH 2x12V-80AH


Engine		 Model ISUZU 6BG1
Rated power PS 112/2000
Rated torque kg-m 42.5/1500
Number of cylinders 6
Placement L 6.494
Fuel tank capacity L 140
Transmission shift stage(front/rear-type) 2-2 power shift T/M
Operating pressure Hydraulic system pressure kg/cm² 200
