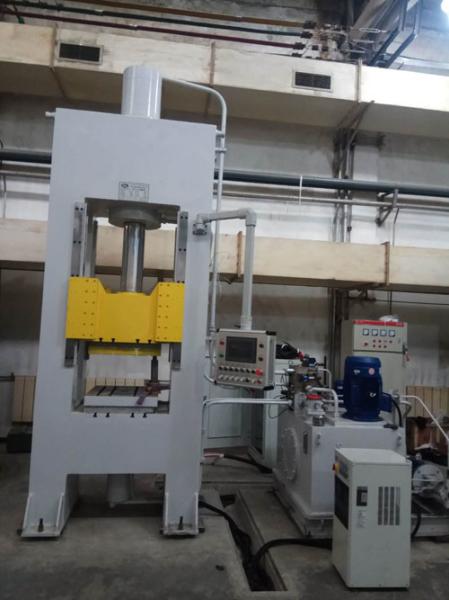

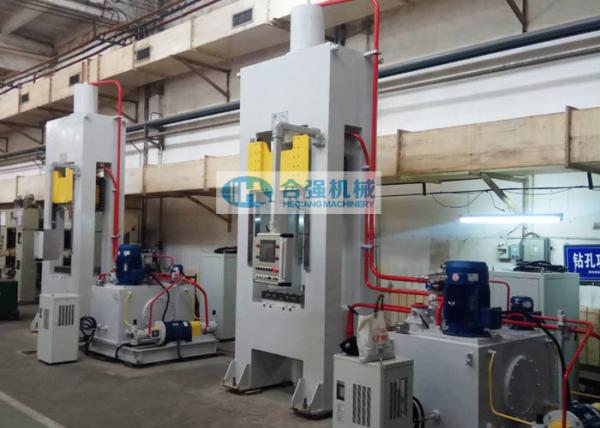

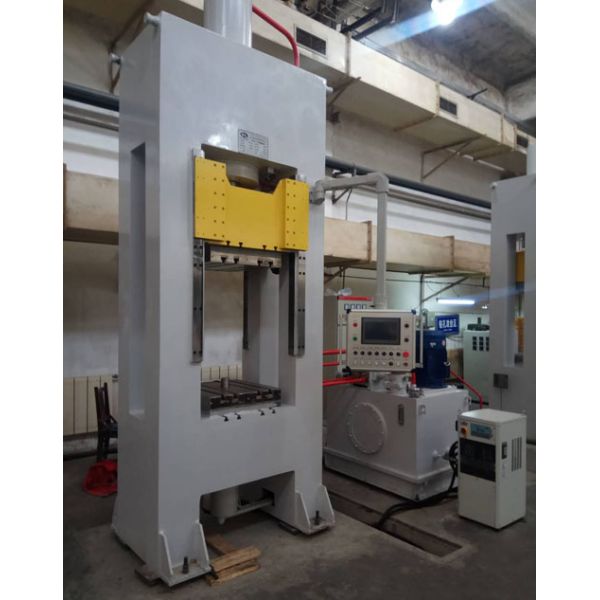

Y34 Series 160t Frame Type Hydraulic Press Machine , Four Pillar Hydraulic Press

Application scope:
This hydraulic press machine is mainly used for the pressing and forming of metal and plastic products.,The machine has good system rigidity, precision, life and reliability. It has strong specialty, novel structure, wide adaptability and high degree of automation. The machine is equipped with heating system.

Main Technical Parameters:

(Above parameters are indicative and can be modified according to the customer's actual requirements.)

Machine Features:

• Frame type Four column structure.
• The hydraulic press machine is mainly composed of main body, heating system, hydraulic system and electrical control system, etc.
• The main body is firmly fixed onto the the ceramic foundation by the anchor bolts.
• It's provided with T-slots on the upper surface of the working table for placing and fixing the workpieces.
• The main cylinder and piston rod are made of 45 steel forging piece. The main cylinder is installed in the top of the machine body.
• This series product has independent power mechanism and electrical system, and uses the button common control.
• The process action uses PLC control to achieve adjustment and semi-automatic operation mode.
• The working pressure, pressing speed and stroke range all can be adjusted as per process requirements.
• Siemens PLC and display to control the whole operation.
• Cantilever control panel.
• The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials. The mechanical components used is a series of advanced, high quality, reliable and practical products, and conforms with relevant international standards.
• Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
• All devices and meters are measured in accordance with the international system of units (SI) standards. The design, manufacture and tests of the equipment and meters conform to international industrial standards (ISO) and International Electrotechnical standards (IEC). The protection grade of all electrical components is not less than IP54.
