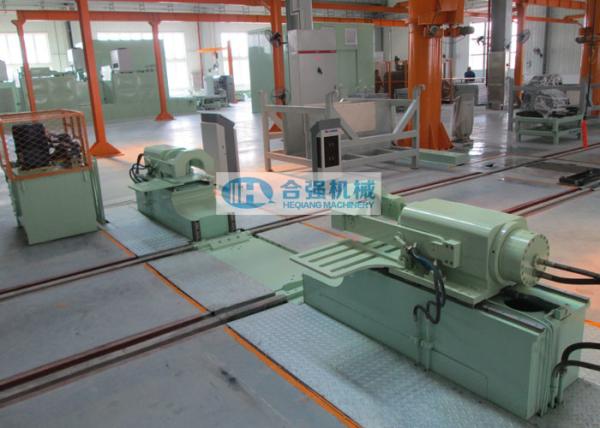

Railway Automatic Wheel Bearing Dismounting Press, Bearing Demount Press, Rolling Bearing Puller, Stationary Bearing Dismount Press, Bearing Disassembly Press Machine

Application scope:
This Bearing Dismounting Press Machine is used to automatically dismount the rolling bearings off from the axle. It's applicable for the maintenance of different types of railway vehicles.

Technical parameters:

(*Above parameters are indicative, and can be modified as per customer's requirements.)

Main Structure & features:

The bearing dismount press machine is mainly composed of main frame, left/right main cylinders, dismounting claw devices, wheelset lifting device, receiving device, push wheel device, calibration device, hydraulic system, measuring and electrical control system etc.

• Automatical dismounting both end bearings simultaneously.
• Automatical dismounting single end bearing separately.
• Manually complete the dismounting as per the working steps. (used during maintenance and commissioning).
• Automatic dismounting under non-load (used in test run).
• Veto for wrong input and incorrect operation.
• Siemens S7 PLC.
• Friendly human-machine interface.
• The operation system can generate, record, save and print the pressing curves.
• On-line passing-through arrangement, the wheelset can be pushed out automatically after the bearing is dismounted.
• Dismounting process: the small oil cylinder of the dismounting device drives the claw device to rotate, clasps the rear cover of the bearing, and the piston rod moves backward with the dismounting claw device, and then the axle box bearing is dismounted. Manually take out the dismounted bearings. Only need to replace the pulling plate for different types of the bearing,
• Foundation is required for this model bearing press machine.
• The exposed surface of all parts should be anti-corrosion, rust-proof; the outer surface of the press should be sprayed with anti-rust primer and topcoat.

Technical Documents:
The following technical documents will be supplied along with the machine when delivery in 3 (three) hard copies and 1 (one) soft copy in English language:

• Operation and maintenance instruction manual;
• General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
• Foundation drawing;
• List of Spare part list and Special tool;
• Product certificate/Factory Acceptance Certificate, etc.

Warranty & After-sale Service:
One year of free warranty and lifetime maintenance for the equipment for your purchased equipment. During the warranty period, only due to design defects, manufacturing quality, and quality of purchased parts, our company is responsible for free maintenance. The company provides the required replacement parts (except for consumable parts). Over the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
