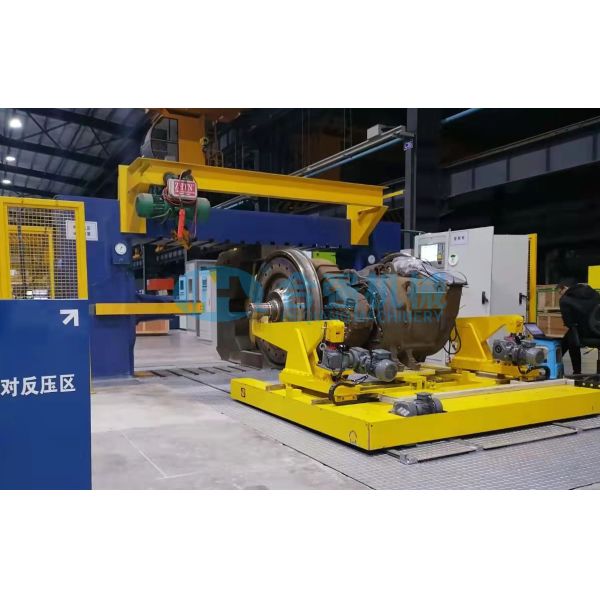

350 Tons Double Head Wheel Demount Press Horizontal Wheelset Press

Hubei Heqiang Machinery is the leading manufacturer of wheel set press machines in China. It offers the most advanced wheel presses available in the railway and other relevant industry. The wheelset presses are used to mount and dismount all of the elements on the axle (wheel discs, brake discs, gears and bearings). With both single and double cylinder version available for option and capacity range from 200 to 800 tons. Our vast range of machines can satisfy all customer requirements in both maintenance and mass production applications.

Application scope:

This Double head Wheelset Dismount Press is used for the dismounting and backpressure test work of the wheel discs and axles of the locomotive wheelsets. It can generate, record, save and print the backpressure curves. It's only required one operator to operate the hydraulic wheel press.

Technical parameters of the Hydraulic Wheel Press:

(*Above parameters are indicative, and can be modified as percustomer's requirements.)

Machine features of the Horizontal Wheelset Press:

• The Wheel Dismount Press is a horizontal hydraulic wheel press and will be installed in a pit.
• The Wheel press-fitting Machine is able to dismount both wheels on the same axle without turning the axle and in a sequence first the wheel at one side of the axle then the wheel at the other side.
• Special patented centring devices at both ends of two ram cylinders for center hole positioning.
• Double-end cylinder pressing, only need one positioning without reversal of the axle.
• Movable column with replaceable inserts to block the wheels dismounting. It's the Original patent in China.
• Overall gantry frame structure, with high strength, good rigidity and less deformation.
• Electrical support trolley for wheelset loading and unloading. It will exit from the Machine during the operation.
• A gearbox support is provided to support the gearbox during the whole mounting process.
• Siemens S7 PLC and Advantech Industrial computer for operation control.
• The Wheel Press Machine can track and control the whole process, detect the pressing condition of the wheelset, and analyze and process it through industrial computer. It can export the curve and other results onto the screen and printer.
• The Wheel Assembly press Machine is designed with acoustic-light alarm to ensure the safe and reliable operation.

Warranty & After-sale Service:
One year of quality warranty. During the warranty, our company is responsible for free maintenance for the failure due to design defects, manufacturing quality, and quality of purchased parts. The company provides the required replacement parts (except for consumable parts). After the warranty period, repairs only are charged at the cost price. At the same time, you will enjoy a lifetime software upgrade from the date of purchase; our engineers will provide a quick response when service is required.
