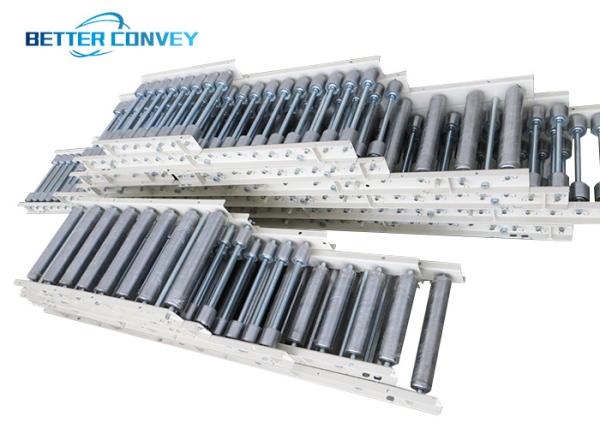

Stainless Steel 1.9 Dia Mdr Motorized Roller Conveyor
Stainless Steel 1.9 Dia Mdr Motorized Roller Conveyor
Specifications
Brand Name :
BETTER CONVEY
Model Number :
OEM
Certification :
CE SGS
Place of Origin :
China
MOQ :
1pc
Payment Terms :
D/A, D/P, T/T, L/C, MoneyGram, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
28days
Roller diameter :
89mm
Roller pitch :
30, 40, 50
Loading weight :
30~1200Kg
Length :
1000~3000mm
Rack size :
40x20x2, 60x30x2.5, 60x30x3
Transmission mode :
sprockets, O type belt, synchronous belt
Speed :
variable or constant
Frame of conveyor :
carbon steel painted, stainless steel or Aluminum
Description

Stainless Steel Frames 1.9" Dia MDR Motor Driven Roller

Motor Driven Rollers (MDR) can come in a variety of lengths, but there are two main diameters used for different applications. The 1.9" dia roller is used for package handling and drives adjacent rollers through the use of urethane bands wrapped in grooves in each tube. The 2.5" dia roller has a pair of A-type sprockets welded to it, and uses RC60 chain to transfer power to the other rollers in the zone. This is most commonly used for pallet loads, and also for other heavier applications. Plenty of other options for size, power, diameter, and environmental issues are available.

Roller conveyor

1. Types: gravity roller conveyors, driving roller conveyors, electric roller conveyors, inclined conveyors and turning conveyors.

2. The standard diameters are Φ20mm, 25mm, 32mm, 38mm,42mm, 50mm, 57mm, 60mm, 76mm, 89mm, 110mm, 130mm etc.

3. The diameter of the turning conveyors are 300mm, 600mm, 900mm, 1200mm.

4. Frame of conveyor: carbon steel painted, stainless steel or Aluminum.

5. Transmission mode: sprockets, O type belt, synchronous belt etc.

6. Speed: variable or constant.

Automatic Roller Conveyor​ Specifications:

Material
Steel tube, stainless steel, aluminum alloy
Voltage (V)
110/120/220/230/240/380/440
Size (mm)
300/400/500/600/800
Power(W)
60/90/120/200/400/750/1500/2200
Scope of Application
factory, workshop, conveyor line, production line, logistics industry.
Types
conveyor/assembly line
Delivery period
7-20days
Support customization
Yes

Operational Advantages

  • Reliable
  • Flexible – built in variable speed
  • Clean
  • Real zero-pressure accumulation
  • Low energy use
  • Plug and play controls
  • No awkward motor &gearbox

Maintenance Advantages

  1. Few spare parts
  2. Relatively maintenance free
  3. Low cost repair parts
  4. Short repair times
  5. Most repairs can be done by a single person

Product Information

Stainless Steel 1.9Stainless Steel 1.9Stainless Steel 1.9Stainless Steel 1.9

Stainless Steel 1.9
