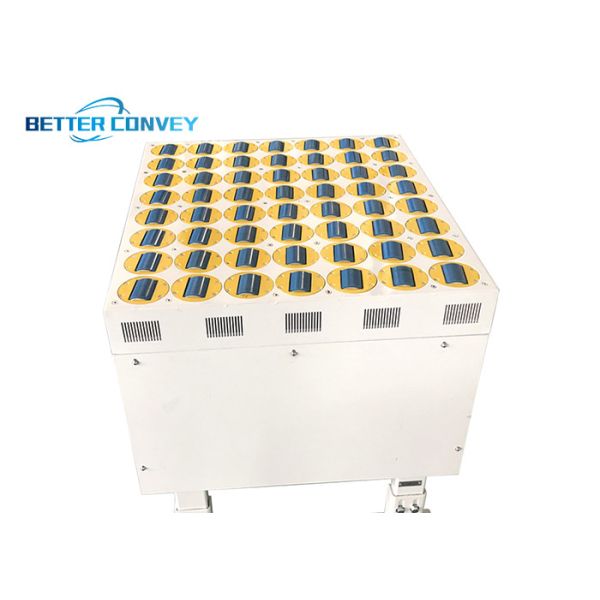

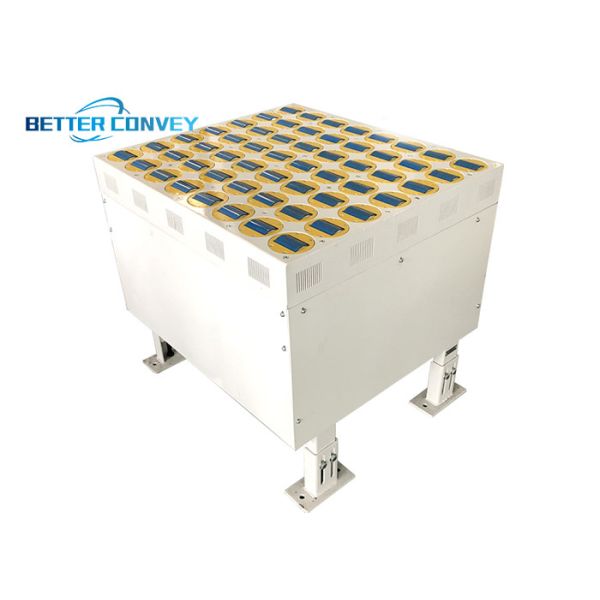

Electrical Wheel Market Carton Parcel Sorting Machine
Electrical Wheel Market Carton Parcel Sorting Machine
Specifications
Brand Name :
BETTER CONVEY
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 sets/month
Delivery Time :
30 working days
Packaging Details :
Export wooden package
Name :
Swivel Wheel Sorter
Voltage :
48VDC / 380V / 415V, 220V / 380V / 415VAC
Dimension :
610mm*688mm*800mm or Customized
Width :
480, 580, 680, 780，980，1080mm
Length :
510mm + 100 x numbers of module
Frame Material :
SUS304 / Carbon steel
Structure :
Line Wheel Diverter
Angle :
30-45-60-90degree
Power :
750W or Customized
Sorting capacity :
4,000 PPH or Customized
Diverting time :
0.24s
Sorting orientation :
forward, right and left
Min. parcel size :
100 x 100 x 10mm
Max. parcel size :
1200 x 800 x 800mm
Loading weight :
0.2-40kg
Loading size :
max. 800mm x 1,200mm x 800mm min. 100mm x 100mm x 10mm
Conveying Speed :
60~150m/min(Adjustable)
Description

High Speed Swivel Sorters for Parcel Sorting at Airport​

Specification of Swivel Wheel Sorter

Name Swivel Wheel Sorter
Voltage 48VDC / 380V / 415V, 220V / 380V / 415VAC
Dimension(L*W*H) 610mm*688mm*800mm or Customized
Material Stainless Steel/Carbon Steel
Material Feature Fire Resistant
Structure Line Wheel Diverter
Power 750W or Customized
Width 480, 580, 680, 780,980,1080mm
Length 510mm + 100 x numbers of module
Sorting capacity 4,000 PPH or Customized
diverting angle 30-45-60-90degree
Diverting time 0.24s
Sorting orientation: forward, right and left
Min. parcel size 100 x 100 x 10mm
Max. parcel size 1200 x 800 x 800mm
Loading weight 0.2-40kg
Loading size max. 800mm x 1,200mm x 800mm
min. 100mm x 100mm x 10mm
Conveying Speed 60~150m/min(Adjustable)
Noise less than 75dB
Warranty 1 Year
After-sales Service Provided Free spare parts, Engineers available to service machinery overseas

Wheel Sorter Catalogue

1200W L1230*W1280*H600 60-120
1200W L1030*W1280*H600 60-120
1000W L1230*W1080*H600 60-120
1000W L1030*W1080*H600 60-120
800W L1030*W880*H600 60-120
800W L830*W880*H600 60-120
600W L630*W680*H600 60-120

Electrical Wheel Market Carton Parcel Sorting MachineElectrical Wheel Market Carton Parcel Sorting Machine

Advantage:


1) Customizable
Angular rotation is powered by servo motors with a resolution of less than a degree for customized angles between 0 and 90
degrees. Can provide Unique Design-Double sides 90 degree sorting.
2) High Sorting Rate
Every wheel has a separated powered electrical roller. Designed for high speed and bidirectional for sorting operation on both sides at the same time. Polyurethane coated wheels and bands provide enough drive to minimize loss in speeds during divert. Maximum Sorting Rate can be 7200 pieces/hour.
3) low noise
Use new material and noise elimination technology which can be friendly for Environment, noise can be less than 75dB

3) energy conservation and environmental protection
Light weight material and low energy consumption structure as well as low power and source power (conveyor) drive to achieve successful operation.
4) Flexible and stable sorting operation
Online double-row swivel wheel technology prevents conveyed goods from vibration and
damage. Stably and flexibly sort goods from
light duty to maximum 70kg heavy duty range.
5) Easy layout and maintenance
Use unit modular design and embedding combination structure, easy for sorting positions be placed at any position along both sides of conveyor line. Product is more reasonable, simple, conveniently used and maintained.

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, meantime, Our company is an integrater of Material Handling Systems, conveying and sorting systems, automation systems.

Q2: Do you manufacture hardwares and R&D softwares?
A2: We make most ligistics equipments for hardwares, and completely R&D softwares, we own lots of experienced and skillful mechanical engineers, electrical engineers, sotware engineers.

Q3: Do you make OEM products, or customized projects?
A3: All of our projects are customized, we make non-standard products according to customers' individual demand.

Q4: Where is your company and the port?
A4: Our company is located in Shanghai city where it's close to Shanghai Port.

Q5: what's your delivery time?
After confirming your deposit to us, the delivery time is 30 ~ 45 days.

Q6: What payment terms do you prefer?
A6: T/T , L/C , West Union.

Q7: How long is your warranty.
A7: roller conveyors, and belt conveyors, sorter machines are guaranteed for 1 years.

Q8: How to contact you quicky?
A8: Add me whatsapp and skype IDs, I will reply you instantly, or send me an inquiry online.
