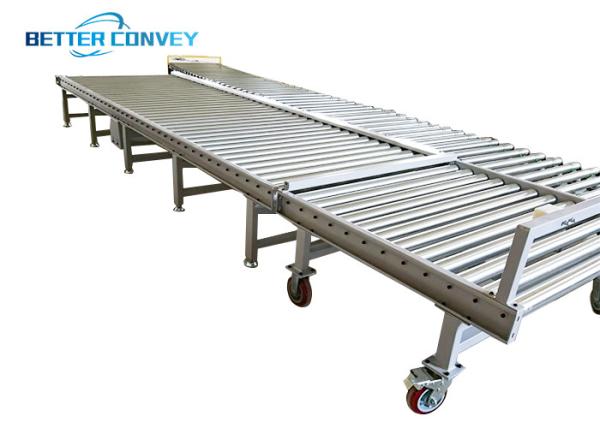

Flat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor Equipment
Flat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor Equipment
Specifications
Brand Name :
BETTER CONVEY
Model Number :
OEM
Certification :
CE SGS
Place of Origin :
China
MOQ :
1pc
Payment Terms :
D/A, D/P, T/T, L/C, MoneyGram, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
28days
Roller diameter :
50mm
Roller pitch :
75
Loading weight :
30~1200Kg
Length :
1000~3000mm
Rack size :
90x30x3
Transmission mode :
sprockets, O type belt, synchronous belt
Speed :
variable or constant
Frame of conveyor :
carbon steel painted, stainless steel or Aluminum
Description

Flat Bottoms T-Slot 75 Mm Deep Frame Motor Driven Roller​

Our standard range of products is available in variable finishes. When you do business with us you will have competent advisor on your side due to our broad selection load-bearing rollers, drive train systems and special roller conveyor profiles. We gladly develop effective, cost-optimized transport solutions tailored to your spatial conditions and specific merchandise. The section below displays some of our roller conveyor variations: the load-bearing rollers are available in different finishes such as plastic, stainless steel, aluminum or steel:

Roller conveyor

1. Types: gravity roller conveyors, driving roller conveyors, electric roller conveyors, inclined conveyors and turning conveyors.

2. The standard diameters are Φ20mm, 25mm, 32mm, 38mm,42mm, 50mm, 57mm, 60mm, 76mm, 89mm, 110mm, 130mm etc.

3. The diameter of the turning conveyors are 300mm, 600mm, 900mm, 1200mm.

4. Frame of conveyor: carbon steel painted, stainless steel or Aluminum.

5. Transmission mode: sprockets, O type belt, synchronous belt etc.

6. Speed: variable or constant.

Automatic Roller Conveyor​ Specifications:

Material
Steel tube, stainless steel, aluminum alloy
Voltage (V)
110/120/220/230/240/380/440
Size (mm)
300/400/500/600/800
Power(W)
60/90/120/200/400/750/1500/2200
Scope of Application
factory, workshop, conveyor line, production line, logistics industry.
Types
conveyor/assembly line
Delivery period
7-20days
Support customization
Yes

Operational Advantages

  • Reliable
  • Flexible – built in variable speed
  • Clean
  • Real zero-pressure accumulation
  • Low energy use
  • Plug and play controls
  • No awkward motor &gearbox

Maintenance Advantages

  1. Few spare parts
  2. Relatively maintenance free
  3. Low cost repair parts
  4. Short repair times
  5. Most repairs can be done by a single person

Product Information

Flat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor EquipmentFlat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor EquipmentFlat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor EquipmentFlat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor Equipment

Flat Bottoms T Slot 75 Mm Chain Drive Roller Conveyor Equipment
