BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire
BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire
Specifications
Brand Name :
wanhai
Model Number :
BTO-22 BTO-28 BTO-30 CBT-65 CBT-60
Certification :
D&B SGS
Place of Origin :
china
MOQ :
2000kgs
Price :
USD800 PER TON
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
180TONS PER MONTH
Delivery Time :
8-10DAYS
Packaging Details :
waterproof paper+pvc bag,then packed in one big bundle,1000kg per bundle for easy loading the container,20-25tons for 1X20 feet container
material :
hot dipped galvanized steel strip high tensile steel core wire stainless steel strip stainless steel core wire
razor barbed wire coil diamtert :
400mm 450mm 500mm 600mm 750mm 900mm
razor barbed wire coil covering length :
9meters,10meters;15meters;25meters
razor barbed wire packing :
waterproof paper+pvc bag,carton box, pallets
Description

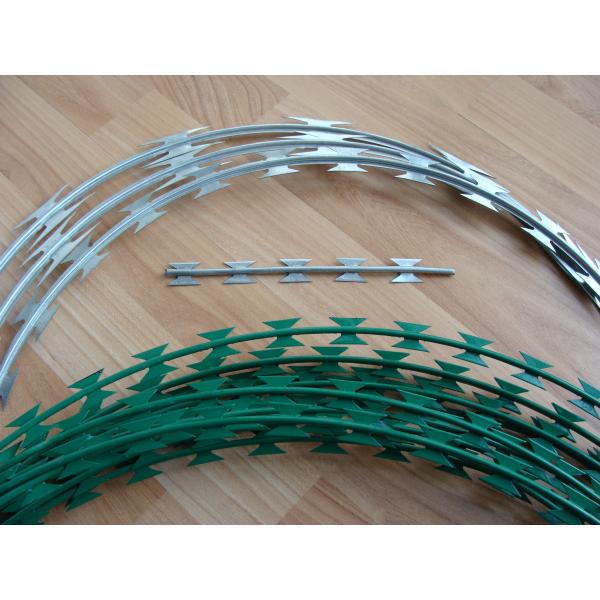

Razor barbed wire can be installed in the form of barbed tape wire or concertina coil to walls or fencings. Razor barbed tape is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high tensile steel wire. This product is good at threat and impediment artistic, and economical, easy to execute. It is mainly used in the protection of garden apartment, Government agency, jail, sentry, frontier defense etc. Because the formation of the wire is unique which is not easy to touch, the effect of defense and isolation is wonderful

BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire
BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire
Razor Blade Specification
Reference Number Blade Style Thickness Wire Dia Barb
Length		 Barb
Width		 Barb
spacing
BTO-10 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 28±1 15±1 34±1
BTO-30 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.5±0.05 2.5±0.1 30±1 18±1 34±1
CBT-60 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.6±0.05 2.5±0.1 60±2 32±1 96±2
CBT-65 BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) .
Standard materials are either hot dipped galvanized or stainless steel.
Standard blade styles are shown in the tables above, special specifications are available on request.

BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire

CONCERTINA RAZOR WIRE COIL

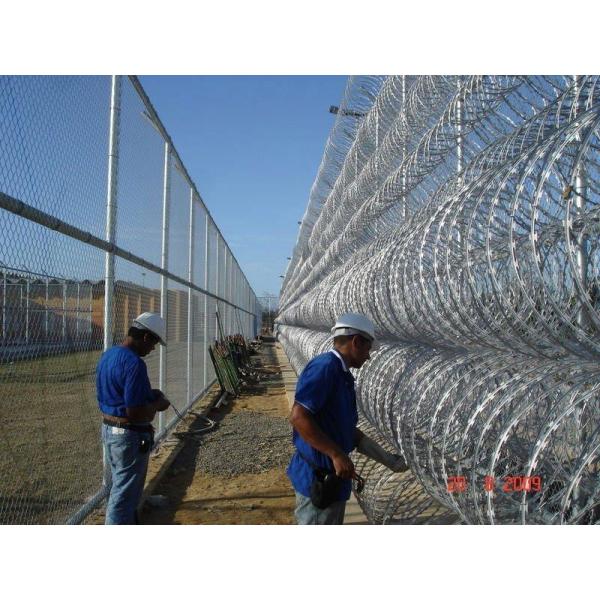

Concertina razor wire coils are the most popular high security fencing for military and high grade residences safety. Two main types available for concertina coils: one is the single coil and the other is crossed concertina coils. Crossed concertina offers the highest security grade among all the razor wire fencings.

Materials: Galvanized steel sheet, stainless steel sheet.

Two pieces of razor wire can be bounded together by clips to make it stronger. The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful outlook and practical property, we also can supply the welded razor mesh pieces, and welded razor mesh rolls, flat razor wire coil..
Features: Compact and rational structure, high safety factor, for the protection of prison and key project.

BTO-22 BTO-28 hot dipped galvanized razor barbed wire green gray PE coating razor barbed wire

Barbed Tape Wire Specification
Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9m(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
