sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
Specifications
Brand Name :
wanhai
Model Number :
CBT-60,65,BTO18,BTO22,BTO-28,BTO-30
Certification :
SGS D&B
Place of Origin :
Chin
MOQ :
5000kgs
Price :
USD750-USD850 PER TON
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200 TONS PER WEEK
Delivery Time :
7-14DAYS
Packaging Details :
Waterproof paper /weaving bag /carton /pallet
material :
high tensile strength steel wire,common steel wire, stainless steel wire
razor wire core wire diameter :
2.5mm+/-0.03mm
zinc coating :
hot dipped galvanized 60g/m2, heavily zinc coating 180g/m2
application :
used in villatic wall, window,military affairs, prison, government, bank, and also in living wall, personal house
pvc coated :
PVC coated or PE coating can be finished, green,white, gray available
Description

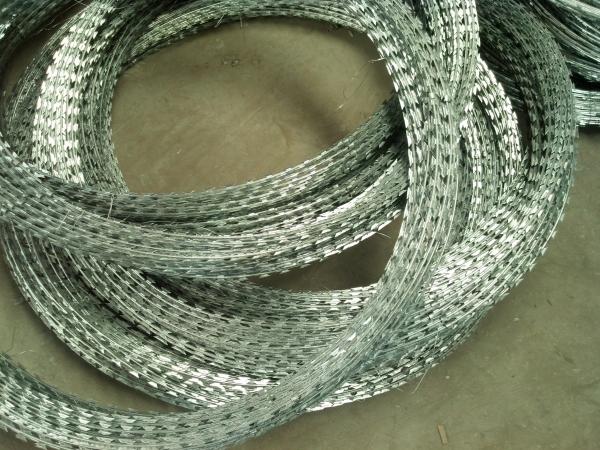

Razor barbed wire is a kind of modern security fencing materials fabricated with sharp steel blade and high-tensile wire.
Razor Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh

Razor Blade Specification
Reference NumberBlade StyleThicknessWire DiaBarb
Length		Barb
Width		Barb
spacing
BTO-10sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.110±113±126±1
BTO-12sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.112±115±126±1
BTO-18sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.118±115±133±1
BTO-22sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.122±115±134±1
BTO-28sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.128±115±134±1
BTO-30sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.5±0.052.5±0.130±118±134±1
CBT-60sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.6±0.052.5±0.160±232±196±2
CBT-65sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh0.6±0.052.5±0.165±221±1100±2

Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO) .
Standard materials are either hot dipped galvanized or stainless steel.
Standard blade styles are shown in the tables above, special specifications are available on reques.

Barbed Tape Wire Specification
Loop Outside DiameterNo. of LoopsStandard Length per CoilTypeNotes
450mm337-8MCBT-60.65Single coil
500mm5612-13MCBT-60.65Single coil
700mm5613-14MCBT-60.65Single coil
960mm5614-15MCBT-60.65Single coil
450mm568-9m(3 CLIPS)BTO-10.12.18.22.28.30Cross type
500mm569-10M (3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm5610-11M(3 CLIPS)BTO-10.12.18.22.28.30Cross type
600mm568-10M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
700mm5610-12M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
800mm5611-13M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
900mm5612-14M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
960mm5613-15M (5 CLIPS)BTO-10.12.18.22.28.30Cross type
980mm5614-16M (5 CLIPS)BTO-10.12.18.22.28.30Cross type

Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years,concertina wire coil barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire meshsharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh


Currently, Razor Barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities. Recently years,concertina wire coil barbed tape has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.
sharp razor wire high tensile strength razor barbed wire military affairs/prison use concertina razor barbed wire mesh
