313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
Specifications
Brand Name :
WHJB
Model Number :
313891 A 506962 150RV2302 4R3040 313891-1
Certification :
FORM A
Place of Origin :
China
MOQ :
10
Price :
$ 180/pcs
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
4-6 weeks
Packaging Details :
single package wooden case
MATERIAL :
Chrom steel GCr16,100CR6 SAE52000
QUENCHING :
58-63HRC
PRECISION :
P6,P5,P4
Description

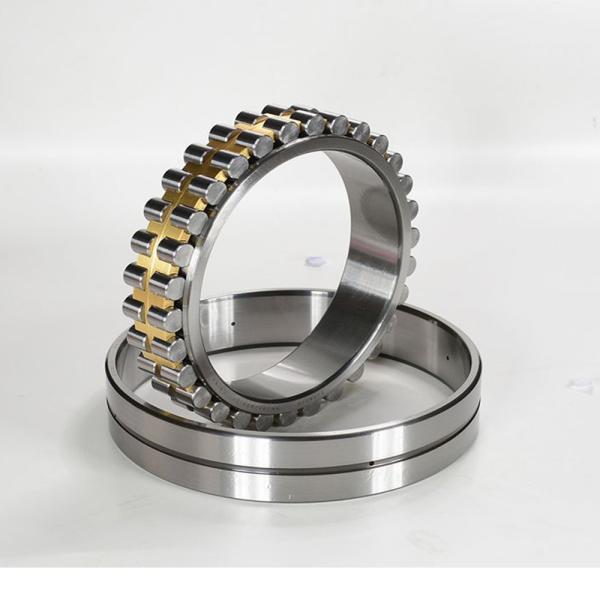

313891A Rolling Mill Bearing 150x230x156mm

Size:150x230x156mm Weight:24.00KG

Bearing Model

313891 A

Type

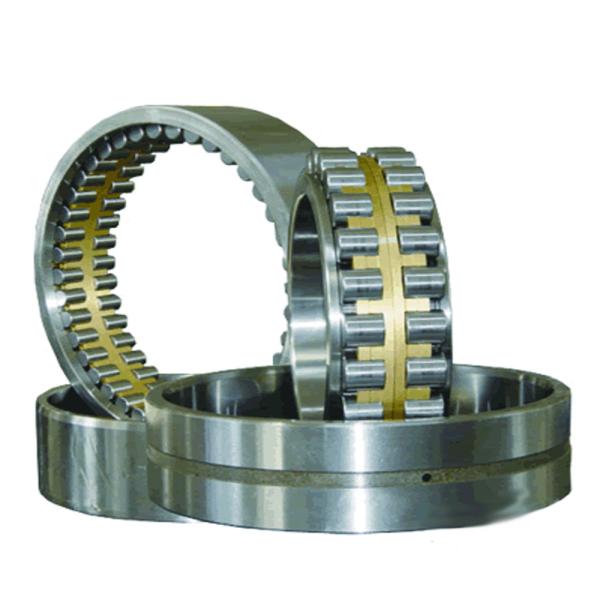

Four Row Cylindrical Roller / Rolling Mill Bearing

Size(dxDxB)mm

150x230x156mm

d (mm)

150

D (mm)

230

B (mm)

156

Weight /Mass (KG)

24.00

Package

Standard Carton Box / Wooden Pallet Case.

Deliver Time

Within 3 working Days.

(mm) (kN) (kg) Reference
Boundary Dimensions Basic Load Ratings Bearing Code 图例 Mass
d D B Fw r1.2 min r3.4 min Cr Cor New Old Refer. SKF FAG NSK NTN KOYO
90 140 70 105 1.5 1.1 242 425 FC182870 2 3.78
140 74 105 1.5 1.1 247 485 FC182874 672718 2 4.20
140 105 105 1.5 1.1 402 739 FC1828105 672718K 2 6.0
100 135 80 110 1.5 1.1 236 520 FC202780 2 3.0
140 70 111 1.5 1.1 238 484 FC202870 672820K 2 3.3
140 80 111 1.5 1.1 298 610 FC202880 672720K 2 3.8
140 104 111 1.5 1.1 400 820 FC2028104 672820 2 5.3 100RV1401
145 70 113 1.5 1.1 253 546 FC202970 672720 2 3.8 20FC1570
150 74 115 2 2 260 530 FC203074/YA3 1 4.7 4R2035
150 106 113 1.5 1.1 480 857 FC2030106 2 6.6
110 170 90 127 2.0 2.0 376 760 FC223490 672722K 2 7.5 22FC1790
170 92 127 2.0 2.0 380 762 FC223492 2 7.7
170 120 127 2.0 2.0 615 1100 FC2234120/YA3 672722 1 10.0 110RV1701
115 165 90 132 1.1 1.1 398 750 FC233390/YA3 3 6.5 23FC1690
120 165 87 134.5 2.0 2.0 365 725 FC243387/YA3 1 6.0 120RV1601 24FC1787
165 90 132 2.0 2.0 510 780 FC243390/YA3 1 5.6 537675
180 92 137 2.0 2.0 425 797 FC243692 672824 2 8.01 4R2437
180 105 136 2.0 2.0 530 880 FC2436105/YA3 672724 1 9.4 120RV1801 4R2438 4CR120
180 120 136 2.0 2.0 678 1080 FC2436120 2 11.2
215 174 147 2.1 2.1 1060 1600 FC2443174/YA3 1 27.2 120RV2101
215 102 148 2.1 2.1 710 1200 FC2443102 2 16.0
130 200 104 149 2.0 2.0 570 950 FC2640104/YA3 1 12.0 130RV2003 4R2628 26FC20104
200 110 150 2.0 2.0 608 1040 FC2640110/YA3 1 12.7 26FC20110
200 125 149 2.0 2.0 700 1190 FC2640125/YA3 672726 1 14.5 130RV2001 26FC20125
140 190 119 154 2.0 2.0 574 896 FC2838119 2 9.7 28FC19119W
210 100 158 2.0 2.0 605 985 FC2842100 2 12.2
210 106 158 2.0 2.0 615 1048 FC2842106 672828 2 13.0
140 210 116 160 2.0 2.0 640 1130 FC2842116/YA3 1 13.9 140RV2101 4R2823 28FC21116A
210 125 158 2.0 2.0 715 1265 FC2842125 672728 2 14.9
210 155 158 2.0 2.0 745 1330 FC2842155 2 18.0
145 210 155 166 2.0 2.0 735 1560 FC2942155/YA3 1 18.0 314625 511605 145RV2101 4R2906 29FC21155
225 156 169 2.0 2.0 835 1820 FC2945156/YA3 1 23.0 313924 A 538522 145RV2201 4R2904 313924
230 156 169 2.0 2.0 886 1827 FC2946156 2 24.7
150 210 120 166 2.0 2.0 687 1080 FC3042120 2 12.5
210 150 165 2.0 2.0 870 1780 FC3042150/YA3 1 15.9 30FC21150
220 120 167 2.0 2.0 702 1193 FC3044120 672930K 2 15.5
220 150 168 2.0 2.0 900 1700 FC3044150/YA3 1 19.3 150RV2201 4R3031 30FC22150A
225 120 169 2.0 2.0 702 1408 FC3045120 672730K 2 16.2
225 136 169 2.0 2.0 820 1460 FC3045136/YA3 1 19.0 150RV2204
225 150 168.5 2.0 2.0 960 1810 FC3045150/YA3 1 20.9 150RV2203
230 130 174 2.0 2.0 845 1520 FC3046130/YA3 1 19.7 150RV2301 4R3029 30FC23130-1
230 150 177 2.0 2.0 950 1790 FC3046150 2 22.8
230 156 174 2.0 2.0 965 1810 FC3046156/YA3 672730 1 24.0 313891 A 506962 150RV2302 4R3040 313891-1
230 168 178 2.0 2.0 845 1950 FC3046168/YA3 1 25.8 4R3042
250 150 177 2.5 2.5 885 1640 FC3050150/YA3 1 29.6 4R3039
160 220 180 177 2.1 2.1 940 2560 FC3244180 2 20.2 4R3224 32FC22180
225 120 177 2.1 2.1 639 1340 FC3245120 2 14.9
230 130 178 2.1 2.1 781 1320 FC3246130A/YA3 1 17.7 160RV2301 32FC23130
230 130 180 2.1 2.1 781 1340 FC3246130/YA3 1 17.0 314190 502894A 4R3226 314190
230 168 179 2.1 2.1 1040 2170 FC3246168/YA3 1 23.5 315189 A 510150 4R3232
230 168 180 2.1 2.1 1040 21700 FC3246168A/YA3 672832 1 23.5 160RV2302 4R3229 32FC23170A
230 180 178 2.1 2.1 1080 2270 FC3246180 1 24.6 160RV2303 32FC23180
240 120 183 2.1 2.1 745 1320 FC3248120/YA3 1 18.6 160RV2401 32FC24120W
240 124 183 2.1 2.1 750 1360 FC3248124 672732K 2 19.6
240 145 180 2.1 2.1 920 1600 FC3248145/YA3 1 23.0 160RV2403
160 240 168 183 2.1 2.1 1042 2310 FC3248168 672732 2 26.7
240 170 183 2.1 2.1 1080 2050 FC3248170/YA3 1 27.8 160RV2402 4R3225 32FC24170
240 195 182 3 3 1340 2600 FCDP3248195/YA3 9 33.0 514057
170 230 120 187 2.1 2.1 750 1580 FC3446120/YA3 1 14.3 170RV2301 4R3426 34FC23120
230 130 188.5 2.1 2.1 780 1680 FC3446130 1 15.6 313673 508370
230 160 188.5 2.1 2.1 940 2320 FC3446160/YA3 1 18.9 567622
230 180 186 2.1 2.1 1040 2690 FC3446180 2 24.5
240 130 190 2.1 2.1 920 1830 FC3448130/YA3 1 18.7 BC4B 635122
240 156 189 2.1 2.1 983 2070 FC3448156 2 22.2 4R3429 34FC24156
240 160 190 2.1 2.1 1000 2130 FC3448160/YA3 1 23.0 170RV2402 4R3423
250 150 192 2.1 2.1 980 2016 FC3450150 2 25.0
250 168 192 2.1 2.1 1020 2320 FC3450168/YA3 1 28.0 170RV2501 34FC25168
250 170 192 2.1 2.1 1180 2320 FC3450170/YA3 672734 1 28.6 170RV2502 34FC25170
255 180 193 2.1 2.1 1300 2500 FC3451180/YA3 1 30.5 170RV2503 4R3425
260 120 195 2.1 2.1 860 1752 FC3452120 672734K 2 23
260 150 195 2.1 2.1 1030 1840 FC3452150/YA3 1 28.8 170RV2602 34FC26150
260 170 195 2.1 2.1 1035 2096 FC3452170 2 32.7
260 192 195 2.1 2.1 1090 2240 FC3452192 672734K1 2 36.9
260 225 196 2.1 2.1 1650 3360 FC3452225 2 43.6 313587 B 505470 4R3431
260 225 193 4 4 2160 4300 FCDP3452225/YA6 10 45.0 535331
180 250 120 200 2.1 2.1 610 1578 FC3650120 2 18.0
250 130 200 2.1 2.1 716 1922 FC3650130 2 19.5
250 156 198 2.1 2.1 880 2230 FC3650156A 1 23.4
250 156 200 2.1 2.1 880 2230 FC3650156/YA3 1 23.4 180RV2501 4R3625 36FC25156A
250 168 202 2.1 2.1 885 2470 FC3650168/YA3 1 25.6 4R3639
260 120 202 2.1 2.1 735 1577 FC3652120 672836 2 21.0
260 124 202 2.1 2.1 735 1577 FC3652124 2 21.7
260 156 198 2.1 2.1 835 2200 FC3652156 2 27.3
180 260 160 202 2.1 2.1 880 2230 FC3652160 2 28.4
260 168 202 2.1 2.1 990 2300 FC3652168/YA3 672736 1 29.5 313812 507536 180RV2601 4R3628 313812W
265 180 203 2.1 2.1 1180 2395 FC3653180A 1 33.7 180RV2603 36FC27180
265 180 204 2.1 2.1 1040 2649 FC3653180/YA3 1 33.8 180RV2602 4R3618
280 180 206 2.1 2.1 1287 2995 FC3656180/YA3 1 41.0 524372
280 180 207 2.1 2.1 1287 2995 FC3656180A 2 41.4
280 200 205 2.1 2.1 1620 2990 FC3656200/YA3 1 45.7 36FC28200
190 260 168 208 2.1 2.1 1140 2520 FC3852168A 672838 2 24.9
260 168 212 2.1 2.1 1140 2600 FC3852168/YA3 1 27.0 313651 507735 190RV2601 4R3820 38FC26168-1
265 124 213 2.1 2.1 819 1921 FC3853124 2 21.0
270 166 212 2.1 2.1 1034 2460 FC3854166 2 30.4
270 168 212 2.1 2.1 1034 2460 FC3854168 672738K 2 30.8
270 170 213 2.1 2.1 1240 2910 FC3854170/YA3 1 31.7 190RV2702 4R3818 38FC27170A
270 200 212 2.1 2.1 1510 3310 FC3854200/YA3 672738 1 37.5 314199 B 508657 190RV2701 4R3821 314199
280 200 214 2.1 2.1 1720 3370 FC3856200/YA3 1 42.0 314049 A 510199 190RV2801 4R3823
200 250 200 215 2.0 2.0 886 2360 FC4050200 2 23.2 200RV2521
265 180 217 2.0 2.0 1200 2790 FC4053180/YA3 1 26.9 40FC27180
270 120 222 2.1 2.1 617 1630 FC4054120 2 19.6
270 170 222 2.1 2.1 1170 2580 FC4054170/YA3 1 28.5 314553 522742 4R4039 314553
280 152 222 2.1 2.1 1000 2320 FC4056152 2 29.5 4R4054 40FC28152BW
280 170 222 2.1 2.1 1120 2300 FC4056170/YA3 1 33.5 314385 507344 4R4048 40FC28170
280 170 223 2.1 2.1 1120 2300 FC4056170A 1 33.2 549864 200RV2804
280 188 222 2.1 2.1 1210 2720 FC4056188 672740K 2 36.0 40FC28188
280 190 223 2.1 2.1 1350 3050 FC4056190/YA3 1 37.1 200RV2803 4R4026 40FC28190A
200 280 200 222 2.1 2.1 1410 3200 FC4056200/YA3 1 39.0 313893 508726 200RV2802 4R4037 313893-1
280 200 224 2.1 2.1 1410 3200 FC4056200A/YA3 1 39.4 200RV2801 4R4027 40FC28200
290 130 226 2.1 2.1 945 1916 FC4058130 2 38.5
290 192 226 2.1 2.1 1410 2980 FC4058192/YA3 672740 1 42.8 313811 512580 200RV2901 4R4041 313811
200 290 202 226 2.1 2.1 1540 3110 FC4058202 2 43.4
310 130 229 2.1 2.1 1113 2254 FC4062130 2 36.3
310 200 229 2.1 2.1 1670 3625 FC4062200/YA3 1 55.8 524373
310 230 229 2.1 2.1 1840 3500 FCD4062230/YA3 5 64.0 313639/VJ202 503901 200RV3102
310 265 227 3 3 2700 4100 FCDP4062265/YA3 9 73.0 514958 40FC31265W
320 216 231 2.1 2.1 2120 3900 FC4064216/YA3 1 69.9 200RV3231 4R4028
210 290 192 234 2.1 2.1 1400 3240 FC4258192 2 38.2
290 192 236 2.1 2.1 1400 3300 FC4258192A/YA3 1 41.0 313646 507628 210RV2901 4R4206 42FC29192
300 170 234 2.1 2.1 1320 2900 FC4260170 2 38.8
300 210 234 2.1 2.1 1510 3700 FC4260210 672742 2 47.9 42FC30210
220 290 192 239 2.1 2.1 1190 3350 FC4458192/YA3 1 33.8 4R4413
300 160 245 2.1 2.1 1050 2600 FC4460160/YA3 1 32.8 4R4419
300 190 240 2.1 2.1 1220 3320 FC4460190 2 39.3
300 192 242 2.1 2.1 1220 3320 FC4460192 672944 2 39.7
300 200 240 2.1 2.1 1800 3900 FCD4460200 2 41.0
310 190 246 2.1 2.1 1320 3450 FC4462190 2 45.0
310 192 246 2.1 2.1 1540 3450 FC4462192/YA3 672744 1 46.0 313839 507333 4R4426 313837A
310 192 247 2.1 2.1 1540 3450 FC4462192A/YA3 1 46.0 220RV3101 4R4410 313837-1
310 204 247 2.1 2.1 1570 3750 FCD4462204/YA3 1 49.8 4R4425
310 215 242 2.1 2.1 1650 3850 FCD4462215/YA3 1 51.5 4R4420
310 225 244 2.1 2.1 1740 3900 FCD4462225/YA3 1 54.5 313894 B 514461 4R4449 4CR220W
310 225 245 2.1 2.1 1740 3900 FCD4462225A/YA3 1 54.9 506869 220RV3102 4R4416 44FC31225
310 265 245 2.1 2.1 1970 4700 FCD4462265 2 63.5
320 160 245 2.1 2.1 1200 2600 FC4464160/YA3 1 46.5 4R4428
320 192 246 2.1 2.1 1600 3450 FC4464192 672744K 2 51.5
320 210 246 2.1 2.1 1800 3700 FCD4464210/YA3 1 57.0 509216 220RV3203 4R4444 44FC32210
320 210 248 2.1 2.1 1790 3650 FCD4464210A/YA3 1 56.0 220RV3201 4R4429 44FC32210-1
330 230 249 2.1 2.1 2050 4000 FCD4466230/YA3 5 68.5 314889/VJ202 541452
340 180 256 3 3 1500 2750 FC4468180/YA3 1 59.0 44FC34180A
220 340 192 246 2.1 2.1 1820 3600 FC4468192 672844 2 64.2
340 210 250 2.1 2.1 1910 3850 FCD4468210 4 70.5
340 290 250 2.1 2.1 2980 5010 FCDP4468290 9 96.5 525147
345 210 250 2.1 2.1 1910 3850 FCD4469210 4 73.8
230 330 170 260 2.1 2.1 1150 2970 FC4666170 2 47.4
330 206 258 2.1 2.1 1640 3720 FC4666206A/YA3 1 58.6 4R4614
330 206 260 2.1 2.1 1620 3690 FC4666206/YA3 672746 1 58.0 313824 508727 230RV3301 4R4610 313824
340 260 261 2.1 2.1 2100 4590 FC4668260/YA3 1 81.0 230RV3401 4R4611 46FC34260
365 250 266 2.1 2.1 2300 4890 FCDP4673250 9 100 313581 A 529113 230RV3601 313581AW
240 330 180 265 2.1 2.1 1460 3490 FC4866180/YA4 1 49.5 635194 504547
330 220 264 2.1 2.1 1540 3850 FC4866220 672748 1 56.4 4R4819 48FC33220
330 220 270 2.1 2.1 1500 3700 FC4866220A 2 58.0 313921 508368 240RV3301 4R4811 312943/1YD
340 192 268 2.1 2.1 1474 3230 FC4868192 672748K 2 55.4
340 220 268 3.0 3.0 1670 3530 FC4868220/YA3 1 71.0 513703 240RV3403 48FC34220
350 220 270 3.0 3.0 1780 3870 FC4870220 2 71.0
360 218 270 3.0 3.0 2130 4060 FC4872218/YA3 1 76.8 48FC36218
360 220 272 3.0 3.0 1920 3920 FC4872220 1 78.8 240RV3601
360 220 274 3.0 3.0 1860 3900 FC4872220A 2 79.6
360 290 270 3.0 3.0 2850 5670 FCDP4872290/YA3 9 100.0 514959 48FC35290W
250 340 170 274 3.0 3.0 1390 3500 FC5068170 2 45.0
340 220 274 3.0 3.0 1330 3120 FC5068220 2 52.8
340 230 270 3.0 3.0 1700 4350 FCD5068230 4 65.0
350 220 274 3.0 3.0 1670 3640 FC5070220A 4 58.0
350 220 278 3.0 3.0 1730 3990 FC5070220/YA3 672750 1 65.0 250RV3501 4R5008 50FC35220
350 230 278 3.0 3.0 1900 4350 FCD5070230 4 68.7
360 220 282 3.0 3.0 1810 4240 FC5072220 672750K 4 73.0
260 360 192 288 3.0 3.0 1610 3660 FC5272192 2 60.0 52FC36192W
360 200 287 3.0 3.0 1880 4110 FC5272200/YA3 1 62.0 52FC36200

Send your message to this supplier
Send Now

313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT

Ask Latest Price
Product Detail
Brand Name :
WHJB
Model Number :
313891 A 506962 150RV2302 4R3040 313891-1
Certification :
FORM A
Place of Origin :
China
MOQ :
10
Price :
$ 180/pcs
Contact Supplier
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT
313891 A FOUR ROW CYLINDRICAL ROLLER BEARING 150RV2302 FOR METALLURYG ROLLING MILLS STEEL PLANT

DALIAN MOTION ENGINEERING CO.,LTD.

Site Member
9 Years
liaoning, dalian
Since 2006
Business Type :
Manufacturer, Trading Company
Main Products :
Slewing Ring Bearing, Spherical Roller Bearing, Tapered Roller Bearing
Total Annual :
1-5 Million
Employee Number :
5~10
Certification Level :
Site Member
Discover similar products
View More

Find Similar Products By Category:

Supplier Homepage Products Cylindrical Roller Bearing
MachineU China Products Machinery
Contact Supplier
Submit Requirement
