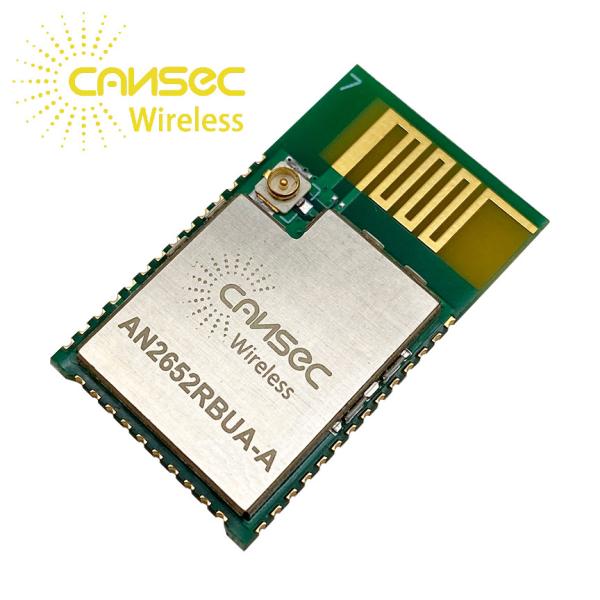

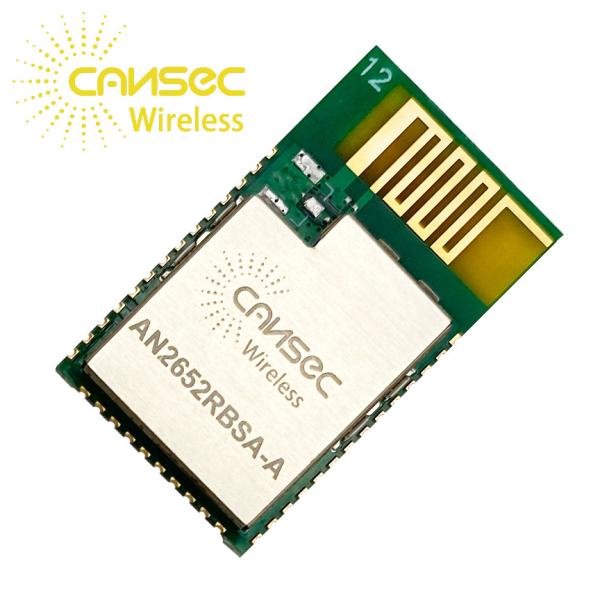

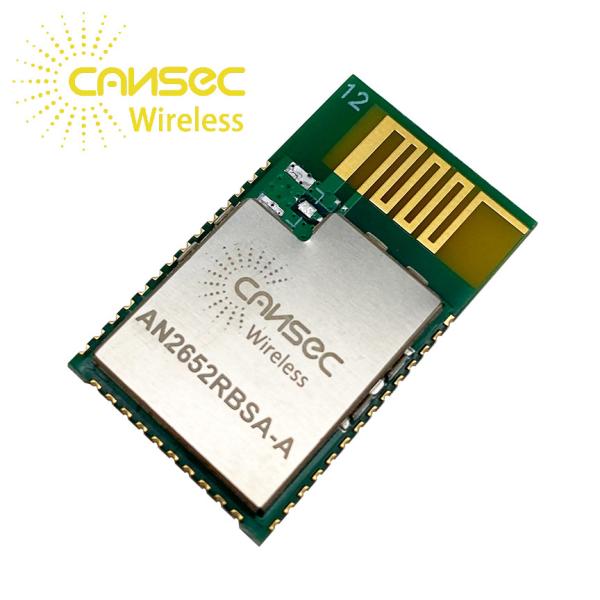

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
Specifications
Brand Name :
Cansec Wireless
Model Number :
AN2652RBUA-A / AN2652RBSA-A
Place of Origin :
Beijing
MOQ :
100
Price :
USD 4.40$ per piece
Payment Terms :
T/T
Supply Ability :
2000000 pieces per year
Delivery Time :
3~6 weeks
Packaging Details :
Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg
size :
20*30*3mm
TX Power :
868MHz:12.5dBm /2.4G:3dBm
RX sensitivity :
868MHz:-96dBm /2.4G:-96dBm
TX current :
868MHz:41mA /2.4G:11.1mA
RX current :
868MHz:8.5mA /2.4G:8.5mA
Standby current :
3μA
Antenna type :
Chip Antenna/IPEX Connector
Chipset :
cc2652 by TI
Description

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset

Parameter Min Typ Max Unit
Operating Voltage 1.8 - 3.8 V
Operating Temperature -20 - +70 ℃

Current

Consumption

 Sleep Mode - 1 uA
Receive mode - 6.9 - mA
Transmit Mode - 9.6 - mA
TX Power (For Carrier) - 4 dBm
RX Sensitivity (For Lora Modulation) - - -97 dBm
Distance 150 m

AN2652RB ZigBee 3.0 Thread BLE Multi-Protocols Module with TI CC2652 chipset

The CC2652R device is a multi-protocol wireless 2.4GHz MCU for Thread, Zigbee®, low-power Bluetooth® 5, IEEE 802.15.4g, IPv6-capable smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including TI 15.4-Stack.

The CC2652R device is a member of the SimpleLink™ MCU platform for cost-effective, ultra-low power, 2.4GHz and sub-1GHz RF devices. Very low active RF and microcontroller (MCU) current and sleep currents below 1μA and parity-protected RAM retention of up to 80KB provide excellent battery life and support energy harvesting on small coin cells Long-running work in the application.

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module

868Mhz ZigBee Ble Module TI CC2652 Chipset ZigBee 3.0 Module
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
