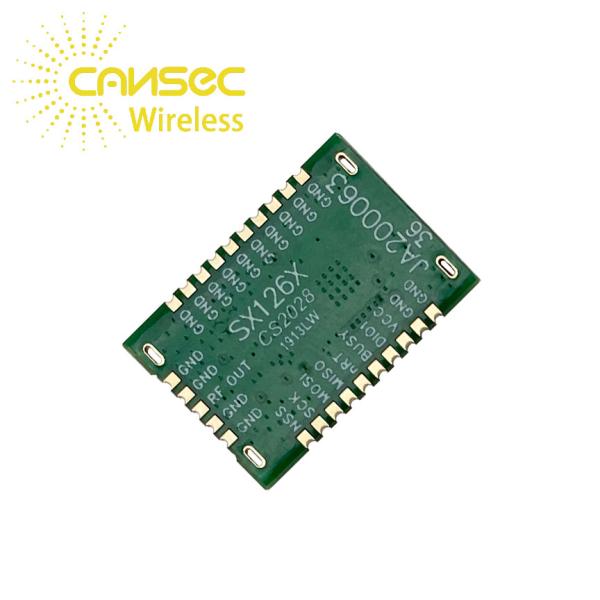

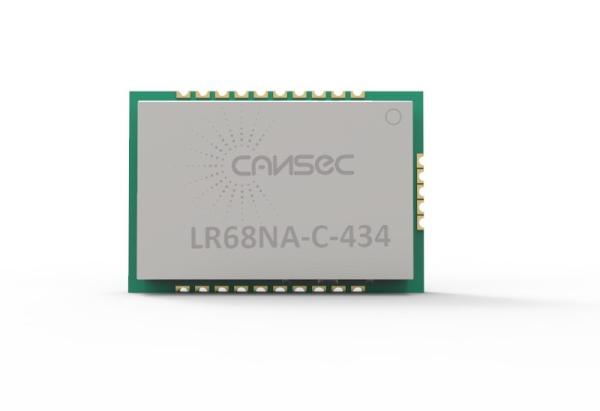

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Specifications
Brand Name :
Cansec Wireless
Model Number :
Semtech LLCC68
Place of Origin :
Beijing
MOQ :
1000
Price :
USD 2.95$ per piece
Payment Terms :
T/T
Supply Ability :
20000000 units per year
Delivery Time :
5-8 weeks
Packaging Details :
Three layers of protection anti-static bag & moisture-proof & cardboard box ensure transportation safety
Chipset :
Semtech LLCC68
Application :
IoT
Size :
13*19*2.9mm
Operating Temperature :
-20 - 70℃
Operating Voltage :
1.8-3.7V
TX Power :
21dBm
RX Sensitivity :
-148dBm
Sleep Current Consumption :
0.5μA
Frequency :
434, 868, 915 MHz
Description

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

New Released 4.8Km LoRa IoT Module Cansec LR68Na-C 20dBm Cost Effective Semtech-Llcc68 LoRa 433 Mhz Module

Parameter
Min
Typ
Max
Unit
Operating Voltage
1.8
-
3.7
V
Operating Temperature
-20
-
+70
℃
Current
Consumption
Sleep Mode
-
0.5
1.5
uA
Receive mode
-
4.9
-
mA
Transmit Mode
-
120
-
mA
TX Power (For Carrier)
-
20.5
21
dBm
RX Sensitivity (For Lora Modulation)
-
-
-148
dBm

New Released 4.8Km LoRa IoT Module Cansec LR68Na-C 20dBm Cost Effective Semtech-Llcc68 LoRa 433 Mhz Module

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

1. The LR68-NA-C module is sub-GHz radio transceivers that are ideal for long-range wireless applications. These devices support LoRa® modulation for LPWAN use cases and (G) FSK modulation for legacy use cases. The devices are highly configurable to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.

2. The devices are designed to comply with the physical layer requirements of the LoRaWAN specification released by the LoRa Alliance™.
3. The radio is suitable for systems targeting compliance with radio regulations including but not limited to ETSI EN 300 220, FCC CFR 47 Part 15, China regulatory requirements and the Japanese ARIB T-108. Continuous frequency coverage from 150 MHz to 960 MHz allows the support of all major sub-GHz ISM bands around the world.
Features
LoRa and FSK Modem
170 dB maximum link budget
Wide-Supply Voltage: VBAT:1.8 to 3.7V
RF output up to +21 dBm
Programmable bit rate
Integrated DC-DC converter and LDO
High sensitivity: down to -148 dBm
80 dB blocking immunity at 1 MHz offset
Co-channel rejection of 19 dB in LoRa mode
Fully integrated synthesizer with a resolution of 122 Hz
FSK, GFSK, MSK, GMSK and LoRa modulation
Built-in bit synchronizer for clock recovery
Automatic Channel Activity Detection (CAD) with ultra-fast AFC
Preamble detection
Package and Operating Conditions:
3.4 mm Pitch, 17 mm×19mm Stamp Package for Easy Assembly and Low-Cost PCB Design
Operating Temperature Range: -20℃ to
+70℃
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm

Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
Cansec LR68Na-C 20dBm Lora Module 433Mhz 13*19*2.9mm
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
