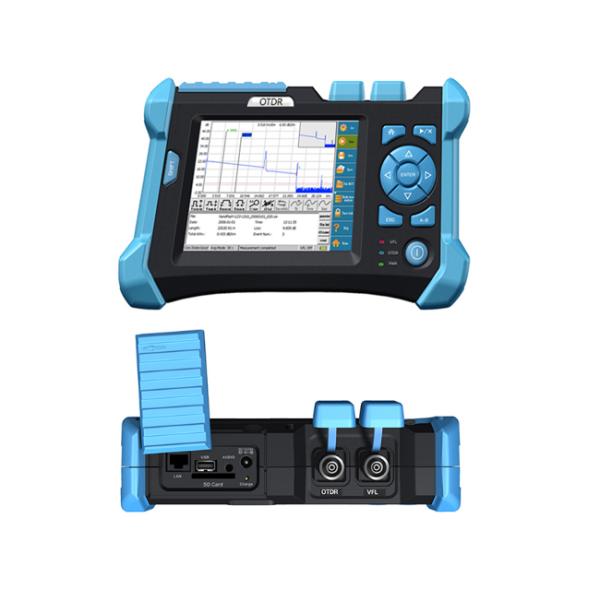

Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer
Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer
Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer
Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer
Specifications
Brand Name :
WINBO
Model Number :
SAV-7300 PLUS
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
Screen :
1280*800 resolutions
Wavelength :
650nm
Resolution :
MAX 4K
HDMI :
Support
PoE :
Support
Wifi :
Support
Battery :
Lithium battery; continuing working duration ≥ 8 hours
TV System :
PAL/NTSC
Description

Multi-wavelength Measurement HD IP CCTV Tester Optical Time Domain Reflectometer

Features

● 38dB high dynamic range

● ≤ 2m extra- short event dead zone

● 0.05m high distance resolution,128k sampling points

● Fast auto measurement, one-button operating

● Test up to four wavelengths with a single unit

● Communication light check automatically

● Remote function via Ethernet

● USB interfaces, supporting USB stick and printer and direct cable download to PC via ActiveSync

● Supporting Bellcore GR196 file format in writing or reading

● Built-in lithium battery with high capacity for over 8 hours of operating life

● Integrated Visible fault locating (VFL)

Specification

Model SAV-7300 Plus
Wavelength (nm) 850/1300 1310/1550 1310/1490/1550 1625
Dynamic range (dB) 23/21 32/30 34/32 36/34 38/36 34/32/32 38/36/36 304 325 344 365
Pulse width (ns) 5,20,40,80,160,320,640,1280 5,20,40,80,160,320,640,1280,2560,5120,10240,20480
Event dead zone (m)3 2m 2m
Attenuation dead zone (m)3 9m 9m
Linearity (dB/dB) ±0.05 dB/ dB
Loss threshold (dB) 0.05
Loss resolution ratio (dB) 0.01
Sampling resolution ratio (m) 0.125 to 8
Sampling point 32K
Distance uncertainty (m) ±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km) 0.3 to180
Typical real-time refreshing duration (s) 0.2
Memory capacity of trace SD Card (2G), > 10000 pieces
Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
General specification Interface category
Dimension (H×W×D) 150×235×66 Optical interface FC/UPC (PC, and APC are selectable)
Weight 1.5kg Data interface USB interface, SD card interface
Temperature Running temperature -10℃ to 50℃
Memory temperature -40℃ to 70℃
Relative humidity 0% to 95% (non condensation) 650nm
Power supply Lithium battery; continuing working duration ≥ 8 hours ≥-3
Warranty period 12 months 3km
Remarks:
1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.
2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.
3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.
4. Dynamic range measured when there is filter.
5. Dynamic range measured when there is no filter.


Multi - wavelength Measurement IP HD CCTV Tester Optical Time Domain Reflectometer
