Full HD 720P WiFi CCTV Camera Kit , 4 Channel Wireless Cctv System 4TB Capacity
Full HD 720P WiFi CCTV Camera Kit , 4 Channel Wireless Cctv System 4TB Capacity
Full HD 720P WiFi CCTV Camera Kit , 4 Channel Wireless Cctv System 4TB Capacity
Full HD 720P WiFi CCTV Camera Kit , 4 Channel Wireless Cctv System 4TB Capacity
Specifications
Brand Name :
WINBO
Model Number :
SAV-W04-100
Certification :
CE-RED, ROHS,GS
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sets a month
Delivery Time :
within 3-7 working days upon receipt of payment(sample order)
Packaging Details :
Neutral factory box
Network Video :
4CH
Resolution :
720P
Compression :
H.264
IR Distance :
20 Meters
Capacity :
Max 4TB
Waterproof :
IP66
Nigth Vision :
Auto Switch
Color :
Black
Description

Motion detection Full HD 720P WiFi CCTV Camera Kit with Drawer Hard Drive NVR

Key Features:

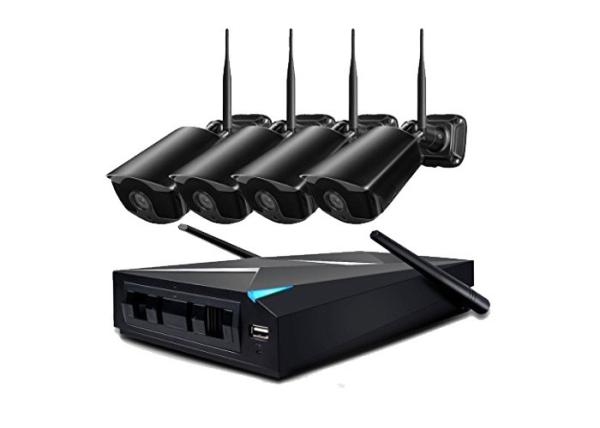

  • 720P 4 pcs Wifi Camera and 1pcs Wifi NVR
  • Built-in WIFI module with high-performance and high stability
  • Automatically Connection between NVR and IPC
  • Support video preview/recording/playback/Motion detection recording
  • Support the mixed use of wireless and wire,support different scene
  • Supports monitoring via computer, iPhone, and most Android smartphones on the market.
  • Plug and play, P2P service
  • Automatic connection with IP camera, save installation cos

Application

SAV-W04-100 can be used in various kinds of surveillance scenes, such as home, office, supermarket, garden, etc.

Specifications

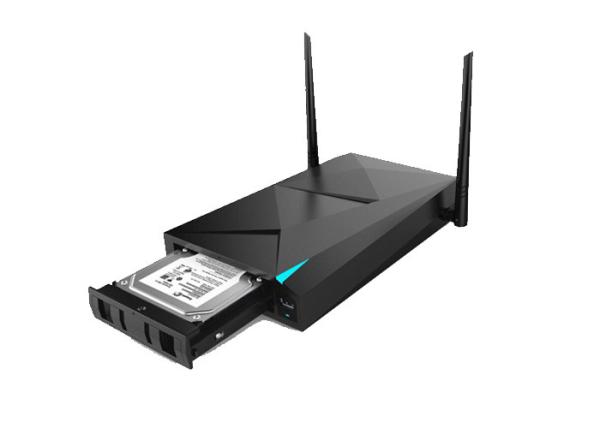

WiFi NVR recorder
Network video input 4 channels 1 megapixel
Operating system Embedded Linux
Main processor HI3520D
Operating interface 24-bit true color graphical menu interface with mouse operation
Image decoding Low/ Medium/ High
Video mode Alarm/ Manual/ Motion detection/ timing
Local playback 1/4
Backup method USB/ Mobile hard disk
Audio input 1
Network Interface 1RJ45 10M/100M adaptive Ethernet port 5DB copper antenna
Hard disk interface 1 SATA interface (maximum support for 6T hard drives)
Working environment 0℃~50℃;Humidity less than 90% (no condensation)
Sensor 1/4” CMOS
Minimum illumination Color:0.05Lux@ F1.2; B/W: 0.01Lux@ F1.2
Night vision distance 30m
Lens type Fixed
White balance Auto/ Manual
Digital noise reduction 3D DNR
Video compression H.264
Compressed bit rate 32 Kbps~6Mbps(960P)32Kbps~4Mbps(720P)
Support video format 720P/960H/360P
Image setting Adjustable brightness, contrast, saturation,
gain, shutter, white balance, etc.
AD sampling accuracy 12 bit
P2P function Mobile/ Computer/ PAD/ Web
General function One-click recovery, dual stream, heartbeat, mirroring,
video masking, anonymous access, etc.
Power supply DC12V/1A
Working environment -10℃~50℃,30%~80%RH
Dimension 260(L)*224(W)*48(H)mm
Wireless transmission distance 400 meter (without wall)
system resource Simultaneous multi-channel real-time recording,
real-time playback, multi-channel multi-person network operation, USB backup
Screen display 1/4
Motion Detection 396 (22*18) detection areas can be set per screen;
sensitivity can be set
Playback quality 960P/720P/960H/360P
Video output 1 HDMI,1 VGA
USB interface 1*USB 2.0
Power supply DC12V/2A
Net weight 1000g(Not include HDD)
WiFi camera
Resolution 1 megapixel,1280(H)*720(V)
Electronic shutter NTSC: 1/30---1/10000S; PAL: 1/25---1/10000S
focal length 4mm/ 6mm optional
Day and night conversion IRC/ Manual
Gain control Auto/ Manual
Frame rate 50HZ: 25fps; 60HZ: 30fps
Mirror Support horizontal, vertical, diagonal, normal mode mirroring
Supporting agreement TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP,
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X
Intelligent alarm Motion detection, occlusion alarm, video loss
Communication Interface 1 RJ45 10M / 100M adaptive Ethernet port
Protection level IP66
Net weight 500g
