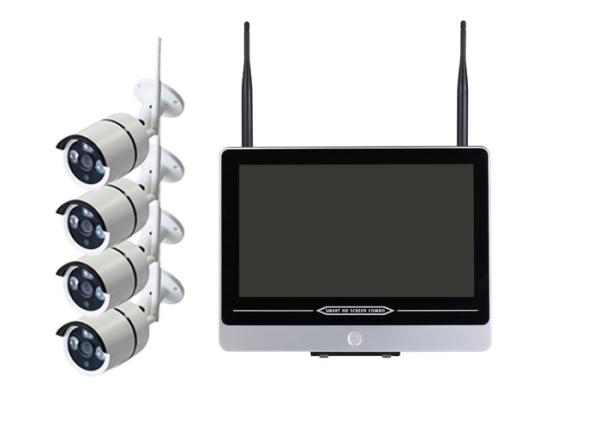

Waterproof 4 Channel Wireless Cctv System , 4 Camera Cctv Kit 2.4G Wireless NVR
Waterproof 4 Channel Wireless Cctv System , 4 Camera Cctv Kit 2.4G Wireless NVR
Waterproof 4 Channel Wireless Cctv System , 4 Camera Cctv Kit 2.4G Wireless NVR
Waterproof 4 Channel Wireless Cctv System , 4 Camera Cctv Kit 2.4G Wireless NVR
Specifications
Brand Name :
WINBO
Model Number :
SAV-W12LN04K20
Certification :
CE-RED, ROHS,GS
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000 sets a month
Delivery Time :
within 3-7 working days upon receipt of payment(sample order)
Packaging Details :
Neutral factory box
Compression :
H.265
Resolution :
1080P
Max Capacity :
1SATA 4TB
USB Interface :
2*USB 2.0
Signal System :
PAL/NTSC
Day&Night :
Auto
LCD Screen :
1280*1024
Level of Protection :
IP66
Description

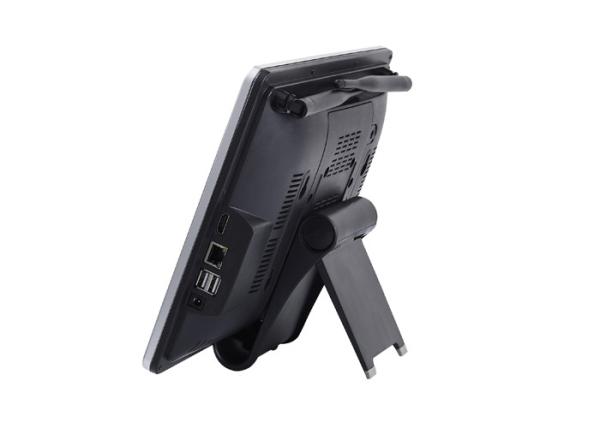

Waterproof WiFi CCTV Camera Kit Combo With 12.5 Inch LCD 2.4G Wireless NVR

Quick Detail

The WIFI NVR Kits SAV-W12LN04K20 is adopting the automatic password generation mechanism to ensure that the monitored video will not be eavesdropped if the default password is used. It is very simple to operate and suitable for all kinds of scenes. The Wifi Kits are loved by a majority of users.

Features

  • H.265 True 4 X 1080P HD IP cameras are exceptionally smooth, night vision is up to 100ft in the dark with IR-CUT double filter lens.
  • Motion Alerts: Push Notifications Instantly When Motion are Detected
  • High Resolution LCD Screen Resolution up to 1280*1024
  • Wireless 4 channels NVR plug and play system. Easy to set up and DIY Installation. only need to plug them in power to start working with AUTO-PAIR technology.
  • Remote Viewing Anywhere Anytime. You can view the cameras remotely on your smartphone, iPad or PC anywhere anytime once the system is set up.

Specifications

Model SAV-W12LN04K20
Wireless NVR Specification
Operating System Embedded Linux OS
LCD Screen 12.5 inch 1280*1024 LCD Screen
Network Video 4CH
Network video input broadbank 20 Mbps
AUdio Bitrate 64 Kbps
HDMI input 1 ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
VGA output 1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
Video Resolution D1/720P/960P/1080P
synch-playback 4 CH
Video/Capture mode Maual, Time, Motion, Alarm
Playback mode Real time, Routine, Event
Backup USB backup
Alarm Input 4 CH (optional)
Alarm Output 1ch (optional)
Type 1*SATA interface
Max Capacity 4 TB at most for each
Network 1 adaptable RJ45 10M/100M, 1 WIFI interface
USB 2 USB 2.0
Protocol UPnP (play&plug)/SMTP (email survice) / PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…
Power Supply DC12V 3A
Power Consumption (W) ≤5W(Without HDD)
Operate Temperature (°C) -10℃~+55℃
Working Humidity (%) RH 10%~90%
Size 257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD) ≤1Kg
IP Camera Specification
Sensor 1/3" Progressive Scan Sensor
Signal System PAL/NTSC
Resolution 1080P 16 : 9 High Defination
Minimum illumination Color: 0.1 Lux; B/W: 0.01 Lux
Shutter 1/25s to 1/25,000s
Lens 3.6mm
OSD Date Time & Title
White Balance Auto
Day&Night Auto / Color / BW
3D-DNR Auto
Mirror/Flip On / Off
Frame Specification Three Streaming at the Same Time:
H.264 128x720@30fps or below
H.264 640x480@30fps or below
S/N > 39.1 Db
Interface RJ45 / WIFI 802.11b/g/n
Anti-thunder Level Standard IEC61000-4-5
Working Temperature -20℃ to +60℃ / 20% to 90% RH
Power Input DC12V-1A
Power consumption ≤6W
Size 205(L)×70(W)×55 (H)mm
Weight 500g
Level of Protection IP66

Advantages
  • Wireless Connection, Plug and Play.
  • Further Distance And More Stable
  • High-Definition Even Under Backlight Condition
  • Motion Detection And Intrusion Alarm
  • Real Time Remote Monitoring By Mobile

Application
SAV-W12LN04K20 suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, office, house and schools.

Packing List

1 PCS * 4CH WIFI 12.5inch LCD NVR
4 PCS * WIFI IP camera
4 PCS * Adaptor for 4pcs IP camera (12V 1A)
1 PCS * 12V 2A Adaptor for WIFI NVR (12V 2A)
1 PCS * USB Mouse
1 PCS * User Manual
