Specifications
Brand Name :
WINBO
Model Number :
SAV-IPC4300 Plus series
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
Screen :
960*540 definition
Video Mode :
4k/H.265/H.264
HDMI output :
1 channel HDMI input, support 1080P
PoE :
Support
Wifi :
Support
Battery :
5000mAh
External power supply :
DC 12V 2A
Working Temperature :
-10℃---+50℃
Description

4.5 Inch Touch Screen HD CCTV Tester 8MP TVI CVI 5MP AHD and EX-SDI 4K IP test

Features

  • 4.3 inch IPS touch screen, 960*540 resolution
  • 8MP TVI, 8MP CVI, 5MP AHD & EX-SDI test*
  • H.265/H.264, 4K video display via mainstream
  • Dahua, Hikvision, Axis etc ONVIF camera test
  • Built in WIFI, create WIFI hotspot
  • HDMI input & output, support 1080P
  • DC12V 2A, DC48V PoE power output
  • Rapid ONVIF, auto view video,create testing report
  • RJ45 cable TDR test, cable quality test
  • Chrome browser, can set cameras parameters
  • TesterPlay: Tester, mobile phone, PC display at the same time

Specification

LCD Item series SAV - IPC4300 Plus series
Display New 4.3 inch IPS touch screen , 960*540 resolution
Video Mode CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Autoadapt)
Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement*
PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
CVBS loop test the tester send and receive color bar generator signal , check BNC cable
IP camera test IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
4k/H.265/H.264 Rapid Video Auto view the video, create testing report
Hik test tool activate hikvision camera , modify the user name, password and IP parameters
Dahua test tool Dahua camera test, modify the user name, password and IP parameters
IP& CVBS test IP& CVBS test at the same time ,converter test from analog to digital with dual test window

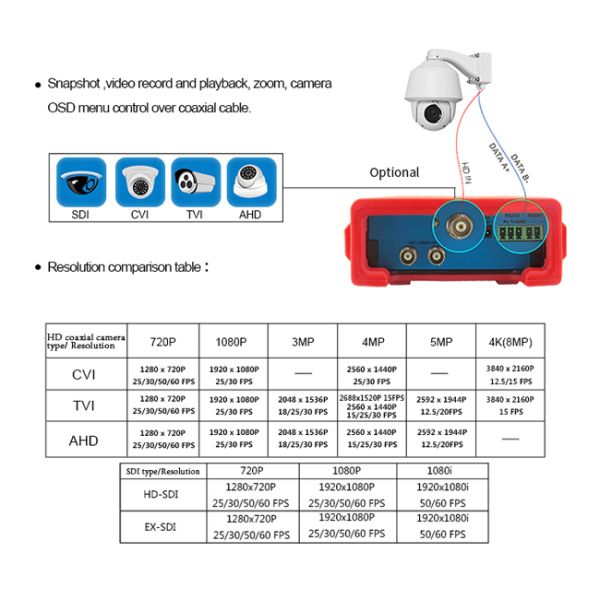

Coaxial HD test * 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu *
8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu *
5MP AHD test,2560x1944P 12.5F/20F, UTC control d call OSD menu *
HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS *
HDMI input * 1 channel HDMI input, support 1080P *
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back
Analog Video out Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
PoE power output 48V PoE power output, max power 24W
Power output DC12V power DC12V /2A power output
Cable test TDR cable test * BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM *
Cable tracer * search BNC cable, network cable and telephone cable from the mess cables *
UTP cable test Test UTP cable connection status and display on the screen. Read the number on the screen
RJ45 cable TDR test Test cable pair status, length, attenuation, reflectivity, impedance, skew etc.measurement range 180M.
TesterPlay screen projection:tester, mobile phone and PC display at the same time (For android version mobile phone)
Network test Trace route, Link monitor , DHCP server, port flashing , Ping test
Wi-Fi Built in WIFI,speeds150M,display wireless camera image
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device,also can send hexadecimal
PoE test Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down menu You can select PoE power switch ,IP setting,CVBS, LAN info , HDMI IN functions etc in any interface
External power supply DC 12V 2A
Battery Built-in 7.4V Lithium polymer battery ,5000mAh
Rechargeable After charging 5~6 hours, normal working time 10 hours
Operation setting OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off 1-30 (mins)
Working Temperature -10℃ --- +50℃
Working Humidity 30%-90%
Dimension/Weight 215mm x 127mm x 53mm / 0.82kg
Below are customizable functions, , if add Digital multimeter and cable tracer function into tester NO MOQ .If add other below functions ,QTY MOQ is 50pcs (If add any functions into tester, you need pay addition cost),if you add one of “A/D/H/S” ,then cannot choose “T”
M Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement
O Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ～ +10 dBm, for optical power testing and Fiber link loss relative measurement
V Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber’s bending and breakage, test range 10KM
T TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM
A AHD camera test, 5MP AHD test,2560x1944P 12.5F/20F, UTC control/ call OSD menu
H TVI camera test: 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control/ call OSD menu
D CVI camera test : 8MP CVI camera test,3840 x 2160P 12.5/15 FPS,UTC control d call OSD menu
S HD SDI/EX-SDI camera test ,support 1080P 50/60 FPS
L Video level meter :PEAK ,SYNC signal level, color burst chroma level measurement
C Cable tracer :search BNC cable, network cable and telephone cable from the mess cable

Note: “*” sign mean functions are customizable

Application

  • CCTV system installation and maintenance
  • Network cabling project installation and maintenance
  • Dome camera, 4K H.265 IP camera testing
  • Video transmission channel testing
  • PTZ controller
