4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
4K H.265 HD CCTV Tester , Portable Hd Cvi Test Monitor For Cctv Camera Testing
Specifications
Brand Name :
WINBO
Model Number :
SAV-IPC1800 PLUS
Certification :
CE,ROHS
Place of Origin :
CHINA
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000PCS Per Month
Delivery Time :
5-8 working days
Packaging Details :
Neutral Factory Box
Screen :
4 inch IPS touch screen, 800*480 resolutions
Video Compression :
H.265
Resolution :
MAX 4K
HDMI :
Support
PoE :
Support
Wifi :
Support
Battery :
Built-in 7.4V Lithium polymer battery ,5400mAh
TV System :
PAL/NTSC
Description

4K H.265 HD CCTV Tester Support IP CVBS CVI TVI AHD Camera Testing

Features

  • 8MP TVI/4MP CVI/5MP AHD/4K H.265 IP /CVBS
  • H.265/H.264, 4K video display via mainstream
  • Dahua, Hikvision, Axis etc ONVIF camera test
  • Rapid ONVIF, auto view video and create testing report
  • DC12V 3A, DC48V PoE power output
  • Built in WIFI, create WIFI hotspot
  • Innovative coaxial HD focus, video signal quality test
  • Wrist design, portable and easier to carry
  • 10/100/100M Ethernet, network state and traffic display

Specification

LCD Item series SAV-IPC1800ADH Plus

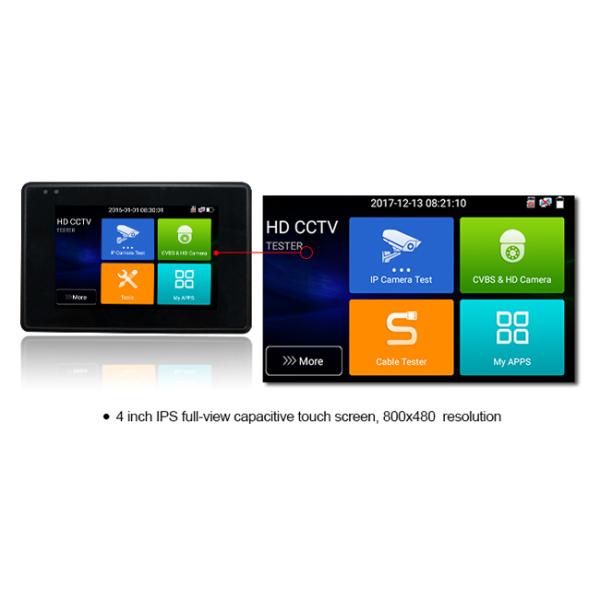

Display New 4 inch IPS touch screen , 800*480 resolution
Video Mode CVBS 1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
IP camera test IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
4K/H.265/H.264 Rapid Video Auto view the video, create testing report
Hik test tool pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool Dahua camera test, modify the username, password and IP parameters
Coaxial HD test 8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu
4MP CVI camera test, 2560 x 1440P 25/30 FPS, UTC control d call OSD menu
5MP AHD test, 2560x1944P 12.5F/20F, UTC control d call OSD menu
Zoom Image 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back
12V/3A power Output DC12V/3A power out, supply temporarily power for the camera
Power output PoE power output 48V PoE power output, max power 24W
Network test Link monitor,port flashing, Ping test
Audio test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Drop-down menu You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface
External power supply DC 12V 1A
Battery Built-in 7.4V Lithium polymer battery , 2400mAh
Rechargeable After charging 4~5 hours, normal working time 7 hours
Operation setting OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off 1-30 (mins)
Working Temperature -10℃---+50℃
Working Humidity 30%-90%
Dimension/Weight

126mm x 83mm x 33mm / 0.32kg

Application

  • CCTV system installation and maintenance
  • Network cabling project installation and maintenance
  • Dome camera, 4K H.265 IP camera testing
  • Video transmission channel testing
  • PTZ controller
