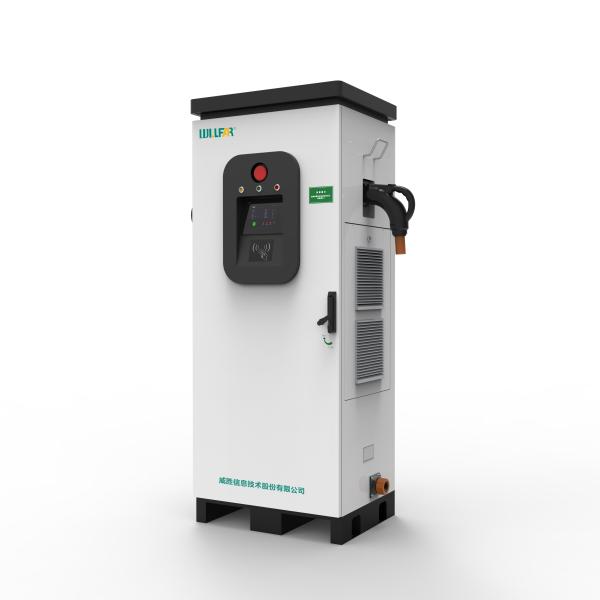

IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life
IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life
Specifications
Brand Name :
Willfar Information Techonology Co., Ltd.
Model Number :
60kW DC Charging Pile (Floor Type)
Certification :
DIN 70121, EN 61851-23 2014, EN 61851-1: 2010
Place of Origin :
Changsha Hunan
MOQ :
2
Price :
42140~47140 CNY (Negotiable, depends on the required national standard or functions)
Payment Terms :
T/T
Supply Ability :
2000 per day (based on the number of the order)
Delivery Time :
10-15 days
Packaging Details :
Carton Packaging
Color :
White/Black
Material :
PVC, Steel
Brand :
Willfar Information
No. of Charging Gun :
1 or 2 or 4
Installation Method :
Floor type
Level of Protection :
IP54
Description

60kW DC Intelligent Charging Pile (Floor Type) for Electric Vehichle Willfar Information

Company Profile


Willfar Information Technology Co., Ltd.


- Established in 2004;
- Listed on the STAR Market of the Shanghai Stock Exchange in December 2019;
- Leading supplier of meter reading (AMI) equipment and operation service;
- The first company to develop "One DCU Reading Multi-meter" solution in China;
- The first company to have large-scale application of technologies and systems like "CPU smart-card Charge and Control", "One DCU Reading Multi-meter", LoRa-based RF Communication and "District Metering Area (DMA)”

Introduction

1. 60kW DC Floor Type Intelligent Charging Pile of Willfar Information Technology Company Ltd.. is developed to meet the requirements of DIN 70121.
2. It is the isolation type DC charging pile with EU TUV Certification, which is mainly used for pure electric vehicle for quick charge.
3. The Charging Pile adopts outdoor floor type, waterproof, dustproof, anti-corrosion and environmental protection design, its protection level is IP54.
4. 60kW DC Floor Type Intelligent Charging Pile is designed and developed in accordance with EU standards, in full compliance with EN 61851-23 2014, EN 61851-1: 2010 Standards, which provides efficient, stable and convenient intelligent chargings service for electric vehicles.

IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life

Technical Parameters

Output Power Input Power Output Voltage Max. Output
Current		 Rated Output
Current
60kW 400V±15% 300~750VDC 100A 80A
75kW 400V±15% 300~750VDC 125A 100A
90kW 400V±15% 300~750VDC 150A 120A
120kW 400V±15% 300~750VDC 200A 160A
150kW 400V±15% 300~750VDC 250A 200A

Certificate

DIN 70121, EN 61851-23 2014, EN 61851-1: 2010


Features

1. Highly modularized design, easy to install and matain.
2. Rich interface, compatible with various types of vehicles.
3. Real-time collecting and displaying the charging status and the car battery information.
4. Input/output multiple protection, safe charging.
5. Multiple payment methods of credit card and APP.
6. Overall EV Charging System Solution provided , including Power Distribution System, Operation Management System and EV Charging Piles installation.

IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life

IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life

Dimensions

Power Number of Gun W(mm) D(mm) H(mm)
60/75/90 kW One/Two/Four guns 700 595 1640
120/150 kW One/Two/Four guns 700 695 1840


Situation

Large parking lot, residential area, shopping mall, hospital, transfer station, airport, pier, park, scenic spot, etc.

Cases of application

IP54 Waterproof EV DC Charging Station Corrosion Resistant Long Working Life
