Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
Specifications
Brand Name :
LBS
Model Number :
LBSS Series
Certification :
CCS
Place of Origin :
Shijiazhuang Hebei China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Pieces Per Month
Delivery Time :
after advance 15-30 Days
Packaging Details :
Export Standard Wooden Case
Product name :
Lebus Sleeve
Material :
stainless steel
Groove Type :
Lebus Grooves
Surface Treatment :
Spray Zinc Rich Primer
Brand :
LBS
Connection Type :
Welded or Bolted
Dia.of rope :
4~80mm
layers :
2~20 Layers
Use :
Assembly winch
Grooving Machining :
CNC Machining
Description

Mining Equipment Stainless Steel Wire Rope Winch Drum Lebus Sleeve

Product Introduction

Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E

The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch

Product equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment

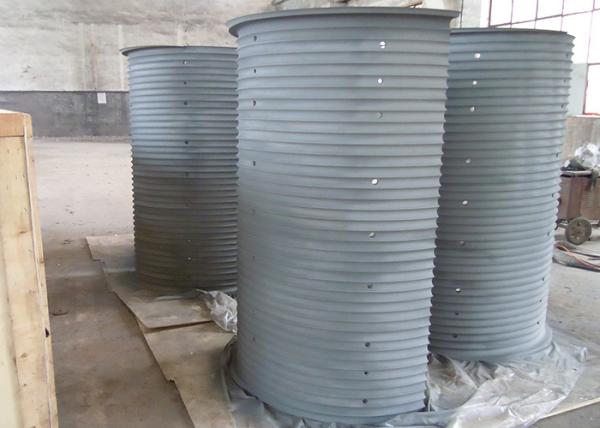

Lebus drum sleeve

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum

Product application:

1Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

4. The building machinery: Building wipe wall winch, Winding hoist, Windlass

5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.

Product structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Product advantage:

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

product information

Product name Mining Equipment Stainless Steel Wire Rope Winch Drum Lebus Sleeve
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M

Technical parameters and application:

No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)		 Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor UseStainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor UseStainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use

Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use

Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use

Stainless Steel Wire Rope Winch Lebus Sleeve Bolted Indoor Outdoor Use
