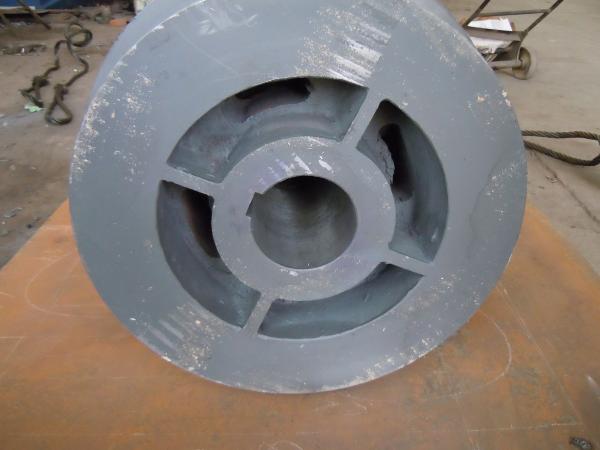

6mm wrie rope stainless steel lebus grooved cable winch drum

Drum is one of the important parts of lifting machinery, used to wind wire rope in lifting mechanism or traction mechanism.By transferring the driving force provided by the hydraulic or electric drive device to the wire rope, the rotary motion of the drive device is transformed into the linear motion required.

Range of application

According to the current situation of double folding rope groove (libas) drum and winch produced by our factory, it has been successfully applied in the following industries: 1. Oil industry: oil drilling rig, oil well machine, oil workover machine, oil truck and other winch. (including rope groove plate two half, integral; Ribas rope groove plate, Ribas rope groove barrel).2. Crane. 4. Construction machinery: rotary digging drill, pile machine, tower crane. 5. Marine machinery: Marine drilling platform crane, ship crane, crane, winch.

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.

Successful cases

our production of double wire groove tube, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the

hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the

company has formed a mature and stable, serialized product production mode.

Enterprises adhering to the "quality first, customer first" purpose, to the pursuit of excellence, endless as the goal, wholeheartedly for the user service.
