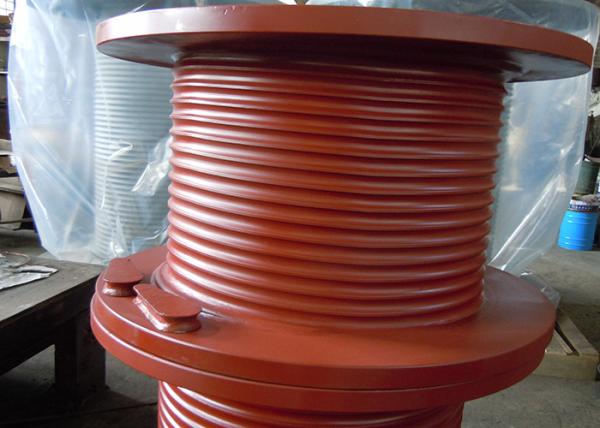

Electric Lebus Grooved Four Drums Cable Winch Drum For Lifting Object

multigang Drum Winch​ Description

Drum is one of the important parts of lifting machinery, used to wind wire rope in lifting mechanism or traction mechanism.By transferring the driving force provided by the hydraulic or electric drive device to the wire rope, the rotary motion of the drive device is transformed into the linear motion required.

Drum Classification

1. According to the number of winding layers:

1) Single winding: Only 1 layer of wire rope is wound on the drum, spiral groove is usually cut on the drum surface.

2) Double winding: The drum is wound with 2 layers of wire rope, spiral grooves or lebus grooves can be used.

3) Multi-winding:Multilayer wire rope winding on the drum, used for particularly large lifting height or compact mechanism occasions, the surface of the drum cutting lebus grooves.

2. According to the processing method:

1) Casting Drum:The casting material is usually cast steel or cast iron.

2) Welding Drum:The drum core is made of seamless pipe or rolled with steel plate, welding flange and drum core, and eliminating welding stress before machining.

3. According to the number of drum segmentation

1) Double winding:Two wire ropes can be wrapped around a drum.The rope can be wound in the same direction or in the opposite direction

2) Multi-winding:The surface of a drum is divided into several drums by baffles, each of which can be used separately for winding rope.

Four drum hoist, four hook hoist. Four wire ropes are fixed on a drum, respectively, from the drum, from the bottom of the drum, when the drum rotates, one lifting container up, the other container down.

Product information

Drawing dimensions

Drum features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

• Each Layer Laps: 20.5 laps

• Layer: 5 Layer

• Rope Groove Type: LEBUS Rope Groove

• Number Of Ropes: Two
