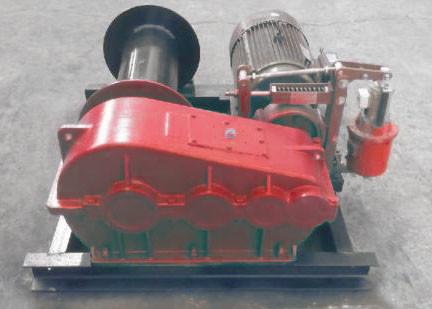

Smooth Electric Winch Machine With Spooling Drun Or Smooth Drum
Smooth Electric Winch Machine With Spooling Drun Or Smooth Drum
Specifications
Brand Name :
LBS
Place of Origin :
Hebei，China
MOQ :
1 set
Delivery Time :
20days after order
Packaging Details :
wooden case
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Product feature:

product name:electric smooth winch
other name:spooling winch /LBS winch reel
Drum design:smooth
Rope capacity:100-6000mm
Rope diameter:3-199mm
Parameter:designed by your application
Model Frirst layer Pull force(T) Drum bottom diameter Layer Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSOF3-10 1 7-12 305 4 170 15 XH2-420 D51
LBSOF3-20 2 7-28 380 4 180 20 XH3-900 D240 101
LBSOF3-30 3 6-25 470 4 240 24 XH5-1800 D240101
LBSOF3-40 4 10-23 470 4 270 28 XH6-2000 D240 101
LBS0F3-50 5 10-25 600 4 300 30 XH6-3000 D240101
LBSOF3-10 10 15-30 640 8 500 38 XH7-4300 D240101
If the smooth drum worn out maintain:
If you using the snooth drum winch before for a sometime ,you will find that you want to chage the rope type or the capacity or some usage working function like that ,now you only want to buy a LBS groove sleeve installing on the smooth drum instead of to chage the whole winch .That is convinent and save the time and money for you .Do you get the tip?
product advantage:
1. Top quality with competitive price.
2. Compact structure and reasonable design
3. Safe and reliable function.
4. Highly efficient, constant operating torque motor.
5. Smooth running over the entire speed range.
6. Mechanical transmission device, easy to use, safe and reliable
Custom-made (according to actual )

Product structure:
1. The winches with spooling device can realize automatic rope arrangement.
2. The winch spooling device (rope arranging device) adopts the principle of double screw to drive the rope wheel to move back and forth,
3. The utility model is composed of six parts: power output part, gearbox, clutch, groove sleeve part, rope supporting part and base.
4. Automatic rope-arrangement transmission principle: winch drum - transmission - groove sleeve rotation - rope wheel reciprocating movement.
5. Do not need to change any part of the winch during installation, just installed in the outer gear winch motor side

Product application:
The winch is widely used in boat, port, workshop, warehouse, construction and many kinds producing-line, so is necessary equipment for lifting goods, raising labor efficiency, improving working conditions.
Company profile​:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
