Specifications
Brand Name :
LBS
Model Number :
LBSOF
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Place of Origin :
Hebei，China
MOQ :
1 set
Price :
USD 10000,
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15Days after payment
Packaging Details :
Wooden case
Sling :
Wire
Rope capacity :
10-99mm
Rope diameter :
3-199mm
Drum design :
LBS groove
Product condition :
New as order
Description

Product name:

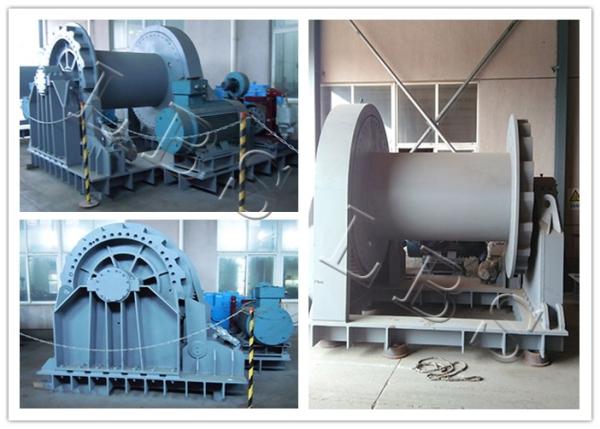

Efficient electric winch in offshore platform winch for oil exploitation and exploration

colour :red or require
Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove

LBS groove drum type knowledge:

The split-sleeve consists of a pair of outer shells that are bolted or welded onto the smooth drum of the windlass winch. It has two line and spiral groove in one road ,so the rope can fall in the uniform groove in the movement .That can prevent rope inter-twist problem to make the rope on -off the drum smoothly.That can save 500% rope life .Especially in the marine working ,you only can chage the LBS groove will be ok.no need cost time and money to replace the whole winch .

Features:
1. The rubber-tyred type workover rig is generally equipped with self backed derrick. It has fast running speed and high construction efficiency. It is suitable for the quick removal.
2. Double drum workover rig winch
3. Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and
reduces the problem of mechanical equipment shutdown for changing rope.
Parameters: also can be made to meet customer requirement and working condition
technical parameters
JZ05 JZ03 JZ10-2 JZ08-02 JZ02-09 JZ3-2 JZ50D
input powerkW 150 180 400 450 600 735 1100

master rotor

 Maximum Fast line tension(second floor)kN 80 120 180 210 280 275 340
diameter of the tube body x lengthmm Φ345×590 Φ356×912 Φ450×912 Φ450×912 Φ580×1012 Φ640×1237 Φ685×1138
brake drum (disc) diameter x length (thickness)mm Φ810×210 Φ970×260 Φ1070×310 Φ1070×310 Φ1168×267 Φ1168×265 Φ1600×76
For wire rope diameter mm 22 22 29 29 32 32 35
maximum speed of revolutionrpm 450 450 450 450 450 370 370
brake drum cooling way air cooling air cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling air cooling

Company profile:
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.

Ours services:
1. After-sales service provided: engineers available to service machinery overseas
2. The warranty is one year
3. Top quality with competitive price.
4. Safe and reliable function.

5. Highly efficient, constant operating torque motor.
