Groove Sleeve Hydraulic Crane Winch 3 MM - 190 MM Wire Diameter
Groove Sleeve Hydraulic Crane Winch 3 MM - 190 MM Wire Diameter
Specifications
Brand Name :
LBS
Place of Origin :
Hebei，China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Delivery Time :
30 to 40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Price :
Negotiation
Model Number :
Custom design
Port :
Tianjin China
Power Source :
hydraulic
Wire Diameter :
3 MM~190 MM
Grooving Type :
LBS Groove
Product Condition :
Fully Machined
Working Pressure :
13-13.9Mpa
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

quick review:

product name:wire rope winch

Drum type:LBS groove

usage:marine ,crane,boat ,ship ,

Fuction:lifting,pulling,hosit

Working Pressure:13~13.9Mps

Wire rope diameter:3~19mm

Sling type:cable or wire

Orignal :China(mainland)

LBS design advantage:

With LBS grooving design it is possible to calculate exactly the direction of the forces that the rope imposes on the drum because the spooling is totally controlled. This is not possible with any other spooling system.So that make the rope working in orderly and save the time and cost in the future maintain.

Product application:

Winches are widely used in conveyor tensioning device, construction machinery such as mobile cranes, crawler cranes, truck, forestry cranes, and port vessel classes such as port cranes, crane pontoons, dredgers, cranes, davits, and can be also used for large-scale lifting equipment such as oil rigs, offshore oil rigs, piling machinery rotary drilling rig, drilling rig, core drilling and hydrostatic pressure machine and so on.
Parameter can be design as customer

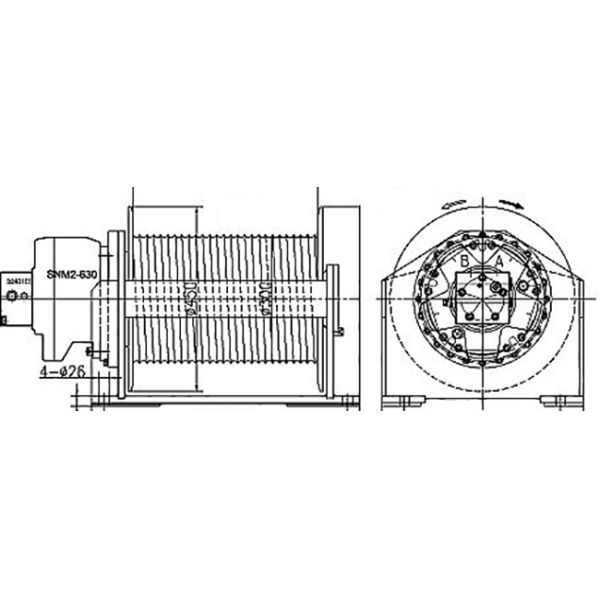

Product structure:
1. The hydraulic winch is composed of hydraulic motor, hydraulic brake, KC type planetary reducer, drum core, groove sleeve, frame and supporting shaft.
2. The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch.

3. Automatic safe fail brake

Feature:

1) Only converter and valve outside of roller. Hydraulic motor and gear housing are hidden in the winch roller, thus small axial size, compact structure and beautiful appearance.
2) High efficiency of starting and transmissing, low energy consumption, reliable operation and long service life.
3) Highly efficient, constant operating torque motor.
4) Smooth running over the entire speed range.
5) Low noise operation.
