High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum
Specifications
Brand Name :
LBS
Place of Origin :
Hebei，China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Pieces/Sets Per Month
Delivery Time :
20 to 30 work days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Price :
Negotiation
Model Number :
Custom design
Port :
Tianjin China
Grooving Type :
LBS Groove
Product Condition :
Fully Machined
Sling Type :
Wire Rope Or Cable
Application :
Ship,Port,Hoisting Machinery Industry...
Color :
as per your specification
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

High Strength Steel Wire Rope Split LBS Grooving For Offshore Crane Main Drum

Product specifications:
1) Wire rope or cable diameter (mm)
2) Drum diameter (mm)
3) Drum length (mm)
4) Rope capacity
5) Drum material
6) Maximum operating load on rope or cable
7) Type of rope entry
8) Direction of wire rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges
11) Detailed drawing of the drum

Machinable product material​:
Nylon polymer,carbon steel, alloy steel,aluminum,all kinds of high-strength steel Q345, Q420, Q460,20GrMo,40GrMo,42GrMo, etc

Technical parameters and application:

No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)		 Main drum length(mm) Application
1 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
2 13 18 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch
3 22 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch, drawworks
5 28 32 36 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,
Mooring winch

......

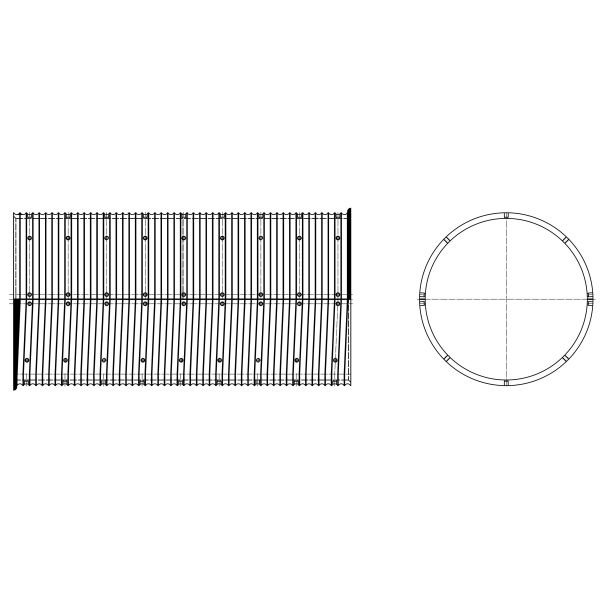

Product structure:

1. The split sleeve is composed of spiral groove and parallel groove.
2. The grooved cylinders are split in halves for easy installation either by welding or bolting to an existing drum.
3. The split sleeves can be placed over smooth and ungrooved drum — suitable for modification or replacement of drum.
4. The groove design conforms to the specified wire rope structure, diameter and length.

Product advantage:
LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc

LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

FLEET ANGLE.doc
