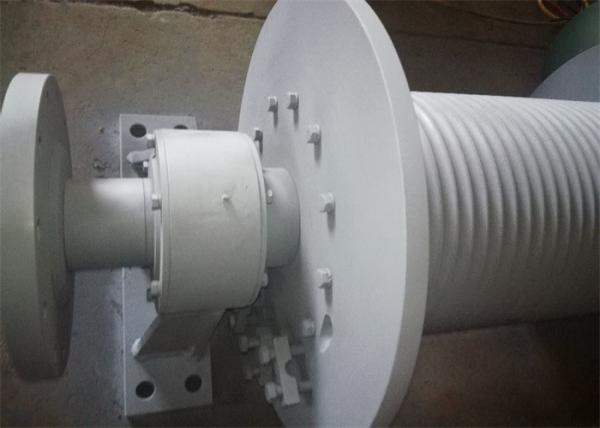

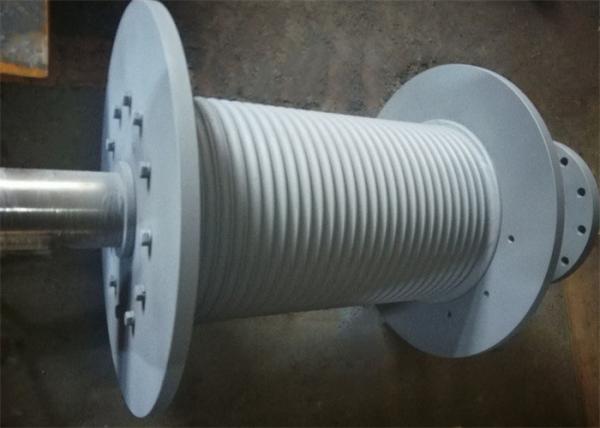

Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Specifications
Brand Name :
LBS
Model Number :
Custom design
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Place of Origin :
Hebei China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Pieces/Sets Per Month
Delivery Time :
20 to 30 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Name :
LBS grroved drum
Grooving Type :
LBS Groove
The material :
Q355B
Apply :
Towing Winch
category :
Winch Parts
Product Condition :
Fully Machined
Drum diameter :
20mm-5000mm
warranty :
1 year
structure :
smooth drum and gooved sleeves
connection type; :
welding
Description

Q355B Material LBS Grooved Drum With Shaft Block For Towing Winch

Product introduction
Product Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Product attributes
name LBS grooved drum
rotation direction lefthand or righthand
wire rope diameter 3mm-190mm
processing equipment CNC machining center
drum type LBS spooling system-based on unique geometry of the drum grooving
material alloy steel
ceertified DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR

Product application:
1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
Product advantage:

LBS grooved drum, solved the problem of wire rope spooling.
Compared with ordinary cordless groove (smooth) drum and helical rope groove drum, LBS rope groove has obvious advantages in the multi-layer wire rope spooling, LBS special groove system makes the spooling of wire rope smooth, and the load of each layer evenly distributed, extend the service life of rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.


TECHNICAL PARAMETERS PROVIDED BY CUSTOMER.doc
LBS SPECIAL GROOVE DRUM WORKING CONDITIONS.doc

The use of environment:

1. Outdoor use is allowed;

2. The altitude does not exceed 2000M;

3. Ambient temperature -30℃ ~ +65℃;

4. It is allowed to work under rain, splash and dust conditions.

Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
Q355b Material Lbs Grooved Drum With Shaft Block For Towing Winch
