Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Customization Spooling Device / Angle Compensator On Pulling Winch
Specifications
Brand Name :
LBS
Model Number :
Custom design
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Place of Origin :
Hebei，China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Delivery Time :
30 to 40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Main Port :
Tianjin China
Groove Type :
LBS groove or helical groove
Power Source :
electric
Wire Diameter :
3 MM~190 MM
Rope Capacity :
100m~10000m
Configuration :
Single drum
Colour :
green or as requirement
Material :
high strength steel
Description

Customization Spooling Device & Angle Compensator On Pulling Winch

Product Features:
1.Product name: electric winch ,pulling winch ,winch ,electric wire ropewinch ,LBS winch
2. Wirerope electric winch
3.Drum can design as the LBS or sprial or smooth
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes.
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable.

Main Parameter for pulling and lifting winch

Explosion-Proof Mining Wire Rope Electric Winch for pulling and lifting specifcations:

Model LBSP1L LBSP2 LBSP3 LBSP4 LBSP5
Line pull capacity (kg) 2000 3000 5000 8000 10000
average speed (m/min) 12 10 10 10 9
Wire rope(mm): 12.5 15.5 21.5 26 30
Reduction box Type JZQ350 JZQ350 JZQ400 JZQ500 JZQ650
Transmission ratio 23.34 31.5 23.34 31.5 40.17
Drum (mm) Diameter(mm) 273 325 406 500 550
Length 480 520 645 900 1000
Capacity(m) 150 180 250 300 450
motor Type LBS160M2-6 LBS160M2-6 LBS160L-6 LBS225M-8 LBS250M1-8
Power(kW) 7.5 7.5 11 22 30
Rotate speed(r/min) 948 948 953 720 720
Hydraulic Brake PH-200/25 PH-200/25 PH-300/45 PH-300/45 PH-300
Equipment Dimension (mm)

1060x

500x750

1600x

1100x820

1400x

1910x950

2050x1640

x1000

2470x2280

x1180
Weight(kg) 630 680 1400 3000 4000
Spooling device:

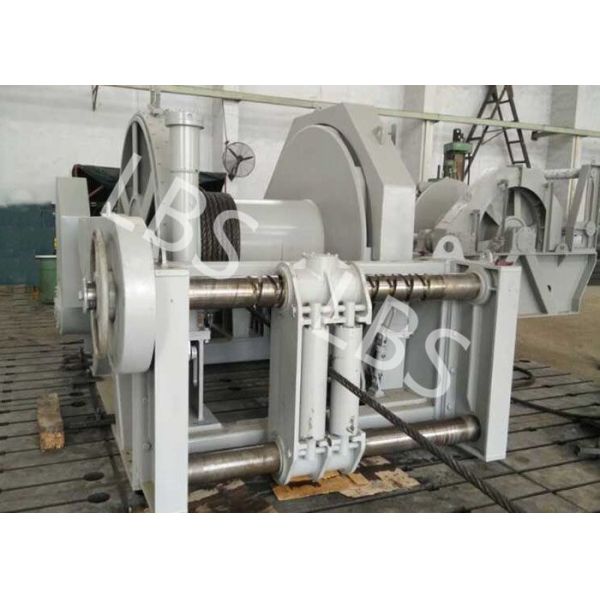

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.

Spooling Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.

Product application:
This product can be used for oil field, deck machinery, port construction, wharf construction, shipyard building and other large-scale factories.

Customization Spooling Device / Angle Compensator On Pulling Winch

FAQ:

Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?

A. EXW, FOB CIF CFR etc

Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.

Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.

Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.
