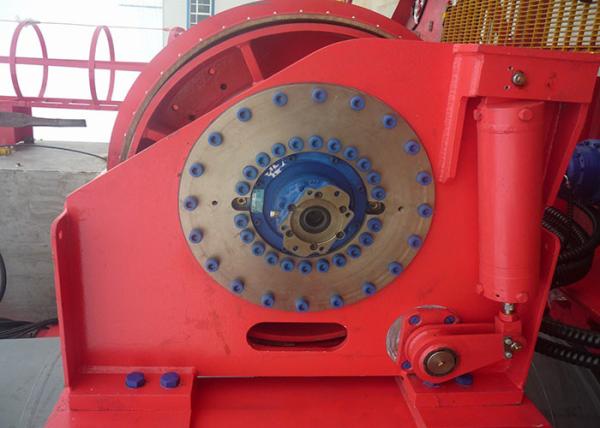

Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
Specifications
Place of Origin :
Hebei，China
Brand Name :
LBS
MOQ :
1 set
Packaging Details :
Export standard wooden case
Delivery Time :
30 to 40 working days, depends on order amount and specification
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Price :
Negotiation
Model Number :
Custom design
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Main Port :
Tianjin China
Grooving Type :
LBS Grooves
Type :
Rotary Drilling Rig Winch
Product Condition :
Fully Machined
Drilling speed :
6-38 rpm
Usage :
construction,water well,ore,coal,mining etc
Description

Our design tips :

Compared with the signal layer spooling drum and the traditional smooth drum ,the multi-layer rope grooved drums have its own obvious advantage .It can be widely used in the heavy lifting and compact working conditions .It can solve the crossing & biting problem when rolling and spooling the rode working process.

LBS double grooved winch drum advantage:

  1. Each one circle layer of the grooved drum has two parallel groove and two groove section
  2. Make the cable even smooth ;load even distribution
  3. Prevent cross &mess in cable rolling working happening
  4. Lower the cable damage, extend the cable life

Technical parameters:

Main winch

Maximum line speed m/min 65
Diameter of steel wire rope mm 28
Placement Rear-mounted
Pull force (first floor) kN 100

Impact winch

Maximum line speed m/min 70
Diameter of steel wire rope mm 26

Drilling depth: 52-68m Drilling depth
Type:drilling rig spare parts

Weight: 5 ton

rotary drilling rig Features:

1. Adopt dual-line LBS Grooves so that the load is evenly distributed between the each layer,which greatly extend the use life of steel wire and also improve construction safety. LBS drum realizes a multi-layer winding of steel wire rope, greatly improving the service life of steel wire rope

2. Hydraulic system adopts advanced load-feedback technology.Realizing hydraulic liquidity allocate to different parts according to the operation demand. Top key parts guarantee high reliability,such as pump,motor,valve,pipe and joint come from internation top brands

3. The impact winch adopts free-fall reductor. It is difficult for the drill rig to drill hard rock. At this moment, impact winch can be used to hoist and lower the impact hammer to damage the rock, and then drilling bucket can be used to pick up the slag, so as to improve the efficiency of drilling into the rock. When the drill rig is drilling into pebble bed, impact winch can be used to impact and squeeze the pebble bed in order to form a protective wall. When the drill rig is drilling into backfill soil, impact winch can be used to impact and ram the soil in order to form a dense protective wall to prevent landslides

4. The usage of telescopic chassis not only can meet the conditions of transport, but also can make the width of the complete machine reach 4.3 m during working, so it enhances machine stability and construction safety

Ours services:

1. After-sales Service Provided: Engineers available to service machinery overseas
2. The warranty is one year

application:

The product can be used for architectural engineering,mine deck machinery, port construction, wharf construction, shipyard building and other large-scale factories

Our certificates:

Hydraulic Footstep Piledriver Winch LBS Drum Offshore Winch For Rotary Drilling Rig
