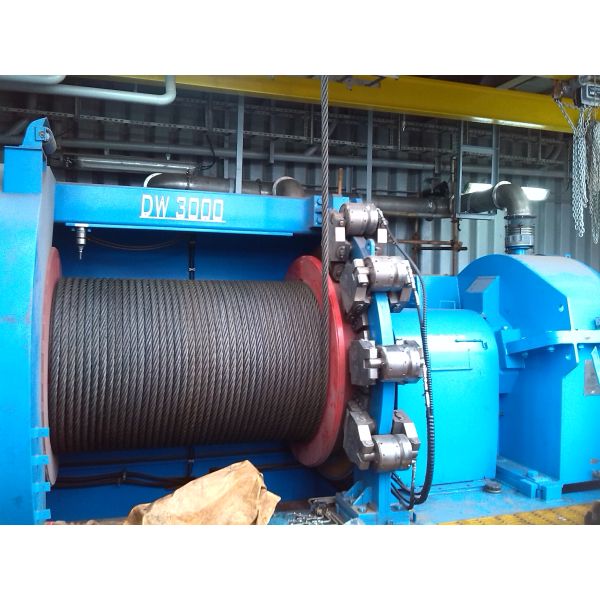

LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
LBS Grooves Offshore Winch Oil Well Drilling Rig Parts Winch With Brake Disc
Specifications
Brand Name :
LBS
Place of Origin :
Hebei，China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Delivery Time :
30 to 40 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Price :
Negotiation
Model Number :
LBSM1-10
Port :
Tianjin
Grooving Type :
LBS Grooves
brake :
Brake disc
Sling :
Wire Rope
Color :
According To Customer Demand
Application :
Well Drilling Machinery
Capacity :
1~65 ton
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Why you should choose us:

1)Own LBS groove patent by goverment

2)Have done most of successfully case in offshore, mining ,marine ,and crane areas

3)Can give more even speilized service to make the rope working ordely and tell your how to save time and cost for maintain service.

Product feature :

Product Name
hydraulic winch
Material
steel
Color
blue or customized
Standard
ISO
Brake
Hydraulic brake system
Brand
 LBS
Origin Place
China
Used
 hoist ,lifting,trawing ,pulling
Parameter Can be design as customer requirement

Our brand LBS design advantage :

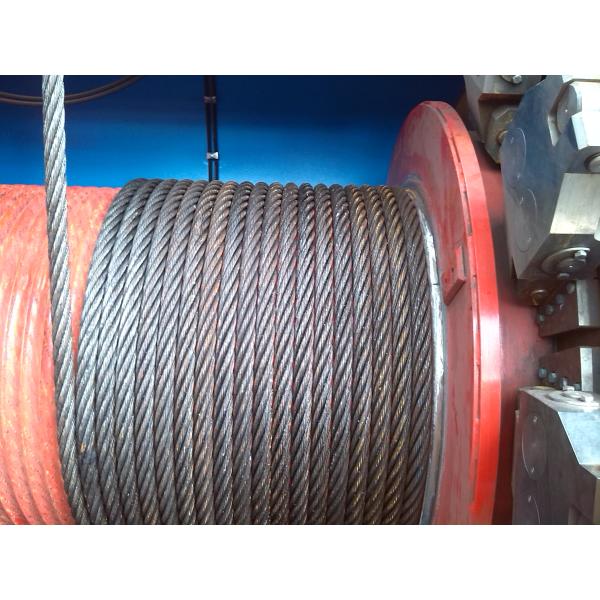

  1. Each one circle layer of the grooved drum has two parallel groove and two groove section
  2. Make the cable even smooth ;load even distribution
  3. Prevent cross &mess in cable rolling working happening
  4. Lower the cable damage, extend the cable life

Technical parameter

Model Frirst layer Pull force(LN) Rope speed(n/min) Drum bottom diameter Difference of working pressures(Mpa) Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSOF1-10 30 0-35 305 15.9 65 15 XH2-420 D51
LBSOF1-20 50 0-40 380 16.3 70 20 XH3-900 D240 101
LBSOF1-30 80 0-40 470 15.6 100 24 XH5-1800 D240101
LBSOF1-40 100 0-40 470 16 90 28 XH6-2000 D240 101
LBS0F1-50 120 0-30 600 17.3 175 30 XH6-3000 D240101
LBSOF1-60 150 0-30 640 17.8 143 38 XH7-4300 D240101
LBS OF1-70 200 0-25 660 17.8 150 40 XH8-900d240101

Useage:
Winch (drawworks) is widely used to deliver tools, hoist/descend derricks and run the drilling tools and pipe shrouds into the well during the drilling process.

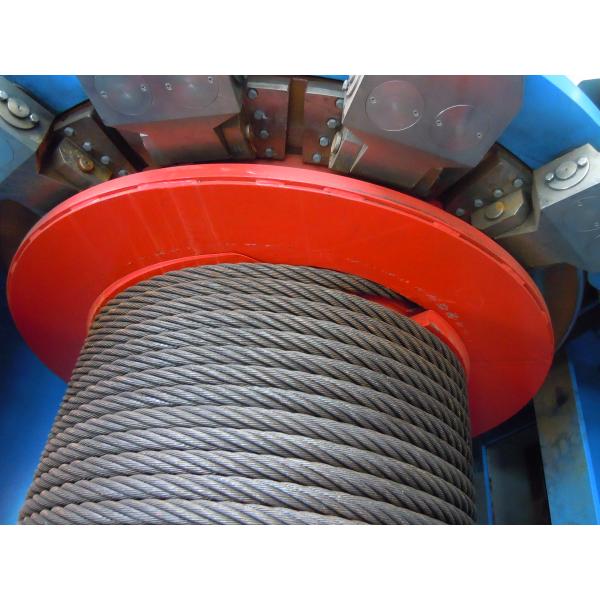

Hydraulic disc brake:
Hydraulic disc brake with brake torque capacity, braking performance and stability, flexible operation, labor saving, convenient maintenance, safe and reliable, can improve the system performance, improve workover and drilling time. Hydraulic disc brake also has high control accuracy, easy remote operation, easy to realize automatic tripping and autodriller function, and low noise, suitable for the environment sensitive areas of work.
Mechanically driven winches:
At both the high and the low speed ends of the roller, a ventilated air tube clutch is installed. The rim of a brake (or a brake disc) is subject to forced cooling with circulating water and surface medium-frequency hardening, thus featuring satisfactory wear resistance and extended service life. The main brake is of hydraulic pad or band type, and the auxiliary adopts dynamic braking or EATON products (cooled by water or air). All gear shift clutches are provided with involutes and spline teeth and adopt cylinder or pneumatic tire clutch shift structure to ensure simple, easy and reliable stage changeover. In the roller is provided with a LBS rope groove so as to achieve automatic delivery of drilling tools.
Features:
1. Our products have the advantages of compact structure, light weight, safe and easy to operate.
2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.
3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.
4. High starting& working efficiency
5. Reliable operation with little noise

Our services:

1. Engineers available to service machinery overseas.
2. Our products have one year warranty.
3. A range of accessories such as pressure rollers are available on request.

4. Except for standard winches, we’re also able to provide tailored solutions to our customers.
