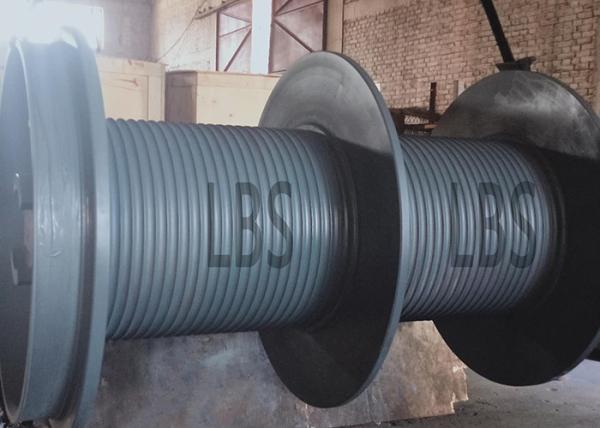

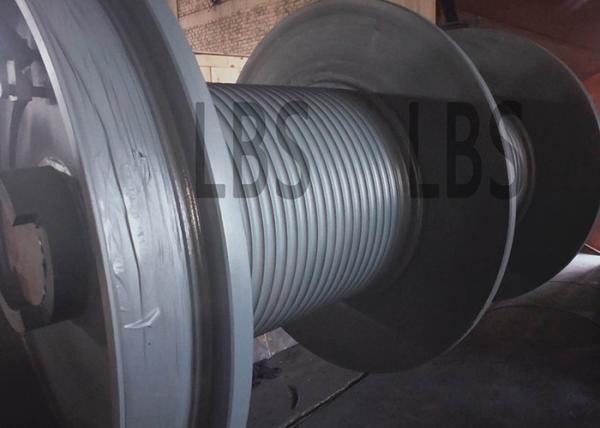

Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Galvanized Lifting Or Traction Double Grooved Winch Drum For Ship
Specifications
Brand Name :
LBS
Model Number :
LBSD
Certification :
ISO9000 CE
Place of Origin :
SHIJAIZHUANG CITY CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
3500 sets per year
Delivery Time :
according to your order
Packaging Details :
export wooden case
Material :
high strength steel
Printed :
rich-zinc primer
Design :
As your require
Grooving type :
LBS groove
Drum diameter :
850mm
Rope diameter :
14mm
Name :
winch drum for ship
rope capacity :
300m
Description

Title:Galvanized Finish Lifting or Traction Double Winch Drum for Ship

Product details:

The LBS grooving slove the multilayer spooling problems and the LBS system can be applied in various ways.

Drum diameter rope diameter width between the flanges rotation direction drum capacity
680mm 12mm 880mm left 150m
750mm 14mm 950mm right 200m
900mm 18mm 950mm left 250m
1100mm 21.5mm 1000mm right 300m

Technical parameters and application of main drum:

No: Wire diameter
(mm):		 direction Main drum diameter(mm)
 Main drum length(mm)
 application
1 13 Lefthand 430 763 The oil workover rig
2 18 Lefthand 623 1144
The oil workover rig ,Logging Winch drum
3 22 26 Lefthand,Righthand 730 1120 Drilling Rig Winch/ drawworks
4 18 22 32 Lefthand,Righthand 670 1240 hoist
5 28 32 36 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,Lifting equipment
6 26 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,Marine crane ,wharf crane

​Product application:

The LBS system can be applied in various ways. By the installation of a split sleeve onto a plain drum, by the use of a grooved barrel to which the client adds flanges or by the supply of a complete fabricated and machied drum to project requirements.

Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
Mining winch:

Dispatching winch, Prop-pulling winch,Sinking winch, etc
Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
The construction machinery: Building wipe wall winch, Winding hoist, Windlass

Product Material:

Carbon steel, alloy steel, cast steel, aluminum, all kinds of high-strength steel Q345, Q420, Q460, 15CrMo,20GrMo, 42GrMo, etc

Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...

Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...

Warranty of winch drum:

  • 1.Warranty: the quality of our winch is guaranteed for one year, in this period, if any quality problem happens with correct operation, we will send spare parts to you free of charge.
  • 2.After warranty, we will supply spare parts at cost prices to you.

Ordering instructions:
In order to give you a exact quotation, please provide the following information:

  • 1.Your lifting capacity?
  • 2.The lifting height you need? (How many meters the wire rope you want?)
  • 3.What material do you want to lift?
  • 4.pls provide us the drum parameter if possible
