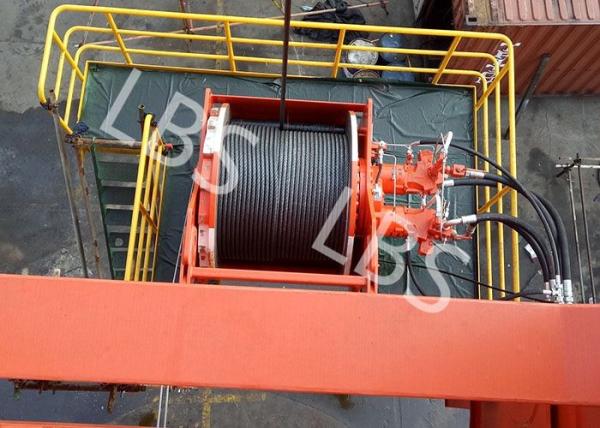

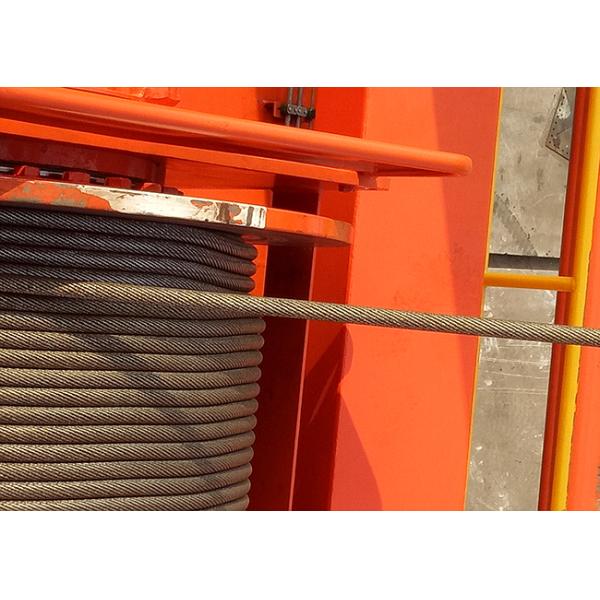

LBS Groove Offshore Tower Crane Winch Drum Hydraulic Crane Winch
LBS Groove Offshore Tower Crane Winch Drum Hydraulic Crane Winch
LBS Groove Offshore Tower Crane Winch Drum Hydraulic Crane Winch
LBS Groove Offshore Tower Crane Winch Drum Hydraulic Crane Winch
Specifications
Place of Origin :
Hebei，China
Brand Name :
LBS
MOQ :
1 set
Packaging Details :
Export standard wooden case
Delivery Time :
30 to 40 working days, depends on order amount and specification
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Price :
Negotiation
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Port :
Tianjin China
Sling Type :
Wire Rope
Grooving Type :
LBS Groove
Wire Diameter :
3 MM~190 MM
Rope Capacity :
100m~10000m
Power Source :
Hydraulic
Description

Knowage tips for LBS winch design :

What is the LBS offshore ?or LBS is what :LBS design is our patent drum design.It have obvious advantage than traditional spiral and smooth winch drum .It have two paralle an two sprial in one layer ,that can make the rope arange orderly and even smooth.

so the bebus groove used more an more popular today .we have more successful case in china ,as the offshore platform ,oi drilling,cleaning wall equipment,and crane pulling ...and so on .so you give me the winch size or the usage application ,we can as your rope size and rope capicty and other paramter to design and drawing it for you .

Product quick look:

Product name electric crane tower winch
Drum design LBS (or spiral or smooth)
Rope capacity 100-10000mm
Rope diameter 3-199mm
Colour orange or customer
Pull force 3-50KN
First layer rope speed 0-50m/min

Parameter of our some type for reference:

all of the winch can be single design if you give me your usage fuction or the rope parameter.

Model Frirst layer Pull force(T) Drum bottom diameter Layer Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSLC3-10 1 7-12 305 4 170 15 XH2-420 D51
LBSLC3-20 2 7-28 380 4 180 20 XH3-900 D240 101
LBSLC3-30 3 6-25 470 4 240 24 XH5-1800 D240101
LBSLC3-40 4 10-23 470 4 270 28 XH6-2000 D240 101
LBSLC3-50 9 10-30 900 10 800 50 XH6-3000 D240101
LBSLC3-10 20 15-60 1200 18 2000 55 XH7-4300 D240101

Product structure:

Hydraulic winch is made up of hydraulic motor, multi-disc friction brake, planet gearbox, spool and bracket as a whole. There are shuttle valve and counter balance valve keep the load from dropping, and maintain loading and unloading stable.and which can be optional according to customer needs.

Product application:

Winches are widely used in conveyor tensioning device, construction machinery such as mobile cranes, crawler cranes, truck, forestry cranes, and port vessel classes such as port cranes, crane pontoons, dredgers, cranes, davits, and can be also used for large-scale lifting equipment such as oil rigs, offshore oil rigs, piling machinery rotary drilling rig, drilling rig, core drilling and hydrostatic pressure machine and so on.

Feature:

1) Only converter and valve outside of roller. Hydraulic motor and gear housing are hidden in the winch roller, thus small axial size, compact structure and beautiful appearance.

2) High efficiency of starting and transmissing, low energy consumption, reliable operation and long service life.

3) Highly efficient, constant operating torque motor.

4) Smooth running over the entire speed range.

5) Low noise operation.
