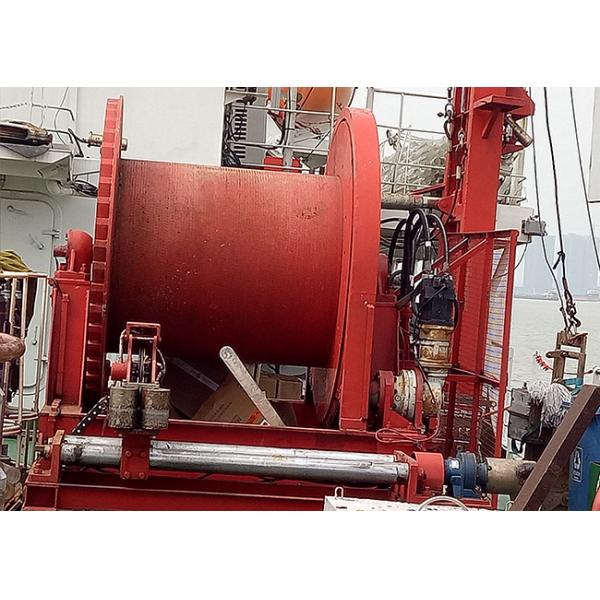

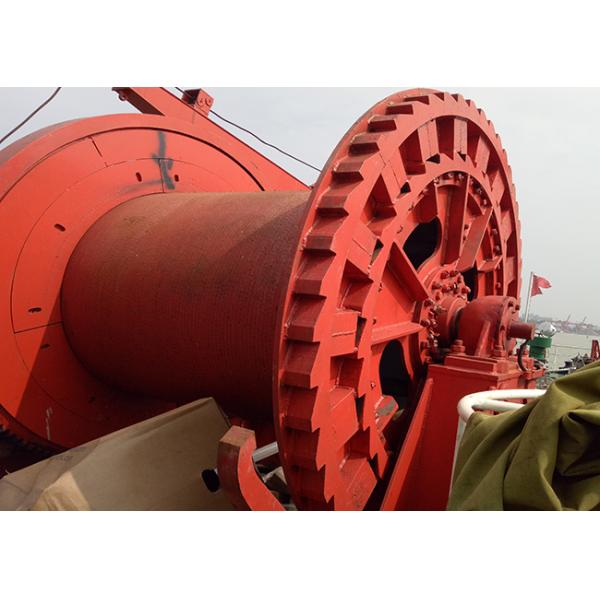

High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
High Efficient 20 Ton Anchor Marine Electric Winch With Spooling Device
Specifications
Place of Origin :
Hebei，China
Brand Name :
LBS
MOQ :
1 set
Packaging Details :
Export standard wooden case
Delivery Time :
30 to 40 working days, depends on order amount and specification
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Price :
Negotiation
main Port :
Tianjin China
Sling Type :
Wire Rope
Wire Diameter :
3 MM~190 MM
Rope Capacity :
100m~10000m
Grooving Type :
LBS Groove
Product Condition :
Fully Machined
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Marine Winch specifications:

1) Drive: Electric / hydraulic

2) Configuration: Single or double drum with / without warping end

3) Wire drum: Steel wire rope LBS groove drum

4) Rated pull (1st layer): 10 to 2500KN

5) Brake: Holding 1.5 times the rated pull (static, first layer)

6) Paint: As per your specifications

7) Spooling device: Rope arranging device for reciprocating screw

8)LBS design for whole winch can extend your product life about 500%

9)parameter :below reference also can be engineered by your usage function

Model Rated load
(KN)		 Rated Speed
(m/min)		 Rope Capacity(m) Rope Dia(mm) Motor Power (kw) Dimension(mm) Weight(KG)
JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JZ1.6 16 24 150 12.5 G132S-4 5.5 945*996*570 500
JZ2 20 24 150 13 G132M-4 7.5 945*996*570 550
JZ3.2 32 25 290 15.5 G180L-6 15 1325*1335*840 1011
JZ3.2B 32 30 250 15.5 JZ200L-6 22 1900*1738*985 1500
JZ5 50 30 300 21.5 JZ225M-6 30 1900*1620*985 2050
JZ5B 50 25 210 21.5 LBSM-8 22 2250*2500*1300 2264
JZ8 80 25 160 26 LBS280S-8 45 1533*1985*1045 3000
JZ10 100 30 300 30 LBS315S-8 55 2250*2500*1300 5100

Product features

1. Top quality with competitive price.

2. Compact structure and reasonable design

3. Safe and reliable function.

4. Highly efficient, constant operating torque motor.

5. Smooth running over the entire speed range.

6. Reliable operation with little noise.

Company services​

1. Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used LBS grooved drum)

2. One year of warranty

3. The engineer can provide overseas service

4. Quick and responsible after-sales service

5. Very competitive price

Company profile

Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
