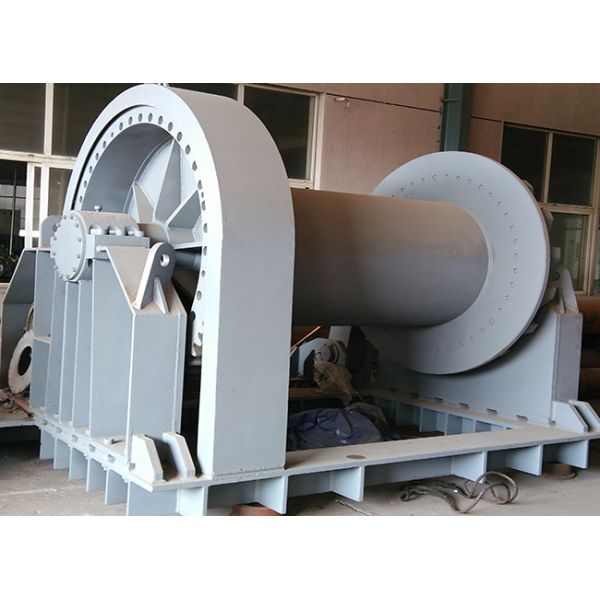

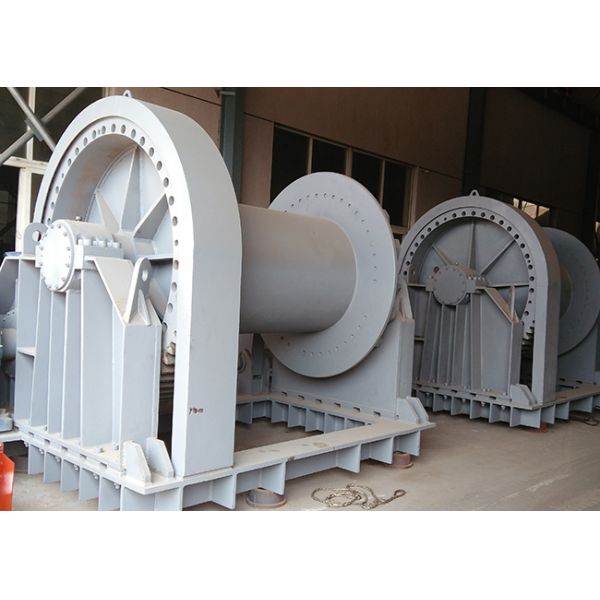

Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Shipyard Low Noise Heavy Industry Windlass Winch With Smooth Drum
Specifications
Place of Origin :
Hebei，China
Brand Name :
LBS
MOQ :
1 set
Packaging Details :
Export standard wooden case
Delivery Time :
30 to 40 working days, depends on order amount and specification
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Price :
Negotiation
Main Port :
Tianjin China
Power Source :
Electric
Drum Type :
Smooth Drum With LBS Sleeves
Sling Type :
Wire Rope
Application :
Oil, Marine And Geological Exploration
Product Color :
According To Customer Demand
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Brief view :

Product name: windlass winch

Durm type :smooth

Sling type:wire

Power:electric

Application:Oil, Marine And Geological Exploration

Function:pulling,pushing ,lifting ,hoisting ,fixed

Feature:low noise

Parts of model as follow:can design as customer

Name Shipyard Windlass Winch
Maximum Reel Weight: Approx 65Ton
Reel speed: Approx 1-6 rpm
Maximum Reel Width: 2.27m
Minimum Reel Windth: 1.17m
Maximum Reel Diameter: 3.0m (Flange Diameter)
Overall Dimensions of machine: L4.68m x W2.3m x H3.2m
Pedestal Dimensions: L4.83m x W2.5m
Tension (back force) on cable: Approx 100KN
Tension (back force) on cable at 1st layer:

Approx 50KN

Drum type:

The split-sleeve consists of a pair of outer shells that are bolted or welded onto the smooth drum of the windlass winch.

Shipyard Windlass Winch​

1. Single or Multi-drum Type

4. Certificate Approval: ABS BV CCS DNV GL LR KR NK RINA RS etc.

5. With drag brake system

6. Configuration: horizontal arrangement

7. Rope speed: complying with ISO requirements

Product features

1. Top quality with competitive price.

2. Compact structure and reasonable design

3. Safe and reliable function.

4. Highly efficient, constant operating torque motor.

5. Smooth running over the entire speed range.

6. Reliable operation with little noise.

Our services

1. One Year Quality Assurance

2. Free Components for replacement within warranty period

3. Professional solution provider

4. Free techinical support at anytime

5. Marine winch,electric anchor winch, hand winch ,hydraulic winches ,windlass,capstan and outfitting can be designed
