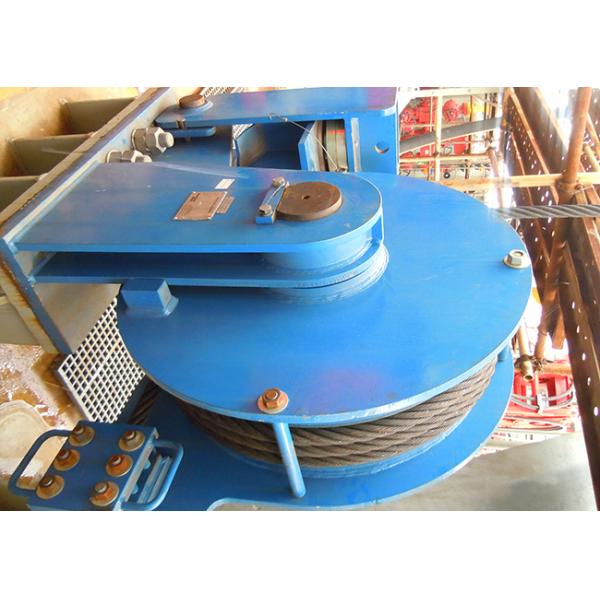

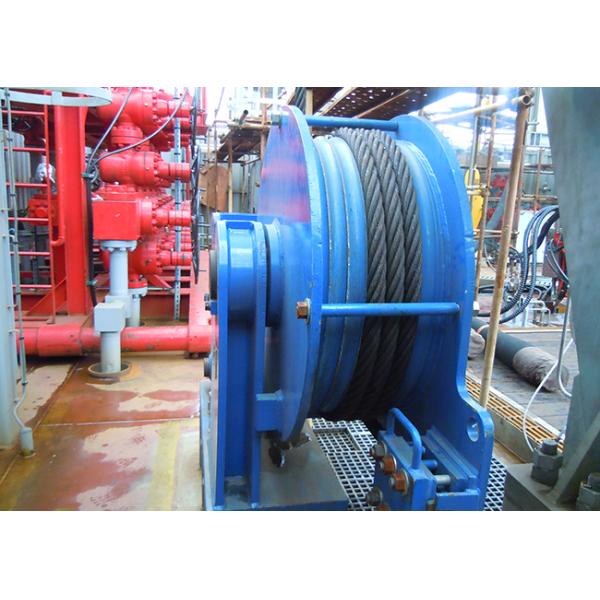

Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Steel LBS Grooving Drum Windlass Winch Auxiliary Traction Parts
Specifications
Place of Origin :
Hebei，China
Brand Name :
LBS
MOQ :
1 set
Packaging Details :
Export standard wooden case
Delivery Time :
30 to 40 working days, depends on order amount and specification
Payment Terms :
L/C, T/T
Supply Ability :
500 Pieces/Sets Per Month
Price :
Negotiation
Port :
Tianjin China
Sling Type :
Wire Rope
Grooving Type :
LBS Groove
materiall :
steel
Product Condition :
Fully Machined
Applications :
rig winch, offshore winch, lifting winch...
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Specificaiton for look

Place of Origin:Shijiazhuang, China (Mainland)

Brand Name:windlass/anchor winch

Model Number:WJZ Winch

Power Source:Electric

Application:Boat,ship or offshore marine

Capacity:5-100KN

Rated speed (m/min):22

Standard rope length (m):190

Rope diameter (mm):77

Motor's power (kw):3

Packaging & Delivery: wooden case when 30days after payment

Main Parameter

Type

Capacity

(KN)

Rated speed

(m/min)

Standard rope length

(m)

Rope diameter

(mm)

Motor’s power

(kw)
WJZ0.5 4 22 200 Φ7.5 2.6
WJZ1 8 22 80 Φ9 2.5
WJZ1.6 16 24 150 Φ12.5 5.5
WJZ2 19 23 140 Φ13 7.5
WJZ3.2 32 25 290 Φ15.5 15
WJZ3.2B 32 30 250 Φ15.5 22
WJZ6 45 25 280 Φ20 26
WJZ6B 50 25 210 Φ21.5 22

LBS groove drum advantage

LBS grooved drum, solved the problem of bitten rope in wire rope winding process. LBS groove
system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.

Product application:

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

Ours services

1. Our factory can be customized design electric anchor winch,hydraulic anchor winch,diesel anchor winch

2. Anchor winch according to different clients' specific requirements

3. All anchor winch have passed BV,CE,CCS,ABS,DNV,RINA,CUTR,etc.

4. Highly efficient, constant operating torque motor.
5. After-sales Service Provided: Engineers available to service machinery overseas
6. The warranty is one year
7. Top quality with competitive price
8. The engineer can provide overseas service
9. Quick and responsible after-sales service
