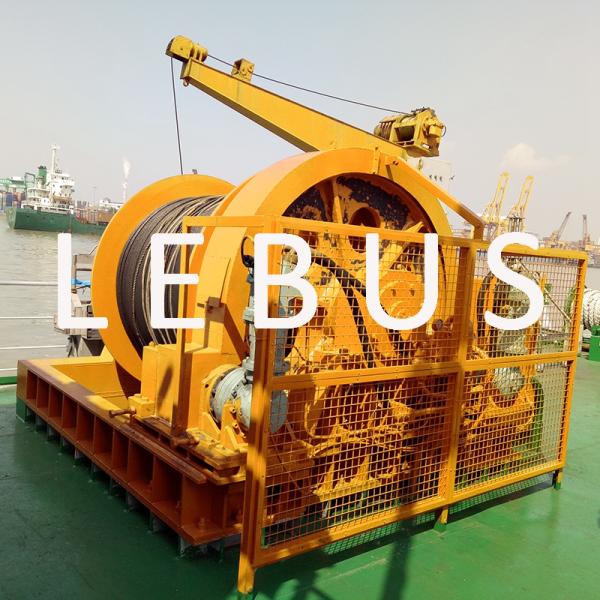

Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Hydraulic Marine Offshore Platform Or Drilling Rig Boat Towing Winch
Specifications
Brand Name :
LBS
Model Number :
LBSH
Place of Origin :
Hebei，China
MOQ :
1 set
Price :
USD1000-10000 Per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Sets Per Month
Delivery Time :
15Days After Payment
Packaging Details :
Wooden Case
Sling type :
wire
Rope Capacity :
100-100000M
Rope Diameter :
3-199mm
Load capacity :
0.5-200MT
Condition :
New
Speed :
8-30 m/min
Certification :
DNV, ABS, GL, LR, BV, CCS, RINA, NK,
Description

Product feature:

Product name: Hydraulic Machine towing winch

other name:boat towing windlass

Drum design:LBS grooved

Sling type:cable or wire

power: electirc /hydraulic /or pointed

colour :yellow or customer

Rope: 100-1000mm

Rope diameter:3-199mm

Parameter:(for reference)

Item Specification & Technical Parameter
Model LBSH-20 *18 LBSH-30* LBSH-50* 12 LBSH-100* 8
Rated Pulling force 20KN 30KN 50KN 100KN

The maximum

speed
of wire rope

 15m/min 13m/min 10m/min 8m/min
Rated Power 5.8kw 13kw 14-17kw 35kw

Rated Intake

Air Pressure

 0.6Mpa 0.6Mpa 0.6Mpa 0.6Mpa

Rated Air

consumption

 5m3/min 10m3/min 12.7m3/min 24m3/min
Rope capacity 100m 200m/400m 200m/400m 200m

The diameter of

Wire Rope

 12mm 16mm 18.5mm 24mm
Overall size 560* 380* 480mm 1200* 600* 600mm 1350* 550* 570mm 1500* 720* 920mm
Weight 200kg 500kg 560kg 1100kg

LBS groove drum advantage
LBS grooved drum compared with the traditional smooth or sprial groove have its advantage feature .Each layer have the line or spiral two type groove only have on cross-point in one movement ,so the rope can through it on -off the drum smoothly which can drop betweeb the two groove . The rope in that conditon can even distrabution and extend rope life about 500% and working can be in safe working conditon .That design save lots money and time for the marine working .

Product composition:

barking ,power device,LBS groove drum , frame ,closed planetary gear.

Product application
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , oil Logging winch, etc
3. Crane machinery: Lifting machine, Tower crane machinery, Gantry crane,Crawler crane winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

Our factory advantage:

If you winch is worn out or face the rope arragment mess problem ,pls conatct us .We can make a LBS groove drum or sleeve for your winch or install a diamond lever-wind device to solve the rope inter-twist problem .

Company services​
1. Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used LBS grooved drum)
2. One year of warranty
3. The engineer can provide overseas service
4. Quick and responsible after-sales service

5. Very competitive price

Company profile
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
